2 - INTRODUCING THE PRODUCT

2.1 - Description of the control unit

Control unit for a motor in alternatine current with torque adjuster, output
contact for limit switch or open/close bottons, selectable, output contact
for photo dispositive, stop button, step-by-step, with radio modular and
8
9
5
6
7

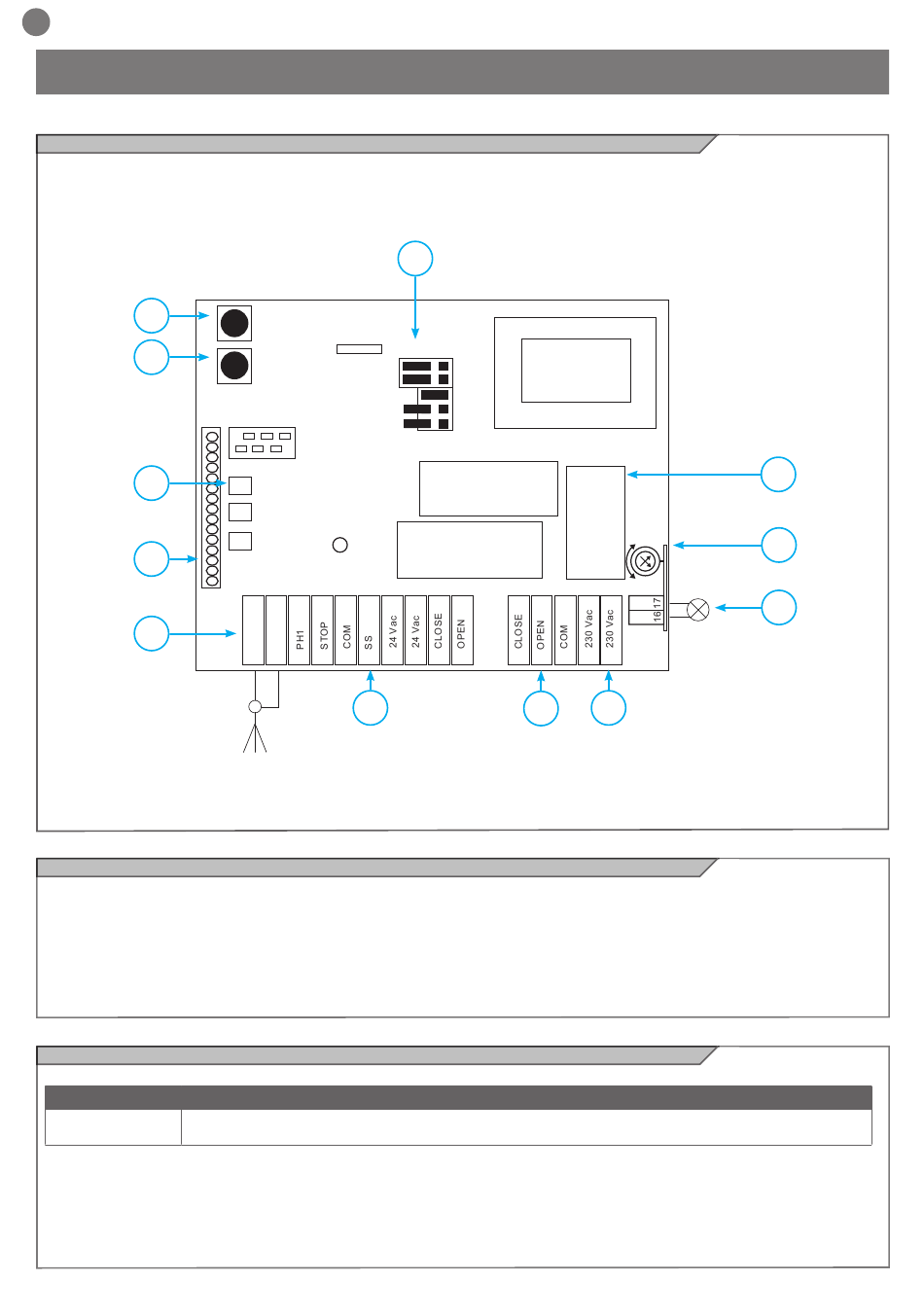

2.2 - Description of the connections

1- Motor power supply connections
2- 230 Vac power supply connections (50-60 Hz)
3- Connection to flashing light
4- 24 Vdc power supply connection to controls and safety devices
5- RED programming LEDs
6- Radio module

2.3 - Models and technical characteristics

CODE DESCRIPTION
900CT1RD 230 Vac control unit for one motor for rolling shutter or sliding gate with electric clutch, limit switch and receiver
14
10
SELECTION
MODE
MEMORY
A.R
W.T
CD.
1
2 3 5 6
7
4 8
4
memory extractable. This control unit has been designed for the auto-
mation of rolling shutters, shutters and sliding doors.
J1
J2
J3
J4
J5
FUSE
6,3 A
11 12 13 14 15
9 10
2
1
7- Antenna connector
8- SELECTION button
9- MODE button
10- Jumpers functions
11- 6.3 A rapid fuse protecting the line
12- Trimmer adjustment of torque
11
12
MIN
