Page 1

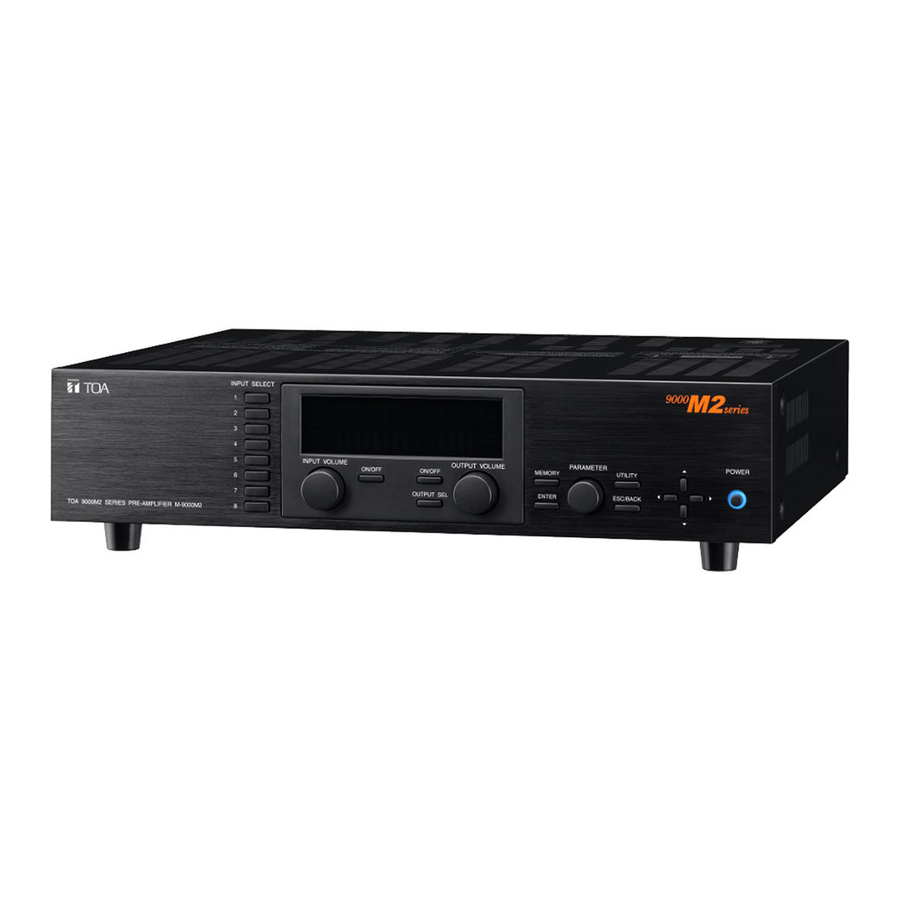

9000M2 Series Quick Start Guide - Auto-mixing - Conference/Courtroom Using Simultaneous Mode 1/33...
Page 2
System Overview This application is composed of a Main room and an AUX conference room. MIC 1, used by a chairperson every time, has the priority over the other inputs. Audio source is always output to Main Room Zone 1 , Main Room Zone2 , Aux Conference Room, Webcast, phone and recording device.
Page 3
Output 1 (A-9120DHM2): Main Room Zone 1 Output 2 (A-9120DHM2): Main Room Zone 2 Output 3 (T-001T - P-912MK2): Aux Conference Room 1 Output 4 (T-001T): Webcast Output 5 (T-001T): Phone Output 6 (T-001T): Recording device Remote out (RC-001T) : ZM-9013[0] >>...
Page 5
1. The following is the initial setting wizard screen. . Click “ New File” on the Start Menu window. 5/33...
Page 6
3. Set module configurations. 4. Select the modules to be inserted into the amplifier’s slots from the pull-down menu in the Module field. 6/33...
Page 7
5. Select a module for each slot. At the same time, please name each channel (ex. “MIC 1”). Main Frame Name 1 >> ”ZONE1” Name 2 >> ”ZONE2” Slot #1 >> D-001 Name 1 >> “MIC1” Name 2 >> “MIC2” Slot #2 >>...
Page 8
7. The following window is for setting devices connected to REMOTE VOLUME terminal on 9000M2 rear panel . If you d not us e ZM-9001, ZM-9002 o r ZM -9003, select “NONE” from the combo box “TYPE”. 8. In this “Auto-mixing “application, select NONE for both REMOTE VOL1 and REMOTE VOL 8/33...
Page 10
11. Select the number of Remote Controllers you will use. In this application, select “5”. 10/33...
Page 11
12. Select “ZM-9013” from the combo box “MODEL” for ADDRESS0, “ZM-9012” for ADDRESS 1 to 5. If “CROSS POINT CHANGE” function will be assigned to a button of Remote Controller, select either type of “SOURCE SELECTION MODE”. EXCLUSIVE MODE: A single cross point can be turned ON for each output channel. SIMULTANEOUS MODE: Multiple cross points can be arbitrarily turned ON.
Page 12
13. Click “FINISH” button. That means the initial setting is completed. 12/33...
Page 13
14. Programming Software is opened. 15. Click “Setting” on the menu bar and select “Paging Priority Setting”. 13/33...
Page 15
17. Assign priority level to channels. Ch.1 >> PRIORITY 1 Ch.2 >> PRIORITY 2 Ch.7 >> PRIORITY 2 18. Setting of Assignment for ZM-9013 and ZM-9012s. Click “Setting” on the menu bar and select “Remote Setting Wizard”. 15/33...
Page 16
19. Remote Controller Setting Wizard is opened. Just click “NEXT” button. 0. Setting of the first ZM-9013[0]. Here, we assign a function to each button. 16/33...
Page 17
21. Button #01 is used as switch of input 3 (Microphone 3). Assign “CHANGE CROSS POINT” function to #01 and click the point circled in red. 22. Check the boxes as follows and click “OK”. *INPUT Ch.1, 2 and 7 have priority over the other inputs. Their cross points are set by “Paging Setting”.
Page 18
23. As well as #01 button, assign “CHANGE CROSS POINT” function to #02 - #05 and check the boxes as follows. [Button #02] [Button #03] 18/33...
Page 20
24. No assignment to # 06 - 08. Click “NEXT”. 25. Setting of the first ZM-9012[1]. 20/33...
Page 21
26. The first ZM-9012[1] controls the output volume of Main Room. Check the appropriate points as follows and click “NEXT” button. 7. The second ZM-9012[2] controls the output volume of Main Room Zone 1. Check the appropriate points as follows and clic k ”NEXT”...
Page 22
28. The third ZM-9012[3] controls the output volume of Main Room Zone 2. Check the appropriate points as follows and click “NEXT” button. 22/33...
Page 23
29. The third ZM-9012[4] controls the output volume of Aux Conference Room. Check the appropriate points as follows and click “FINISH” button. 23/33...
Page 24
30. Move on to “Paging” Setting. Click “Paging” button. 24/33...
Page 25
31. The Paging setting screen appears. 32. Select “FIFO” for the same priority operation setting. 25/33...
Page 26
33. Setting of INPUT Ch. 1 (=MIC 1). Select “IN1” from “INPUT” selection pull-down menu and “VOX” from “TRIGGER” pull-down menu. 34. Check all output channel boxes. 35. Setting of INPUT Ch.2 (=MIC 2). Select “IN2” from “INPUT” pull-down menu and “VOX” from “TRIGGER”...
Page 27
36. Move on to Setting of INPUT Ch. 7 (=PHONE). Select “IN7” from “INPUT” pull-down menu and “VOX” from “TRIGGER” pull-down menu. Check all output channel boxes. 7. Click “X POINTS” area. 27/33...
Page 28
38. Initial X points when power is switched on can be set here. Remove all checks as follows. 39. Freely adjust the volume, Compressor, Equalizer setting. < Sample screen of Input VOL> 28/33...
Page 29
<Sample screen of Output EQ setting> 29/33...
Page 30
40. Save all the above settings as Scene 1. 30/33...
Page 31
41. Click ”Communication” on menu bar and elect “Serial Setting Wizard”. 42. Check the connection between PC and 9000M2 unit and click the “NEXT” button. 43. Confirm and select the baud rate of 9000M2 unit and click the “NEXT” button. 31/33...
Page 32
44. Confirm and select the baud rate of 9000M2 unit. Click the “NEXT” button. 45. Shown below is the last screen. 32/33...
Page 33
46. If the test is finished successfully, click “OK”. 47. Click “Communication” on the menu bar, select “Upload PC to 9000” and “All Data”. 48. A progress bar is displayed during communications. *If communication is completed, the progress bar dialog is closed and downloading is completed.
