Toa M-800RC Operating Instructions Manual

Toa M-800RC Operating Instructions Manual

Digital matrix mixer system
Hide thumbs Also See for M-800RC:
Table of Contents

Advertisement

Quick Links

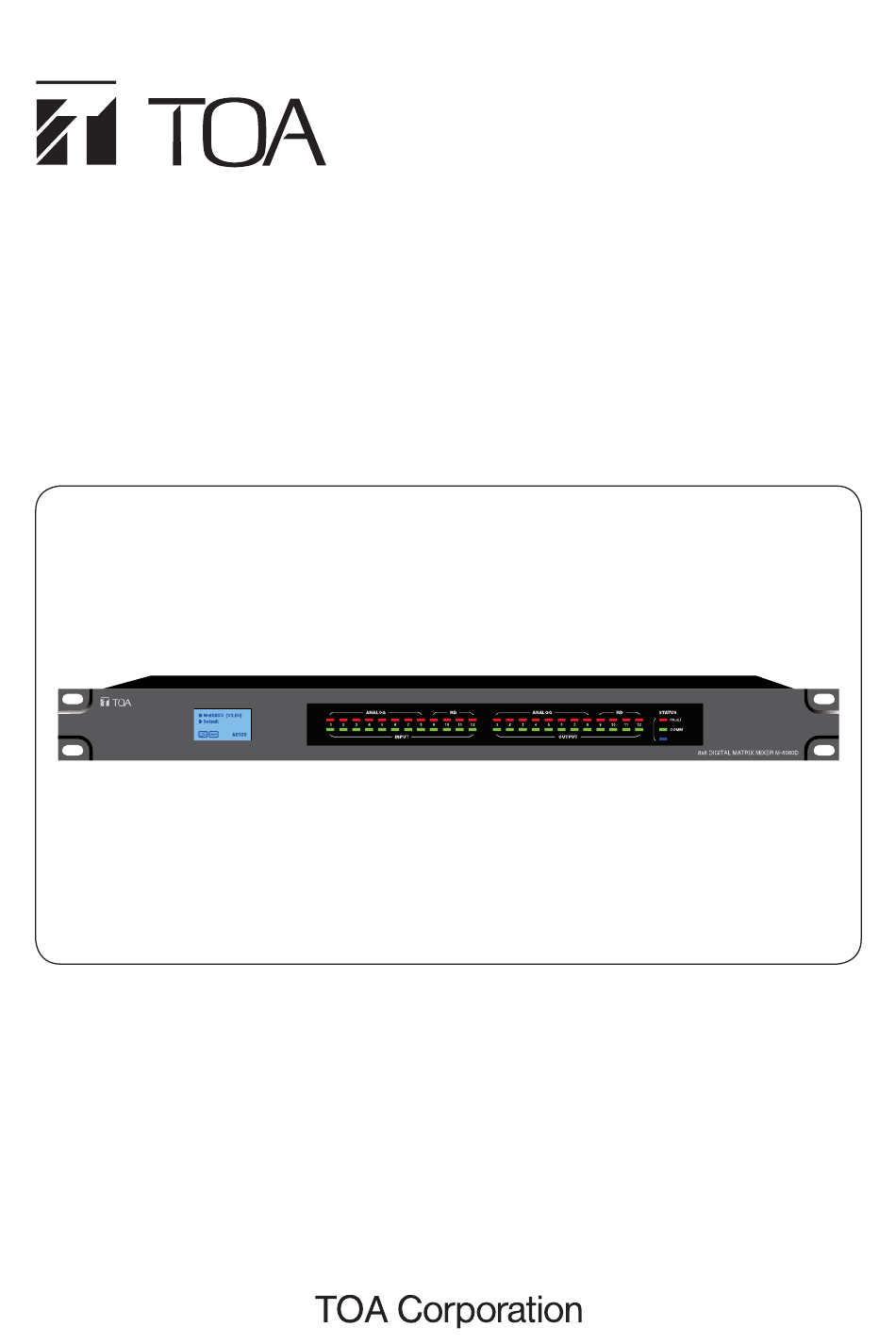

OPERATING INSTRUCTIONS
DIGITAL MATRIX MIXER SYSTEM
M-8080D SERIES
PEAK
SIGNAL
POWER
Thank you for purchasing TOA's Digital Matrix Mixer System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-800RC and is the answer not in the manual?

Questions and answers

Related Manuals for Toa M-800RC

Summary of Contents for Toa M-800RC

  • Page 1 OPERATING INSTRUCTIONS DIGITAL MATRIX MIXER SYSTEM M-8080D SERIES PEAK SIGNAL POWER Thank you for purchasing TOA's Digital Matrix Mixer System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    11. SPECIFICATIONS 11.1. 8x8 DIGITAL MATRIX MIXER M-8080D 11.2. REMOTE MICROPHONE M-800RM 11.3. REMOTE AUDIO CONTROL PANEL M-800RC 11.4. REMOTE AUDIO CONTROL PANEL WITH AUDIO OUT M-802RC 11.5. REMOTE AUDIO INPUT OUTPUT PANEL M-822IO 11.6. REMOTE AUDIO CONTROL PANEL WITH TOUCH DISPLAY M-800RCT 11.7.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •...
  • Page 4 Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
  • Page 5 Indicates a potentially hazardous situation which, if mishandled, could CAUTION result in moderate or minor personal injury, and/or property damage. When Installing the Unit • Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock. •...

  • Page 6: Introduction

    2. INTRODUCTION Thank you for purchasing the M-8080D series Digital Matrix Mixer System. This device is dedicated to music, paging, discussion and zone management solutions for Commercial Audio applications. Easy to use and to implement, M-8080D offers state-of-the-art signal processing in a cost effective package.

  • Page 7: Dsp Functions

    3.2. DSP FUNCTIONS M-8080D is intended for non-experts. The system used fix architecture for quick and easy operation. The intuitive GUI utilizes a familiar hardware-like layout to enable a short programming timeline and rapid hardware implementation. All functions can be configured with the PC Editor Software. Settings can be memorized for easy duplication or modification: 3.3.
  • Page 8 The green pair is reserved for data communications between M-8080D and remote device. Data communication is needed to send configuration information, software update and status information from M-8080D to remote device. Note: Configuration information of remote device (such LED illuminate status, microphone sensitivity, channel name, etc.) is stored in M-8080D, not in the remote devices.

  • Page 9: Front Panel Description

    4. FRONT PANEL DESCRIPTION PEAK SIGNAL POWER 1. LC-Display It displays device information. Such as name, firmware and ID. And communication status. M-8080D (V2.6II) &0100 a. Displays device name and the firmware version. b. It displays the current preset. c. Current ID.The ID is automatically obtained when the device is correctly connected.ID&0100 d.

  • Page 10: Rear Panel Description

    6. STATUS • FAULT Red LED indicating a malfunction of the DSP. The information is relayed on the LC-Display. • COMM Green LED indicating the communication status between the PC and the device. The LED blinks during data transfer. It remains off in case of problems. •...
  • Page 11 Similar to port RD 9/10 (6) but assigned to channels 11 and 12. About M-8080D RD port expansion: Can use M-804EX / M-800RCT / M-800RC to expand the RD port of M-8080D. M-8080D RD port can support up to 1pc M-804EX or 4pcs M-800RCT / M-800RC.

  • Page 12: M-8080D Connection

    Save As: Save current preset to local, Press this button to save all current presets (except the preset list data). Config Device ID: Customize device ID. The ID shall be always "0100" . Offline Load: Only for TOA technicians to offline analyze whether the user preset files are correct. Offline Save: Only for TOA technicians after offline editing, save preset to local.
  • Page 13 A0, B0, C0, D0, E0, and less than 81E0 ). M-800RC / M-800RCT: The device can only enter 4 digits (Only the penultimate second digit is 5, 6, 9, A, B, C, D, E. The penultimate digit is less than 9 and less than 81E9 ).
  • Page 14 3. Generate Code When performing any function operation, press this button and the corresponding command will be displayed below the software. 4. Help Click the Help , a pop-up window will display the information of the current software.

  • Page 15: Software Editor

    7. SOFTWARE EDITOR 7.1. INPUT DSP CHANNEL 1. EXP/Gate: The gate attenuates signals below the threshold value, and allows signals above the threshold value to pass. When the signal is beyond the threshold, the output signal remains identical to the input signal. By adjusting the value of the ratio to its maximum, the Expander is transformed into a Noise Gate.
  • Page 16 5. EQ: High Pass Filter and Low Pass Filter: Those filters are used to eliminate non necessary frequencies above and below the signal spectrum, in order to avoid any background noise generation due to multi-processing. For instance, a voice microphone will be set to 100Hz for the High Pass and 4kHz for the Low Pass.

  • Page 17: Matrix

    Attention: In case of M-800RCT, the individual name setting is not transmitted automatically to the device. Use the seperate Setting page of M-800RCT for setting individual names to be transmitted and indicated on M-800RCT. Function Example: Adjusting the high-pass filter to 32.7Hz. Type is adjusted to BW24. Drag EQ1 to 54.4Hz and adjust the Q value to 2.0.

  • Page 18: Output Dsp Channel

    IN(OUT) 01 to IN(OUT) 08 are analog I/O available on the rear panel. In(OUT) 09 to IN(OUT) 12 are digital I/O (RD ports) and are converted to analog signals. Attention: After the M-800RM is connected, the corresponding output is automatically turned off . The purpose is to avoid: no broadcast but also has output.

  • Page 19: Ducker

    Function Example: Adjust the high-pass filter / EQ point to the corresponding parameter, which is the same as Input DSP. The waveform in the EQ diagram will also change accordingly. 7.4. DUCKER The principle of the Ducker is to attenuate one or several channels when priority signals are activated. The main applications are automatic speech for conference or priority messages.

  • Page 20: Fbc (Feedback Compression)

    2. Ducker Parameter Setting Threshold: threshold of attenuation. From 0dB to -80dB. Depth: depth of attenuation. Activation Time: Velocity of gain change to attenuate inputs. BYPASS: The signal is not processed and skips to the next processing module. Function Example: The current setting sets channel 1 to level 1, channel 2 to level 2, and channel 3 to level 3.
  • Page 21 FBC (Feedback compression) function can effectively suppress howling expansion volume, ensure voice transmission quality, high fidelity, and clear sound. The dynamic filter and the static filter function the same. Used to remove devices above or below a certain frequency. To increase or decrease a range of frequencies in sound by passing them through. The differences between them are: 1.

  • Page 22: Auto Mixer

    Function Example: Turn on local input / output 1. The corresponding input signal is sent to the FBC module for processing, and the corresponding button is lit to output the signal after FBC processing to the corresponding output channel. Click "Static Filter Setting" to enter the static filter setting mode. Set the volume of all input channels to the required level and turn on the microphone.

  • Page 23: Save / Load / Copy

    Source Select Local Input: selection of input channels (1-12) to be processed. Activation Time Set the start mixing time of the signal of the selected input channel. Push ON to activate the time setting, and use the horizontal fader to set the time value. Function Example: Add the local input CH 1 and CH2 open setting to the automatic mixing function.
  • Page 24 This menu is used to manage the backup parameters. These data can be stored directly in the internal memory of host as a preset. Its memory contains a total of 16 presets. 1. Import All Preset: Import all preset types from device to computer file. 2.

  • Page 25: System

    Save current preset to device 1) Select Device and click Save button. 2) Enter the preset name in the pop-up window. 3) Click Submit button to save the preset. Note:The preset list are saved separately and are not included in the system saving. Function Example 2: Select the input channel Input1 to copy to CH03.
  • Page 26 1. Relay Control: It is used to control external devices. Allow end users to control their actions. 2. Password Setting: Press this button to modify the password. 3. Lock System: Press this button to lock the system. It is locked at this time, you need to enter the password to unlock, if you forget the password, you can use the super password MA88 to unlock.
  • Page 27 Function Example 1: Click Password Setting, enter the current password and the password you want to modify, click Confirm, the password will be successfully modified. Function Example 2: 1) According to the method described earlier, insert one end of the network cable into the GPI 1 port on the rear panel of the machine, and the other end is short-circuited.

  • Page 28: Remote Devices

    8. REMOTE DEVICES M-8080D offers a large choice of devices for volume adjustment, paging management, routing and I/O modules. 8.1. M-800RM The M-800RM is a Paging Microphone and can address 1 to 12 different zones (outputs). Moreover, a total of 2 x M-800RM can be used in a system, which makes a lot of possibilities for message paging.
  • Page 29 1 ) M-800RM / M-822IO / M-802RC (with audio transmission) can only be connected to the RD port of the M-8080D or the RD EXP port 1 of M-804EX. 2 ) M-800RC / M-800RCT (with control function) can link each other. Note: 1 ) No hot plugging, The connection must be made when the system power is off.
  • Page 30 This function is a partition setting, with audio routing function, can control up to 12 partitions. Distribute audio to different partitions, and easily manage partitions by adjusting the sending time / volume / priority. 1. Connect Status: When the signal light shows green, it means the communication status is normal. If it shows gray, it means no communication.

  • Page 31: M-800Rc

    1 ) M-800RM / M-822IO / M-802RC (with audio transmission) can only be connected to the RD port of the M-8080D or the RD EXP port 1 of M-804EX. 2 ) M-800RC / M-800RCT (with control function) can link each other. Wall installation instructions: 1.
  • Page 32 M-800RC Editor 1. Select Channel to Control Volume -Input Channel 1 - 12: Check the box to control the input of multiple channels at once. -Output Channel 1 - 12: Check the box to control the output of multiple channels at once.

  • Page 33: M-802Rc

    8.3. M-802RC The M-802RC has the same functionality as the M-800RC volume control, but it includes 2 additional analog outputs. The device includes a build in D/A converter processing digital audio AES3 signals from M-8080D M-802RC requires/consumes 2x digital output channels of in total 4 available digital output channels of M-8080D.
  • Page 34 M-802RC Editor 1. Select Channel to Control Volume: -Input Channel: Check the box to control the input of multiple channels at once. -Output Channel: Check the box to control the input of multiple channels at once. 2. Enable Routing Function -Output Channel 1 - 12: Check the box to control the routing of multiple output channels at once.

  • Page 35: M-822Io

    1 ) M-800RM / M-822IO / M-802RC (with audio transmission) can only be connected to the RD port of the M-8080D or the RD EXP port 1 of M-804EX. 2 ) M-800RC / M-800RCT (with control function) can link each other. h. 2 Channel Outputs...

  • Page 36: M-800Rct

    Wall installation instructions: 1. First unscrew the screw on the bottom of the device with a screwdriver. 2. Fix the back plate to the wall. Screw both ends to the wall. Check for firmness or crooked nails. 3. Insert the distributed network cable into the RD IN port, Connect the analog output cable, and snap the device to the back plate.
  • Page 37 1 ) M-800RM / M-822IO / M-802RC (with audio transmission) can only be connected to the RD port of the M-8080D or the RD EXP port 1 of M-804EX. 2 ) M-800RC / M-800RCT (with control function) can link each other. Wall installation instructions: 1.
  • Page 38 In the Output section, the routing function can assign any input to any output. Volume and mute can be adjusted and visually monitored. 1 ) Mute: Click this button, the selected current output channel will be muted. 2 ) Output 01 - Output 12: Switch the setting interface of OUT 01 - OUT 12. 3 ) Input 01 - Input 12: Turn on / off input channels 01 - 12.
  • Page 39 M-800RCT Editor 1. Select Channel to control volume: -Input Channel 1 - 12: Check the box to control the input of multiple channels at once. -Output Channel 1 - 12: Check the box to control the output of multiple channels at once. 2.

  • Page 40: M-804Ex

    M-804EX is off, please connect an DC24V external power supply. Note that the power connection polarity. b. RD connections for M-800RC / M-800RCT (control data remote devices only). c. RD connection for M-802RC / M-822IO / M-800RM (control and audio transport data remote devices) or M-800RC / M-800RCT (control data remote devices).

  • Page 41: Application Examples

    M-8080D dedicated music via Music player connected to M-822lO input/output. Volume is controlled with M-804EX DA-250FH a specific M-800RC device. Locker Rooms 1 Aerobics Room M-822IO M-800RC Treadmill Room HX-7B / W F-2000BT / WT Music Player...
  • Page 42 Paging and volume for every zone are controlled from the DA-250FH DA-250DH reception using M-800RCT Touch Panel Controller. F-2000BT / WT M-800RC Lobby Restrooms Meeting Room M-800RC Video Projector Dining Room Parking BS-1030B / W...
  • Page 43 M-804EX All other DSP functions like EQ or Ducking dedicated to each room can be set by the system administrator using the M-8080D Editor software. Classroom 1 Classroom 2 M-800RC Video Projector Video Projector M-800RC BS-678W M-822IO M-822IO DM-880 AV-60S...

  • Page 44: Appendix

    10. APPENDIX RS232 Codes Start Start Start Channel Local Channel: 0x01 - 0x0C Length Device D Address ID Address Type Command Value End Byte Byte0 Byte1 Byte2 (n Byte) Network Channel: 0x0D - 0x14 Function (2 byte) (2Byte) (high Byte) (Low Byte) (2Byte) (2Byte)
  • Page 45 Start Start Start Channel Local Channel: 0x01 - 0x0C Length Device D Address ID Address Type Command Value End Byte Byte0 Byte1 Byte2 (n Byte) Network Channel: 0x0D - 0x14 Function (2 byte) (2Byte) (high Byte) (Low Byte) (2Byte) (2Byte) (n Byte) (1Byte) (1Byte)

  • Page 46: Specifications

    RD port RD 9 - 12 : transmits and receives AES3 digital audio plus control data connect remote devices such as M-822IO, M-800RC, M-802RC, M-800RCT and M-800RM, maximum cable length is 100 meters, RJ45 Connector x 2 Equalizer/Filter 5 band EQ (LPF and HPF) for IN and 8 band EQ (LPF and HPF) for OUT Parametric Equalizer: 19.7 - 20,160 Hz, range: ±18 dB, Q: 0.4 - 128, Type: peak/low/high...

  • Page 47: Remote Microphone M-800Rm

    24V DC (Powered by M-8080D or M-804EX) RD IN Transmits and receives AES3 digital audio plus control data Connect to M-8080D, M-804EX or M-800RC, M-800RCT for daisy chain, RJ45 Connector RD EXP Transmits and receives control data Connect to M-800RC or M-800RCT, RJ45 Connector...

  • Page 48: Remote Audio Control Panel With Audio Out M-802Rc

    11.4. REMOTE AUDIO CONTROL PANEL WITH AUDIO OUT M-802RC Model no. M-802RC M-802RCB Power Source 24V DC (Powered by M-8080D or M-804EX) Audio Output Line output 1 - 2 : 0 dBV, 1.8 kΩ, Maximum output 20 dBu (7.75 V) , electronic balanced, screw terminal (3 pins x 2) RD IN Transmits and receives AES3 digital audio plus control data...

  • Page 49: Remote Audio Control Panel With Touch Display M-800Rct 3

    24V DC (Powered by M-8080D or M-804EX) RD IN Transmits and receives AES3 digital audio plus control data Connect to M-8080D, M-804EX or M-800RC, M-800RCT for daisy chain, RJ45 Connector RD EXP Transmits and receives control data Connect to M-800RC or M-800RCT, RJ45 Connector...
  • Page 50 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan Traceability Information for Europe Traceability Information for Americas Authorized representative: Authorized representative: TOA Electronics Europe GmbH TOA Electronics, Inc. Suederstrasse 282, 20537 Hamburg, 1 Harmon Plaza, Suite 700 Secaucus, Germany New Jersey 07094, USA TEL: +1 650 452 1200 www.toacanada.com...
