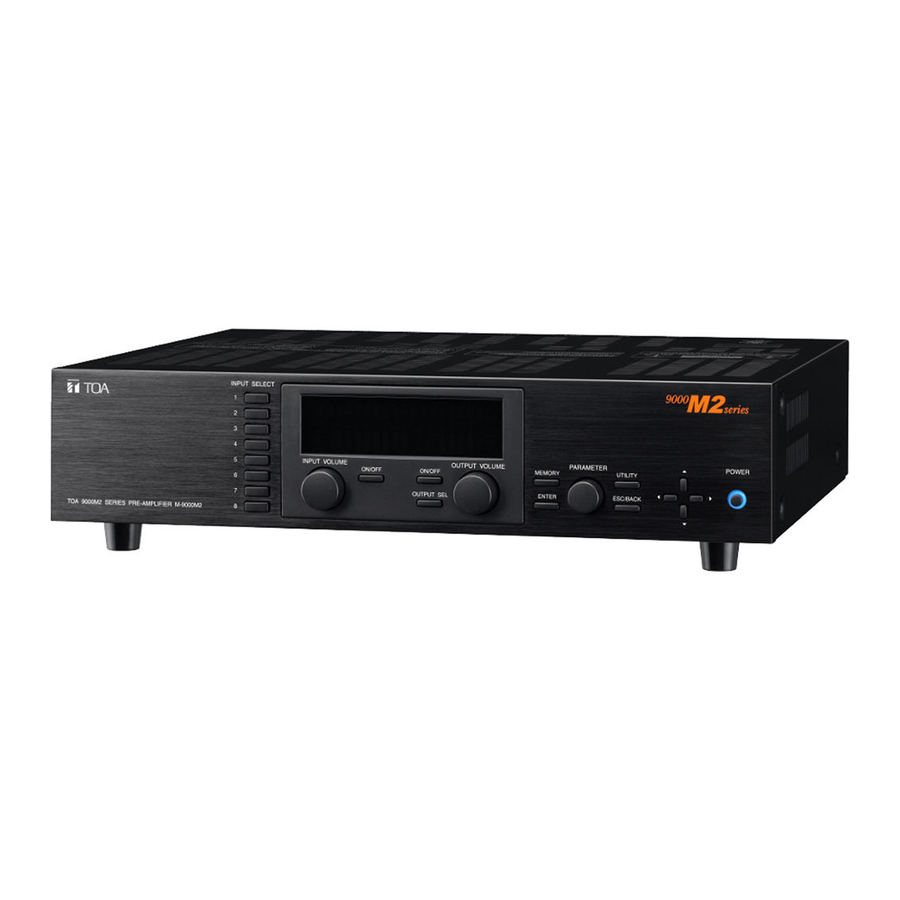

9000M2 Series
Quick Start Guide
- Audio Distribution-
House of Worship
1/37

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9000M2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa 9000M2 Series

Summary of Contents for Toa 9000M2 Series

  • Page 1 9000M2 Series Quick Start Guide - Audio Distribution- House of Worship 1/37...
  • Page 2 System Overview 9000M2 Series Mixer Amplifier and audio devices are installed in a rack room. When an event is held in the Fellowship Hall, Mixer and Wireless tuners are installed temporary. If there are too many people and more people cannot enter in the Fellowship Hall, the Hall sound can be also listened to in Classroom1, 2.
  • Page 3 Input 5 (D-001T): WT-5800 for Room 1 Input 6 (D-001T): DVD for Room 1 Output 1 (A-9060DHM2): Rectory Output 2 (A-9060DHM2): Outside Entrance Output 3 (P-9060DH): Classroom 1 Output 4 (P-9060DH): Classroom 2 Output 5 (DA-500F-HL): Fellowship Hall Output 6 (A-9060DHM2): Webcast / Recording / Broadcast Remote out (RC-001T): ZM-9012[0] >>...
  • Page 4 ZM-9014[4]: Fellowship Hall Button 1: Input1 – Output .5, 6. Button 2: Input1 – Output 1,5,6. Button 3: Input1 – Output 5. Volume: Output 5. ZM-9012[5]: Changing the input volume. 4/37...
  • Page 5 Configuration Configuration 5/37 5/37...
  • Page 6 1. The following is the initial setting wizard screen. 2. Click “ New File” on the Start Menu window. 6/37...
  • Page 7 3. Set module configurations. 4. Select the modules to be inserted into the amplifier’s slots from the pull-down menu in the Module field. 7/37...
  • Page 8 5. Select a module for each Slot. At the same time, please name each channel (ex. “MIC1”). Main Frame Name 1 >> “RECTORY” Name 2>> “OUTSIDE” Slot #1 >> D-001 Name 1 >> ”MIXER” Name 2 >> ”-” Slot #2 >> D-001 Name 1 >>...
  • Page 9 7. The following window is for setting devices connected to REMOTE VOLUME terminal on 9000M2 rear panel. If you do not use ZM-9001, ZM-9002 or ZM-9003, select “NONE” from the combo box “TYPE”. 8. In this “Audio Distribution “application, select NONE both REMOTE VOL1 and REMOTE VOL 9/37...
  • Page 10 9. Click “FINISH” button. 10. Setting for Remote Controller: ZM-9011/9012/9013/9014. 10/37...
  • Page 11 11. Select how many Remote Controllers you will use. In this application, select “6”. 11/37...
  • Page 12 12. Select “ZM-9012” from the combo box “MODEL” for 01, 02, and 06. And select “ZM-9014” from the combo box “MODEL” for 03, 04, and 05. If “CROSS POINT CHANGE” function will be assigned to a button of Remote Controller, select either type of “SOURCE SELECTION MODE”.
  • Page 13 13. Click “FINISH” button. That means the initial setting is completed. 13/37...
  • Page 14 14. Programming Software is opened. 15. Setting of assignment to ZM-9014s and ZM-9012s. Click “Setting” on the menu bar and select “Remote Setting Wizard”. 14/37...
  • Page 15 16. Remote Controller Setting Wizard is opened. Just click “NEXT” button. 17. Setting of the first ZM-9012[0]. Here, we assign a function to each button and knob. 15/37...
  • Page 16 18. The first ZM-9012[0] controls the output volume of Rectory. Check the appropriate points as follows and click “NEXT” button. 19. Setting of the second ZM-9012[1]. 16/37...
  • Page 17 20. The second ZM-9012[1] controls the output volume of Entrance. Check the appropriate points as follows and click “NEXT” button. 21. Setting of the first ZM-9014[ 2]. Here, we assign a function to each button and knob. 17/37...
  • Page 18 22. Assign #01 “CHANGE CROSS POINT” function and click the button circled with red . 3. Check the appropriate points. 18/37...
  • Page 19 24. As well as #01 button, select “CHANGE CROSS POINT” function and check cross points for each buttons. [Button #02] [Button #03] 19/37...
  • Page 20 [Button #04] 25. Assign “OUTPUT VOLUME” to the knob and select the ASSIGNED CH “03”. Click “NEXT” button. 20/37...
  • Page 21 26. Setting of the second ZM-9014. Here, we assign a function to each button and knob. 27. Assign #01 “CHANGE CROSS POINT” function and click the button circled with red. 21/37...
  • Page 22 28. Check the appropriate points. 9. As well as #01 button, select “CHANGE CROSS POINT” function and check cross points for each buttons. [Button #02] 22/37...
  • Page 23 [Button #03] utton #04] 23/37...
  • Page 24 30. Assign “OUTPUT VOLUME” to the knob and select the ASSIGNED CH “04”. Click “NEXT” button. 24/37...
  • Page 25 31. Setting of the third ZM-9014[4]. 32. Assign #01 “CHANGE CROSS POINT” function and click the button circled with red. 25/37...
  • Page 26 33. Check the appropriate points. 34. As well as #01 button, select “CHANGE CROSS POINT” function and check cross points for #02 and #03. [Button #02] 26/37...
  • Page 27 [Button #03] 35. Assign “OUTPUT VOLUME” function to the knob and select the ASSIGNED CH “05”. 27/37...
  • Page 28 36. Setting of the third ZM-9012[5]. 37. Assign “OUTPUT VOLUME” and select the ASSIGNED CH “06”. Click “FINISH” button. 28/37...
  • Page 29 38. When clicking the “X POINTS” area, “Setting view” will change as below. 29/37...
  • Page 30 39. Initial X points when power is switched on can be set here. Input Ch. 1(MIXER) routes to Output Ch. 5 and 6 (Fellowship Hall and optional device). Input Ch. 3 and 4 (WT-5800 and DVD for classroom 2) route to Output Ch. 4. Input Ch.
  • Page 31 40. Freely adjust the volume, Compressor, Equalizer setting. <Sample screen of output EQ setting> 31/37...
  • Page 32 <Sample screen of Output Compressor setting> 32/37...
  • Page 33 41. Save all the above settings as Scene 1. 33/37...
  • Page 34 42. Click ”Communication” on menu bar and select “Serial Setting Wizard”. 43. Check the connection between PC and 9000M2 unit. Click the “NEXT” button. 34/37...
  • Page 35 44. Confirm and select the baud rate of 9000M2 unit. Click the “NEXT” button. 45. Click the “NEXT” button. 35/37...
  • Page 36 46. Shown below is the last screen. 47. If the test is finished successfully, click “OK”. 36/37...
  • Page 37 48. Click “Communication” on the menu bar, select “Upload PC to 9000” and “All Data”. 49. A progress bar is displayed during communications. If communication is completed, the progress bar dialog is closed and downloading is completed. 37/37...
