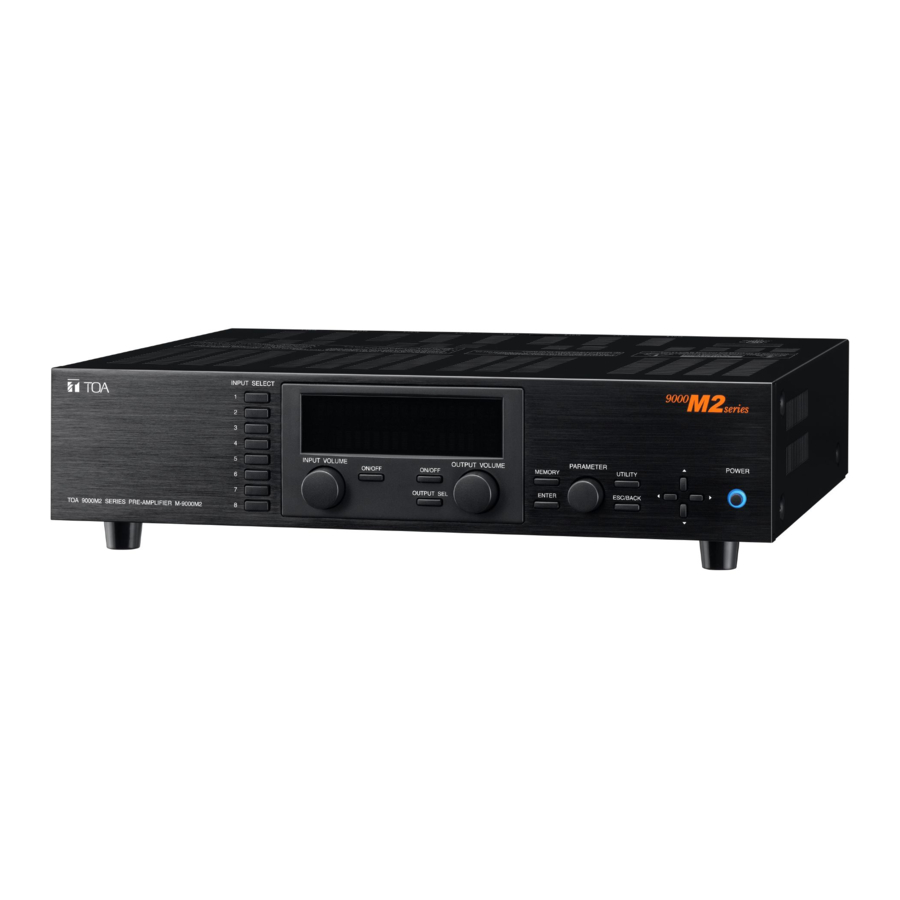

Toa 9000M2 Series Quick Start Manual
Multi zone paging office / school using scene changes
Hide thumbs
Also See for 9000M2 Series:
- User manual (60 pages) ,
- Quick start manual (40 pages) ,
- Specfications (2 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toa 9000M2 Series
Summary of Contents for Toa 9000M2 Series
- Page 1 9000M2 Series Quick Start Guide - Multi Zone Paging- Office / School Using Scene Changes 1/30...
- Page 2 System Overview 9000M2 Series Mixer Amplifier and audio devices are installed in a Security office. There are eight speaker zones (Hall, Cafeteria, Conference room, Security office, Parking, Yard). When the emergency situation happens, evacuation announcements are generated by using a microphone.
- Page 3 Input 2 (ZP-001T): PBX Input 3 (S-20S): Emergency Announcements Output 1 (A-9120DHM2): Hall A Output 2 (A-9120DHM2): Hall B Output 3 (P-9120DH): Hall C Output 4 (P-9120DH): Hall D Output 5 (DA-500F-HL): Cafeteria Output 6 (DA-500F-HL): Auditorium/Conference Room Output 7 (DA-250DH): Security Office Output 8 (DA-250DH): Parking Lot/ School Yard Remote out (RC-001T): ZM-9013 [0] >>...
- Page 4 Configuration 4/30...
- Page 5 1. The following is the initial setting wizard screen. 2. Click “ New File” on the Start Menu window. 5/30...
- Page 6 3. Set module configurations. 4. Select the modules to be inserted into the amplifier’s slots from the pull-down menu in the Module field. 6/30...
- Page 7 5. Select a module for each slot. At the same time, name each channel (ex. “MIC1”). Main Frame Name 1 >> “HALL-A” Name 2 >> “HALL-B” Slot #1 >> D-001 Name 1 >> ”PAGING1” Name 2 >> ”-” Slot #2 >> ZP-001 Name 1 >>...
- Page 8 7. The following window is for setting devices connected to REMOTE VOLUME terminal on 9000M2 rear panel. If you do not use ZM-9001, ZM-9002 or ZM-9003, select “NONE” from the combo box “TYPE”. 8. In this “Multi-zone Paging“ application, select NONE both REMOTE VOL1 and REMOTE VOL 2 8/30...
- Page 9 9. Click “Next” button. 0. Setting for Remote Controller: ZM-9011/9012/9013/9014. 9/30...
- Page 10 1. Select how many Remote Controller you use. In this application, select “2”. 12. Select “ZM-9013” from the combo box “MODEL” for 01. And select “ZM-9014” from the combo box “MODEL” for 02. If “CROSS POINT CHANGE” function will be assigned to a button of Remote Controller, select either type of “SOURCE SELECTION MODE”.
- Page 11 13. Click “FINISH” button. That means the initial setting is completed. 11/30...
- Page 12 14. Programming Software is opened. 12/30...
- Page 13 15. In this application, INPUT 1 (microphone) and INPUT 3 (PBX) and INPUT 4(Emergency Announcements) have priority. Then, regard those inputs as paging inputs. Click “Setting” on the menu bar and select “Paging Priority Setting”. 16. The following window opens. 13/30...
- Page 14 17. Assign priority level “1” to Input Channel 1 (microphone) and Channel 4 (Emergency announcements). Click the “OK” button. 18. Setting of assignment to five ZM-9014s and one ZM-9013. Click “Setting” on the menu bar and select “Remote Setting Wizard”. 14/30...
- Page 15 19. Remote Controller Setting Wizard is opened. Just click “NEXT” button. 15/30...
- Page 16 20. Setting of the ZM-9013[0]. Here, we assign a function to each button. 21. Select the “INITIATE PAGING” #01 to #08. Click “NEXT” button. 16/30...
- Page 17 22. Setting of the first ZM-9014[1]. Here, we assign a function to each button and knob. 23. Assign one function to each button. Here, assign #01 “INITIATE P AGING” function. 17/30...
- Page 18 24. Assign #02 to #04 “CHANGE C-OUT” function and select the combo box ASSIGNED VALUE. #02 >> “CHANGE C-OUT” ASSIGNED VALUE >> LEVEL, 1 #03 >> “CHANGE C-OUT” ASSIGNED VALUE >> LEVEL, 2 #04 >> “CHANGE C-OUT” ASSIGNED VALUE >> TOGGLE, 3 25.
- Page 19 26. Move on to “Paging Setting”. Click “PAGING” button. 19/30...
- Page 20 27. Set paging function of Channel 1 (microphone) and Channel 4 (S-20S). 20/30...
- Page 21 28. Select “IN1” from “INPUT” part for No.1. 29. It is required that pressing the button #01 of the ZM-9013 allows INPUT 1(paging) to route to only OUTPUT1. Select RM0SW1 from “TRIGGER” combo box. *RM0SW1 = Remote Controller (Address=0), Switch (button) #01. 21/30...
- Page 22 30. Check at OUTPUT Ch. 1 box. 31. As well as No.1, continue to set paging function. Pressing the button #02 of the ZM-9013 allows INPUT 1(paging) to route to only OUTPUT2. Select RM1SW2 from “TRIGGER” combo box. Check at OUTPUT Ch. 2 box. 22/30...
- Page 23 32. As well as No.1 and No.2, continue to select “TRIGGER” and check “OUTPUT ch.” as follows. Then paging function of “INPUT 1(paging)” is now complete. 33. Next, select “IN3” from “INPUT” combo box for No.9. Select ZP(MANUAL) from “TRIGGER combo box. 23/30...
- Page 24 34. Next, select “IN4” from “INPUT” combo box for No.10. Check “OUTPUT ch.” as follows. 5. As well as No.11, No.12 and No.13, continue to select “TRIGGER” and check “OUTPUT ch.” as follows. Select C-OUT from “SYNC OUT” combo box as follows.
- Page 25 36. Click “ZP Setting”. 37. Select “MANUAL” and “RING SIGNAL” from “MODE”. Select “10 min” from “CONNECT TIME”. 25/30...
- Page 26 37. Freely adjust the volume, Compressor, Equalizer setting. <Sample Setting Windows> 26/30...
- Page 27 38. Save all the above settings as Scene 1. 27/30...
- Page 28 39. Click ”Communication” on menu bar and select “Serial Setting Wizard”. 40. Check the connection between PC and 9000M2 unit. Click the “NEXT” button. 41. Confirm and select the baud rate of 9000M2 unit. Click the “NEXT” button. 28/30...
- Page 29 42. Click the “NEXT” button. 43. Show below is the last screen. 44. If the test is finished successfully, click “OK”. 29/30...
- Page 30 45. Click “Communication” on the menu bar, select “Upload PC to 9000” and “All Data”. 46. A progress bar is displayed during communications. *If communication is completed, the progress bar dialog is closed and downloading is completed. 30/30...
