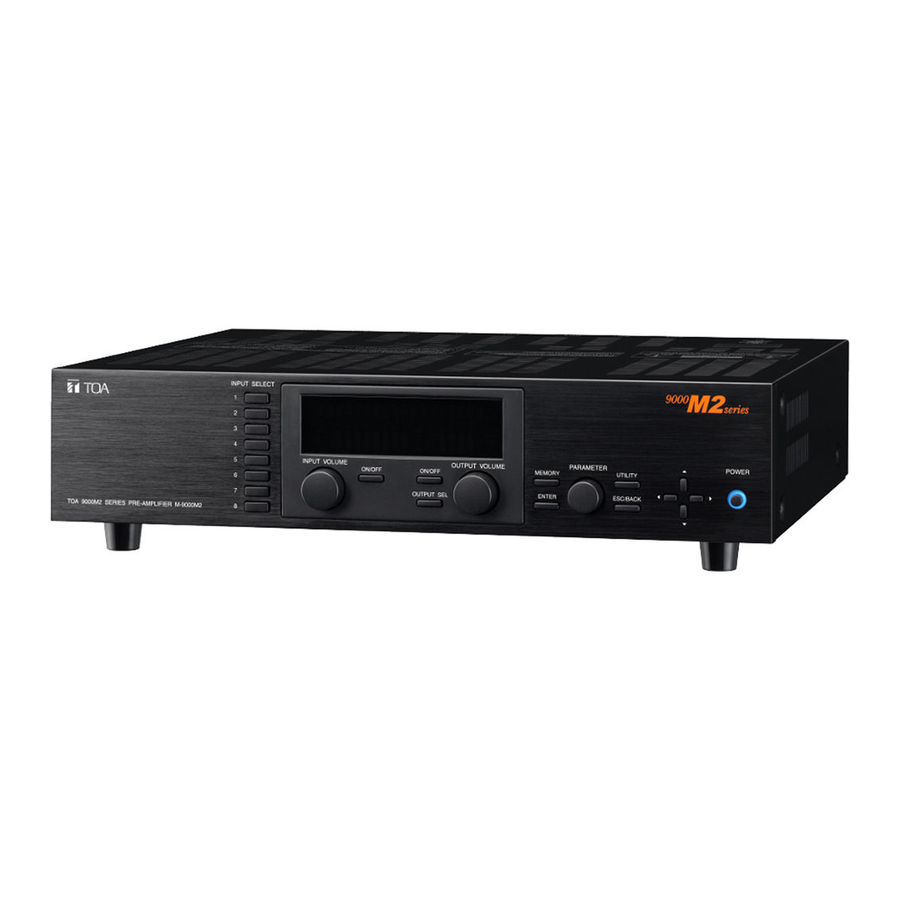

Toa 9000M2 Series Quick Start Manual

Multi-zone bgm/paging retail stores
Hide thumbs Also See for 9000M2 Series:

Advertisement

Quick Links

Download this manual
9000M2 Series
Quick Start Guide
- Multi-zone BGM/Paging-
Retail Stores
1/40

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9000M2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa 9000M2 Series

Summary of Contents for Toa 9000M2 Series

  • Page 1 9000M2 Series Quick Start Guide - Multi-zone BGM/Paging- Retail Stores 1/40...
  • Page 2 System Overview 9000M2 Series Mixer Amplifier and audio devices are installed in back room. An audio source, which is broadcast in each area, is selectable and output volume is also adjustable by remote controllers on the wall. Paging through telephone PBX to selected areas is also available.
  • Page 3 Input 3 (ZP-001T): PBX Input 4 (S-20S): Store Announcements 1 (Priority 2) Input 5 (S-20S): Store Announcements 2 (Priority 2) Output 1 (A-9120DHM2): Parking Output 2 (A-9120DHM2): Entrance Output 3 (DA-250DH): Cashiers Output 4 (DA-250DH): Dressing Rooms Output 5 (DA-250FH): Dept A Output 6 (DA-250DH): Dept B Output 7 (DA-250DH): Back Office Output 8 (DA-250DH): Warehouse/Stockroom...
  • Page 4 Button1: Input 1 routes to speaker Output 5 Button2: Input 2 routes to speaker Output 5 Volume: Output 5 ZM-9014[5] : Dept B Button1: Input 1 routes to speaker Output 6 Button2: Input 2 routes to speaker Output 6 Volume: Output 6 ZM-9014[6] : Back office Button1: Input 1 routes to speaker Output 7 Button2: Input 2 routes to speaker Output 7...
  • Page 5 Configuration 5/40...
  • Page 6 1. The following is the initial setting wizard screen. 2. Click “ New File” on the Start Menu window. 6/40...
  • Page 7 3. Set module configurations. 4. Select the modules to be inserted into the amplifier’s slots from the pull-down menu in the Module field. 7/40...
  • Page 8 5. Select a module for each slot. At the same time, please name each channel (ex. “MIC 1”). Name 1 >> “PARKING” Name 2 >>”ENTRANCE” Main Frame Name 1 >> “CD” Name 2 >> “RADIO” Slot #1 >> D-001 Name 1 >> “PBX” Slot #2 >>...
  • Page 9 7. The following window is for setting devices connected to REMOTE VOLUME terminal on 9000M2 rear panel. If you do not use ZM-9001, ZM-9002 or ZM-9003, select “NONE” from the combo box “TYPE”. 8. In this “BGM/Paging “application, select NONE both REMOTE VOL1 and REMOTE VOL 2 9/40...
  • Page 10 9. Click “FINISH” button. 10. Setting for Remote Controller: ZM-9011/9012/9013/9014. 10/40...
  • Page 11 11. Select how many Remote Controllers you will use. In this application, select “8”. 11/40...
  • Page 12 12. Select “ZM-9014” from the combo box “MODEL” for 04, 05, 06 and 07. And select “ZM-9012” from the combo box “MODEL” for 01, 02, 03, and 08. If “CROSS POINT CHANGE” function will be assigned to a button of Remote Controller, select either type of “SOURCE SELECTION MODE”.
  • Page 13 14. Programming Software is opened. 15. Click “Setting” on the menu bar and select “Paging Priority Setting”. 13/40...
  • Page 14 16. The following window opens. 14/40...
  • Page 15 17. Assign priority level to channels. Ch.3 >> PRIORITY 2 Ch.4 >> PRIORITY 1 Ch.5 >> PRIORITY 1 18. Setting of Assignment to ZM-9014s and ZM-9012s. Click “Setting” on the menu bar and select “Remote Setting Wizard”. 15/40...
  • Page 16 19. Remote Controller Setting Wizard is opened. Just click “NEXT” button. 16/40...
  • Page 17 20. Setting of the first ZM-9012[0]. 21. The first ZM-9012[0] controls the output volume of Parking. Check the appropriate points as follows and click “NEXT” button. 17/40...
  • Page 18 22. The second ZM-9012[1] controls the output volume of Entrance. Check the appropriate points as follows and click “NEXT” button. 23. The third ZM-9012[2] controls the output volume of Cashiers. Check the appropriate points as follows and click “NEXT” button. 18/40...
  • Page 19 24. Setting of the first ZM-9014[3]. Here, we assign a function to each button and knob. 25. Assign “CHANGE CROSS POINT” function to #01 and click the button circled with red. 19/40...
  • Page 20 26. Check the box(es) as follows and click “OK”. 27. As well as #01, assign “CHANGE CROSS POINT” to #02. [Button #02] 20/40...
  • Page 21 28. Assign “OUTPUT VOLUME” to the knob and select ASSIGNED CH “04”. Click “NEXT” button. 29. Setting of the second ZM-9014[4]. 21/40...
  • Page 22 30. Assign “CHANGE CROSS POINT” to #1 and click the button circled with red. 31. Check as follows and click “OK” button. 22/40...
  • Page 23 32. As well as #01, assign “CHANGE CROSS POINT” to #02. [Button #02] 33. Assign “OUTPUT VOLUME” to the knob and select ASSIGNED CH “05”. Click “NEXT” button. 23/40...
  • Page 24 34. Setting of the third ZM-9014[5]. 35. Assign “CHANGE CROSS POINT” to #01 and click the button circled with red. 24/40...
  • Page 25 36. Check the box as follows and click “OK” button. 37. As well as #01, assign “CHANGE CROSS POINT” to #02. Button #02 Cross points 25/40...
  • Page 26 38. Assign “OUTPUT VOLUME” to the knob and select ASSIGNED CH “06”. Click “NEXT” button. 39. Setting of the fourth ZM-9014[6]. 26/40...
  • Page 27 40. Assign “CHANGE CROSS POINT” to #1 and click the button circled with red. 41. Check as follows and click “OK” button. 27/40...
  • Page 28 42. As well as #01, assign “CHANGE CROSS POINT” to #02. [Button #02] 43. Assign “OUTPUT VOLUME” to the knob and select ASSIGNED CH “07”. Click “NEXT” button. 28/40...
  • Page 29 44. Setting of the first ZM-9012[7]. 45. The fourth ZM-9012[7] manages output volume of Warehouse/ Storeroom. Check the appropriate points as follows and click “FINISH” button. 29/40...
  • Page 30 46. Move on to “Paging” Setting. Click “Paging” button. 30/40...
  • Page 31 47. Paging setting screen appears. 48. Select a trigger from “TRIGGER” combo box and check at OUTPUT Ch. as follows. No.1 >> IN3 TRIGGER >> ZP(MANUAL) No.2 >> IN4 TRIGGER >> C-IN1 LIFO No.3 >> IN5 TRIGGER >> C-IN2 LIFO For No.2, check the boxes of all OUTPUT channels.
  • Page 32 49. Setting of PBX. Click the “ZP-Setting” box. 50. Select “MANUAL” on the left side, RING SIGNAL for MODE and 10min for CONNECT TIME. 32/40...
  • Page 33 51. When click the “X POINTS” area, “Setting view” will change as below. 33/40...
  • Page 34 52. Setting for “Scene 1”. Check the appropriate points. 53. Freely adjust the volume, Compressor, Equalizer setting. <Sample screen of Output EQ setting> 34/40...
  • Page 35 <Sample screen of Output DELAY setting> 35/40...
  • Page 36 54. Save all the above settings as Scene 1. 36/40...
  • Page 37 55. Click ”Communication” on menu bar and select “Serial Setting Wizard”. 56. Check the connection between PC and 9000M2 unit. Click the “NEXT” button. 37/40...
  • Page 38 57. Confirm and select the baud rate of 9000M2 unit. Click the “NEXT” button. 58. Click the “NEXT” button. 38/40...
  • Page 39 59. Show below is the last screen. 60. If the test is finished successfully, click “OK”. 61. Click “Communication” on the menu bar, select “Upload PC to 9000” and “All Data”. 39/40...
  • Page 40 62. A progress bar is displayed during communications. *If communication is completed, the progress bar dialog is closed and downloading is completed. 40/40...
