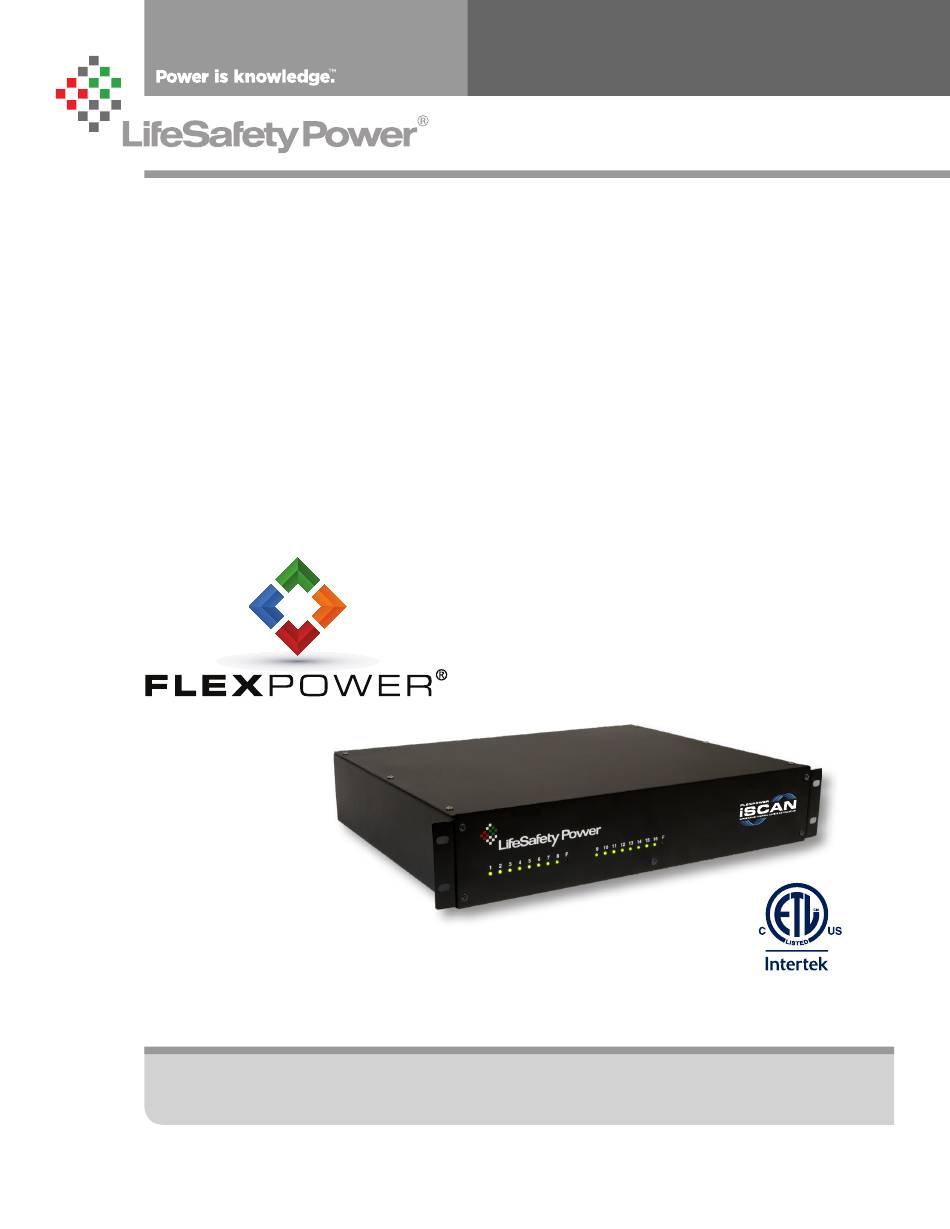

- Page 1 RS Rackmount Installation Manual LifeSafety Power, Inc. | PH 888.577.2898 | TechSupport@LifeSafetyPower.com P03-048 Rev A03...
-
Page 2: Table Of Contents
RS Series Rackmount Installation Manual Table of Contents Notes and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii Symbol Definitions . -
Page 3: Notes And Warnings
Notes and Warnings Symbol Definitions Regulatory Information The following symbols are used throughout this manual The equipment discussed within this manual has been test- ed to the following standards: This symbol is intended to alert the installer of shock hazards within the enclosure . Service should only be •... -
Page 4: Introduction
RS Series Rackmount Installation Manual Introduction Product Description iSCAN RS Rackmount series of power installation and service costs . Features include removable FLEXPOWER sup plies provide Network Managed DC Lock or Camera terminal strips for field wiring, input and output surge sup- power for lifesafety applications . -
Page 5: Section 1 - Installation & Operation
Installation and Operation Section 1 – Installation & Operation The following pages cover the installation of the ISCAN rack-mountable power supplies . 1 .1 Mounting the Rackmount Supply into a Standard 19" Rack Use the following procedure when mounting an ISCAN- NOTE: Use rails or other appropriate support for heavy series supply into a standard EIA 19"... -
Page 6: Iscan Rs Rackmount Power Supply Overview
RS Series Rackmount Installation Manual 1 .2 ISCAN RS Rackmount Power Supply Overview CONTROLLED OUTPUTS 1 CONTROLLED OUTPUTS 2 MAIN OUTPUT 2 MAIN OUTPUT 1 + – + – + – + – + – + – + – + –... - Page 7 Installation and Operation The following are basic descriptions . Refer to the appropriate section for more detailed information . Note that the front and back panels may appear different based on the configuration of your system . • DC2(±) —This is an FAI-controllable bulk power output Main AC Power Switch / Circuit Breaker with the full power of the associated power supply available This is the main AC power switch for the enclosure .
-
Page 8: Internal Pre-Configuration
RS Series Rackmount Installation Manual 1 .3 Internal Pre-Configuration Configuration internal to the enclosure is required on setting the output voltage . ISCAN power supplies prior to installation into a rack . En- 1.3.4 Enabling or Disabling Battery Presence Detection sure all power is disconnected before performing this initial configuration . - Page 9 Installation and Operation B100 230VAC Jumper Earth GND Battery DETECT Voltage SELECT Figure 3 - Configuring the Internal ISCAN Power Supplies cut jumper for 230VAC AC Input AC ON AC ON AC Input FPO150, 250 FPO75 cut jumper...
-
Page 10: Making The Wiring Connections
RS Series Rackmount Installation Manual 1 .4 Making the Wiring Connections Field wiring connections are made on the rear panel after in- DC1+, DC1– stalling the iSCAN enclosure into the rack . Field wiring connec- The main DC output of the FPO power supply . The full cur- tions are made to the removable terminal strips, which accept rent of the FPO is available on these terminals at all times AWG 12-22 wire . - Page 11 Installation and Operation Activation with a Normally Open Relay Contact Activation with a Voltage Input FAI Activates when the NO contact CLOSES . FAI Activates when voltage is APPLIED in the correct po- larity . FAI Deactivates when voltage is REMOVED or the FAI Deactivates when the NO contact OPENS .
- Page 12 RS Series Rackmount Installation Manual 1.4.2 Main AC Power Connection 1.4.3 Ethernet Connection To connect the iSCAN RS Series to the main AC power All iSCAN RS Rackmount products contain a Netlink commu- source, plug one end of the included computer-style AC nication Ethernet module .
-
Page 13: Section 2 - Configuration And Usage
Configuration and Usage Section 2 – Configuration and Usage This section describes the final configuration as well as operation details for the iSCAN RS Rackmount series power supplies . 2 .1 Removing the Faceplate of the Enclosure • Slow Flashing (1 per second) – Door Unlocked (either due to Use the following steps to remove the faceplate of the rack- Zone Input or FAI) -
Page 14: Section 3 - Electrical Specifications
RS Series Rackmount Installation Manual Section 3 – Electrical Specifications 3 .1 Electrical Specifications ISCAN RS Power Supplies Specifications RS75 Series RS75B Series RS150 Series RS150B Series AC Input Voltage 120/230VAC 120/230VAC 120/230VAC 120/230VAC ±15% at 50-60Hz ±15% at 50-60Hz ±15% at 50-60Hz ±15% at 50-60Hz Power... -
Page 15: Electrical Specifications - Continued
Electrical Specifications 3 .1 Electrical Specifications - continued ISCAN RS Power Supplies Specifications RS250 Series RS250B Series AC Input Voltage 120/230VAC 120/230VAC ±15% at 50-60Hz ±15% at 50-60Hz Power 300 Watts 300 Watts Standby Current 100mA 100mA Rated Current for Current 2 .5A maximum from 2 .5A maximum from... - Page 16 Conditions of Sale for this product, and in no case will LifeSafety Power or its distributors be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of the product. Specifications are subject to change without notice.
