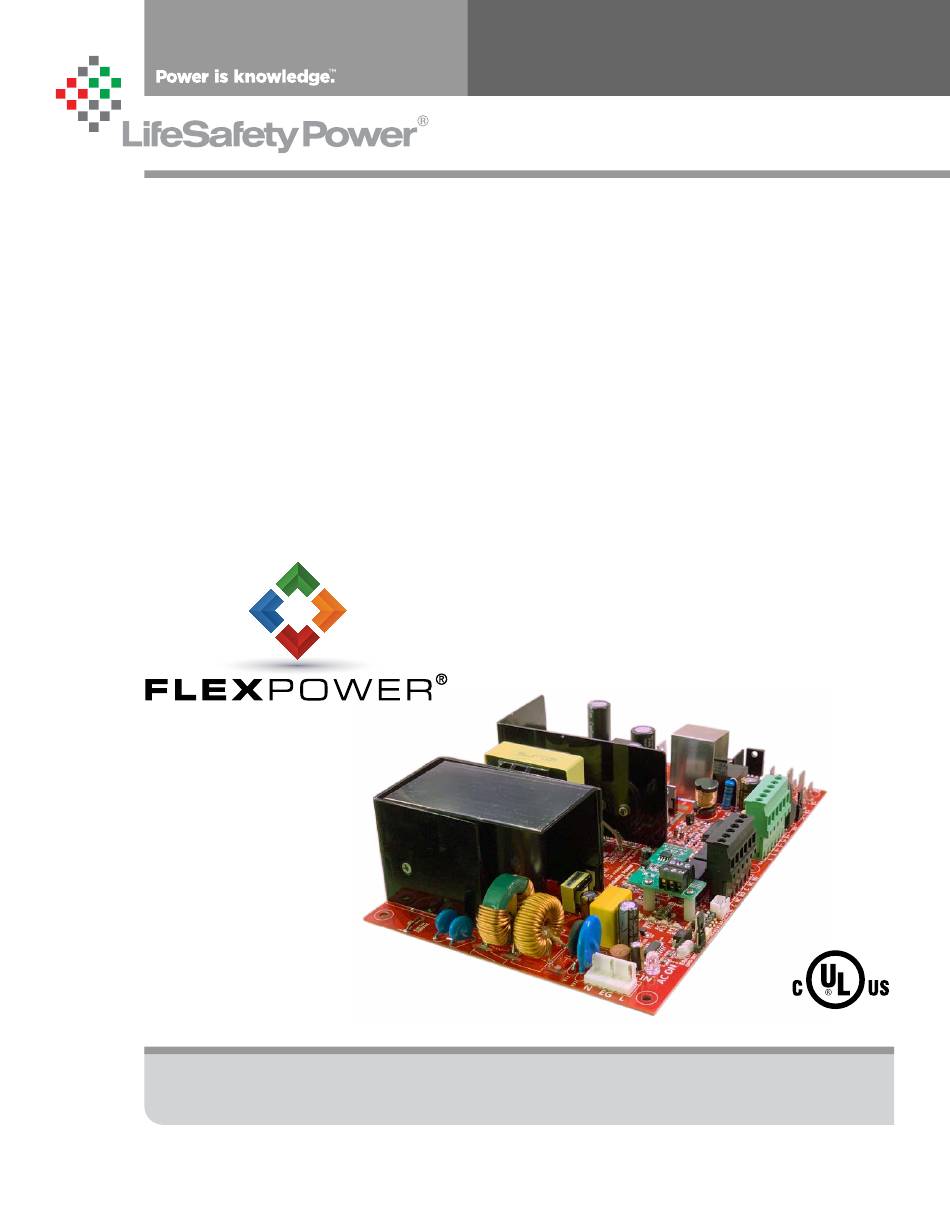

- Page 1 FlexPower Generation 2 DC Power System Installation Manual LifeSafety Power | PH 888.577.2898 | TechSupport@LifeSafetyPower.com P03-040 Rev A24...
-
Page 2: Table Of Contents
FlexPower Generation 2 DC Power System Installation Manual Table of Contents Notes and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii Symbol Definitions . -
Page 3: Notes And Warnings
Notes and Warnings Symbol Definitions installed within the controlled/protected area • The Genetec Monitoring Console Software “Security Cen- The following symbols are used throughout this manual: ter” installed into ITE Listed equipment shall be used, along with Genetec's ULC/EN Security Center Configuration Guide This symbol is intended to alert the installer of shock hazards (EN .702 .039) within the enclosure . -
Page 4: Power Supply Quick Start
FlexPower Generation 2 DC Power System Installation Manual Power Supply Quick Start This section gives a quick visual guide of installation connections and settings for installers already familiar with the FlexPower line of power supplies . For full information, please read this entire manual before installing . -
Page 5: Section 1 - Installation And Operation
Use the following procedure when mounting an FPO power Male to female Stando supply to a LifeSafety Power enclosure (figure 2) . 1 . Locate the appropriate mounting holes in the enclosure and snap the four or six standoffs provided into the holes . - Page 6 FlexPower Generation 2 DC Power System Installation Manual FPO75 REV BAT TB0006 120/230VAC Observe battery polarity Observe battery polarity or damage may result or damage may result Cut for 230V Cut for 230V Scan QR Code for alternate jumper location ...
-
Page 7: Jumper / Led / Connector Descriptions
FPO power supply . Voltage settings are labeled on the PC board This connector allows connection of an external AC ON indicator in as follows: rack mount applications . Only a LifeSafety Power AC LED should be • 12 12VDC nominal out • 24 24VDC nominal out connected . - Page 8 FlexPower Generation 2 DC Power System Installation Manual FPO75 REV BAT TB0006 120/230VAC Observe battery polarity Observe battery polarity or damage may result or damage may result Cut for 230V Cut for 230V Scan QR Code for alternate jumper location ...
- Page 9 Installation and Operation • DC2 This faston provides an FAI controlled output that oper- DataLink (SPI) Connection ates in conjunction with the DC2 output terminals . This con- This is the connector for the DataLink connection . It allows optional nection is typically only used in single voltage systems with D8 programming and monitoring of the FPO power supply via an optional accessory boards .
-
Page 10: Fai Input Usage
FlexPower Generation 2 DC Power System Installation Manual 1 .3 FAI Input Usage This section provides more detailed information on the connection and usage of the FAI input . Activation with a Normally Open Relay Contact Latching the FAI Input... -
Page 11: Typical Installation & Wire Routing
Installation and Operation 1 .4 Typical Installation & Wire Routing AC Input Wiring AC Input Wiring Class Class FPO75 FPO150 FPO250 The drawing above shows a typical installation . • Any wiring passing through knockouts in the bottom or top surfaces of the enclosure must be enclosed in rigid Actual configuration and wire routing will vary based on or flexible metal conduit . -
Page 12: Terminal Strip
FlexPower Generation 2 DC Power System Installation Manual 1 .5 AC Terminal and Switch Wiring Some LSP enclosures contain a lighted AC disconnect switch and a terminal strip for the primary AC connection . The dia- gram below shows the connections for the switch and AC Input terminal strip . See the instructions for FERRITE-BOXED for CE compliant installations . -
Page 13: Power-Up And Basic System Verification Checklist
Installation and Operation 1 .7 Power-Up and Basic System Verification Checklist 1 . Ensure proper configuration of all jumpers and 8 . If the battery presence jumper is enabled, remove switches . one lead from the battery – verify that the yel- low “SYS FLT”... -
Page 14: Section 2 - Using An Fpo Power Supply With A Netlink
FlexPower Generation 2 DC Power System Installation Manual Section 2 – Using an FPO Power Supply with a NetLink When an FPO power supply is connected to a NetLink network communication module, the power supply can be monitored and controlled remotely through the NetLink's browser interface . To access the page for an FPO power supply, click on the device in the Netlink Connected Devices section of the home page . - Page 15 Installation and Operation 2.1.1 FPO Monitoring & System History Any FPO power supply connected to a NetLink will provide the following parameters (Figure 2 .1): Device ID This is the identifying label for the device . The FP-xx label is given by the Netlink and is not user settable . Also displayed is the model number of the power supply .
-
Page 16: Battery Status
FlexPower Generation 2 DC Power System Installation Manual 2.2 Battery Status The middle section of the screen shows detailed battery status and parameters . (Figure 2 .1) This section will only be enabled if a bat- tery is connected to the power supply (See Section 1 .2 #20) . - Page 17 Installation and Operation 2.2.2 Battery Test The Battery Test section allows the user to test the actual runtime of a system with the installed battery set . (Figure 2 .3) . This test may be run manually or may be scheduled for a one-time or repeating automated test . If email is configured on the Netlink, a report of the results can be emailed .
- Page 18 FlexPower Generation 2 DC Power System Installation Manual Figure 2.4 - Battery Test in Progress Figure 2.5 - Typical FPO Power Supply Page (bottom portion)
-
Page 19: Power Supply Settings
Installation and Operation 2.2.3 Battery Settings The Battery Settings block is under the Battery Test block on the power supply page (See Figure 2 .5) . The available settings are as follows: Required Battery Enter the required standby time for the application . This number is only used for comparison to the Runtime measured standby time at the conclusion of a battery test . -
Page 20: Section 3 - Troubleshooting And Maintenance
High or Low Output Voltage • Measure the output voltage at the DC1 terminals . The voltage should be 12 .50V for the 12V setting or 25 .00V for the 24V setting (±10%) . Contact LifeSafety Power if the voltage is outside of this range Blown Fuse •... -
Page 21: Maintenance Instructions
Troubleshooting Section 3 – Troubleshooting and Maintenance 3 .1 Troubleshooting Table (continued) Symptom Possible Problem Information / Possible Solution No DC2 Output Output disabled due to FAI • The DC2 output is disabled when the FAI input is active . Verify the red DC2 LED Extinguished FAI LED is extinguished . -
Page 22: Section 4 - Specifications
FlexPower Generation 2 DC Power System Installation Manual Section 4 – Specifications 4 .1 Electrical Specifications FPO Power Supplies Specifications FPO75 FPO150 FPO250 AC Input Voltage 120VAC or 230VAC 120VAC or 230VAC 120VAC or 230VAC +10%/-15% at 50- +10%/-15% at 50-... -
Page 23: Temperature Specifications
Specifications Section 4 – Specifications 4 .2 Temperature Specifications All Models Ambient Temperature 0°C to 49°C (32°F to 120°F) Ambient Humidity 93% at 32°C (90°F) maximum Storage Temperature –30°C to 70°C (–22°F to 158°F) 4 .3 Mechanical Specifications Visit www .lifesafetypower .com for AutoCAD files . Power Supply Board - FPO75 Size 6 .00"... -
Page 24: Replacement Parts
FlexPower Generation 2 DC Power System Installation Manual Section 4 – Specifications 4 .4 Replacement Parts Board Kits Description FPO250 FPO250 replacement board FPO150 FPO150 replacement board FPO75 FPO75 replacement board B100 DC-DC Convertor (12VDC or adjustable 5 to 18VDC) replacement board... -
Page 25: Appendix 1 - Tamper Switch Wiring
Tamper Switch / User Certificate Appendix 1 – Tamper Switch Wiring All FlexPower DC systems with an enclosure include a normally closed tamper switch for monitoring by the host panel . The tamper switch can either be brought into a dedicated input in the panel (see the panel's instructions), to the Event 1 input of a Netlink Network Module (See the Netlink's Instruction Manual), or the tamper switch may be series connected into the System... -
Page 26: Appendix 3 - Agency Compliance Requirements
CE requirements . FPO75 models do not require these components for CE compliance . LifeSafety Power FPO power supplies which are preset for 230VAC include FERRITE-BOXED in the accessory bag . FERRITE-BOXED is also available separately for purchase and includes two ferrites and one inductor . - Page 27 UL Compliance Verification...
- Page 28 Conditions of Sale for this product, and in no case will LifeSafety Power or its distributors be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of the product. Specifications are subject to change without notice.
