Page 1: User Manual

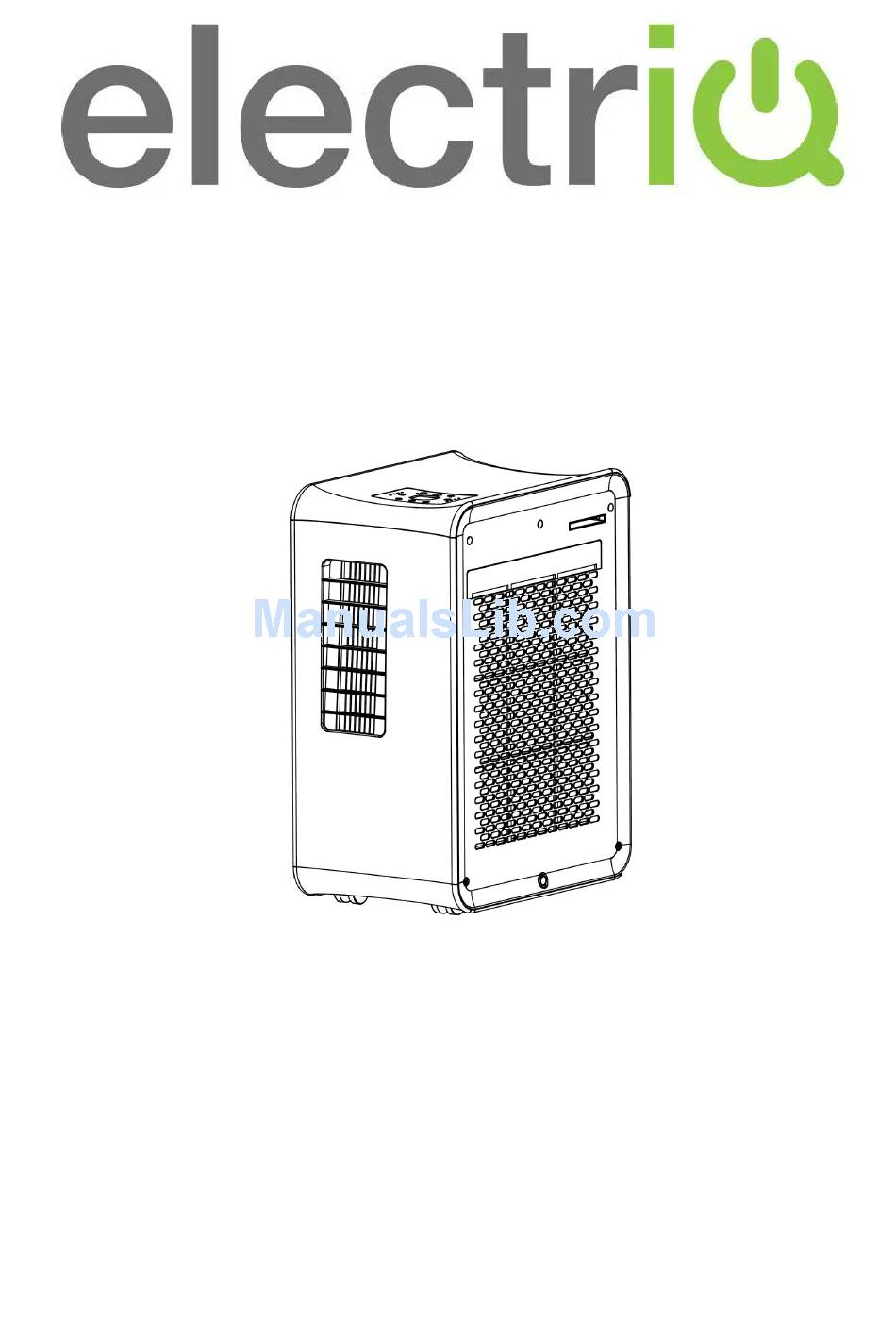

USER MANUAL Thank you for choosing ElectrIQ. Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals Page 1 of 13... -
Page 2: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ………………………………….. 2 FEATURES AND PARTS LIST …………………………..3 INSTALLATION …………………………………. …………. 4 OPERATION AND SETTINGS …………………………….. 5 WATER-DRAINAGE …………………………………………. 6 MAINTENANCE ……………………………………………… 7 TROUBLE SHOOTING …………………………………. …. 8 APPENDIX ……………………………………………………. Page 2 of 13... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unt. Note: This AC is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. •... -
Page 4: Features And Parts List
FEATURES AND PARTS LIST 1. Features ® Part of ElectrIQ AirCube range of Intelligent Air Conditioning products Cooling, Heating and Dehumidifying for all around the year use Improves comfort and indoor air quality Self-evaporative system - no external water tank needed Compact, designer inspired luxury model Digital Control Panel with side vents to prevent dust and dirt entering the machine. - Page 5 INSTALLATION Warning Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface.
-
Page 6: Installation
Assemble hose fish tail adaptor: Prepare both parts of hose adaptor and clip them together. Do not push too hard as this may cause damage. Extend one head of the hose and screw the adaptor to it. Note: to screw it into place should take no less than three rotations Installation of window kit Partially open the window and then fix the window kit to the window... -
Page 7: Operation And Settings
OPERATION AND SETTINGS This portable air conditioner boasts four functions: cooling, heating, dehumidifying and fan. The fan has three speeds: high, medium and low Temperature range settings are: 18--30 The unit will also display operating function, temperature, fault diagnostic and protective functions on the LED screen. - Page 8 Press the icon to select your desired operating times. Use the TIMER button to adjust hours You can only set the auto-shut off timer while the unit is operating (on) You can only set the auto-start timer while the unit is in standby (off) You can set the function and fan speed while setting the timer.
-
Page 9: Water-Drainage
3. Multi protective function 3.1 Anti-freezing protecting control: When the ambient temperature is low while in Cooling Mode, the compressor and water pump will stop working if the copper coil temperature is too low. When the copper coil temperature increases, the protection will be stopped automatically. 3.2 Water-full protection: When the water level in the internal water tank is surpassing the maximum level, the unit will alert automatically and E4 will be displayed on the LED screen. -
Page 10: Maintenance
2.1 Remove the water plug 2.2 Use a water pipe to connect to the water outlet. 2.3 You can plumb this pipe into your current plumbing system, lead it outside or use a water pump. Note When the unit is in the cooling function, it is recommended not to have the drain pipe installed. Please make sure that the rubber cap is in place when the unit is running. -
Page 11: Trouble Shooting
End of Season Maintenance 1. Pull out the plug from the drainage hole and empty the internal tank. You can also drain the water by leaning the unit. 2. Then switch the unit to low fan mode 3. Keep the unit in this mode for half day - until the conduit is dried. Doing this helps to keep the inside of the unit dry and prevents mold developing Turn off the unit and pull out the plug. -
Page 12: Appendix
APPENDIX Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. - Page 13 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
