RS232 (RJ-45) PIN ASSIGNMENT
PIN MAP

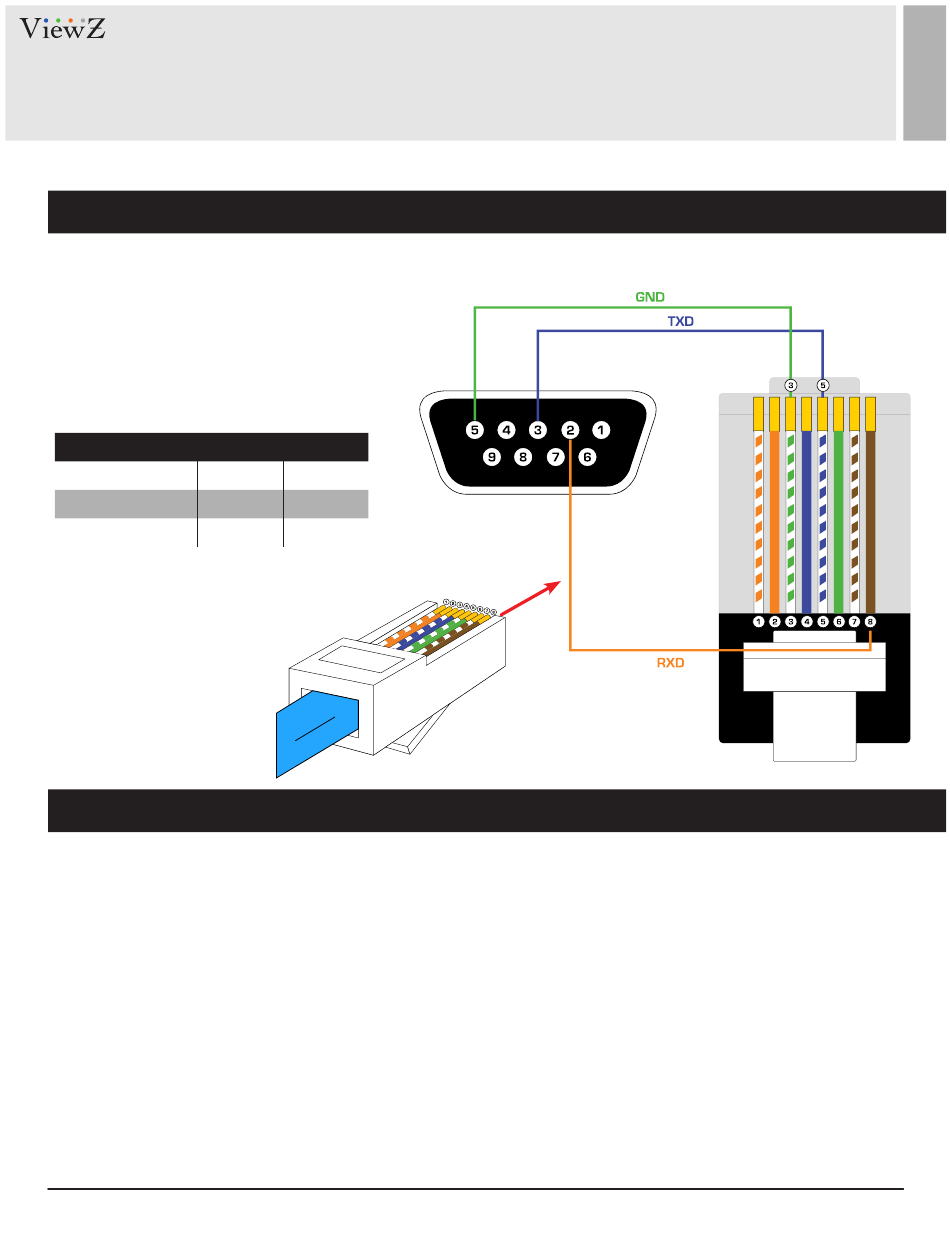

The following image is the description of RJ45 PIN MAP
RS232 (DP9)
RXD (Received Data)
TXD (Transmitted Data)
GND (Groud)
POWER On/Off RS 232 Communication Command & Relevant Configurations
In consideration of secondary development of centralized control circumstances, the POWER ON/OFF function of RS232
communication command & relevant configuration setup are described as follow:
• RS 232 communication settings
Baud rate : 9600 bps
Parity check bit : none
Data bit : 8 bits
Stop bit : 1 bits
• POWER ON/OFF RS232 communication command
POWER ON - RS232 command: 0 x 00
POWER OFF - RS232 command: 0 x 01
DP - RS232 command: 0 x 02
The above commands are hexadecimal.
22
RJ45
2 8
3 5
5 3
Visit the ViewZ USA website at https://www.viewzusa.com
RJ45 Connector
HDMI1 - RS232 command: 0 x 03
HDMI2 - RS232 command: 0 x 04
DVI - RS232 command: 0 x 05
