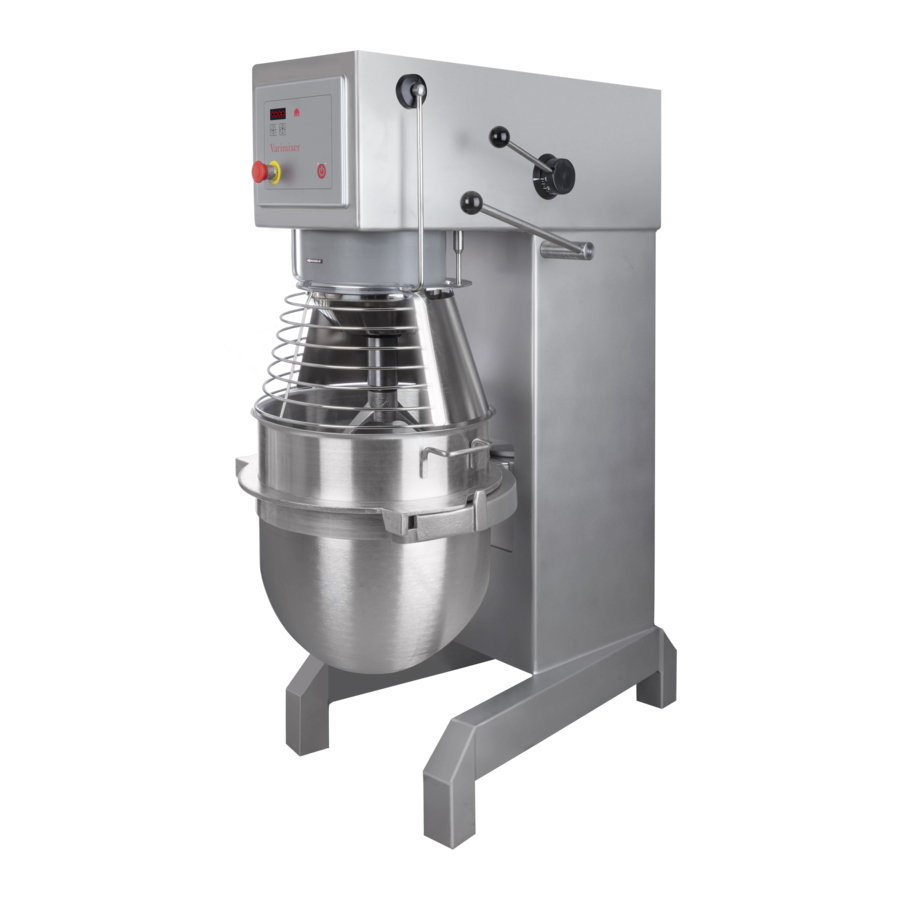

Varimixer V80 Operating Instructions Manual
Hide thumbs
Also See for V80:
- Spare part and operation manual (40 pages) ,
- Operating instructions manual (44 pages)
Related Manuals for Varimixer V80
Summary of Contents for Varimixer V80
- Page 1 Operating Instructions V8 0 V8 0PL Valid from machine number: V80 : 80002012 V 10 0PL V100 :100002125 Varimixer USA DRN: 20080-1536 2215 East River Road P: (800) 222-1138 2022 10 31 Moraine, Ohio 45439 varimixerusa.com...
- Page 2 1 year warranty that only covers parts. Warranty begins on date of factory shipment to an end user, or up to 6 months after factory shipment to a dealer or distributor. Payment by VARIMIXER for service under this warranty requires that service be authorized in advance.
- Page 3 The manufacturer may update the product manual without updating this copy of the manual. - Varimixer recommends all operators must be at least 18 years of age. - All operators must be thoroughly trained before being allowed to operate the mixer.
-
Page 4: Table Of Contents
Contents: General ............................2 Unpacking............................2 Safety ..............................3 Installation of the Mixer........................3 Cleaning ............................4 Ingredient chute ..........................4 The maximum capacity of the Mixer ....................5 Recommended maximum speeds ....................5 Operating the mixer .........................6 Operating the frontpanel ........................7 Construction of the Mixer.........................8 Maintenance and lubrication......................8 Adjustment of special V-belt ......................9 Adjustment of speed ........................9 Adjustments of speed (low and high speed cam disks)..............10... -
Page 5: Safety
The mixer must not be pulled or lifted by the Before the mixer is connected to power, it should be checked bowl lift handle (V80 only) and speed selection that the voltage and frequency printed on the machine label handle. -
Page 6: Cleaning
The machine should never be rinsed with a hose. To assist in the preparation of customer-specific cleaning plans, Varimixer A/S has, based on current legislation, prepared detailed cleaning instructions, included at the end of this manual and the latest version can be found at varimixer.com... -
Page 7: The Maximum Capacity Of The Mixer
The maximum capacity of the mixer: Capacities per mix Tool V100 AR = Absorption Ratio Egg whites Whip (Liquid in % of solids) Whipped cream Whip Calculation AR Buttercream frosting Whip *) 1 lb of solids and 0,6 qt of liquid: Mashed potatoes Beater *) AR = 0,6 x 100 = 60%... -
Page 8: Operating The Mixer
For machines with outlets for mounting a meat mincer or vegetable cutter, the following must be observed: Only use accessories intended for the ma- chine, Varimixer original accessories are a guarantee for optimal operation and security. Basic mixer Always read and follow the operation instruc- Bowl lowering tions for the tool. -
Page 9: Operating The Frontpanel
Operating the frontpanel: Power OFF the mixer Push the emergency stop. Power ON the mixer Turn the emergency stop clockwise. Timer [mmss] Reset the timer by press- (Power lift) Bowl down ing the two timer buttons at the same time. Time is shown in minutes and (Power lift) Bowl up seconds. -
Page 10: Construction Of The Mixer
Construction of the mixer: Speed indicator Motor Safety switch for safety guard Safety switch for bowl lift (VL-1L, VL-1S) Power supply Motor relay / Motor protection relay Prior to repair or adjustment, switch off the mixer by disconnecting the power cable. Maintenance and lubrication: The infinitely variable gear must be lubricated regularly, i.e. -
Page 11: Adjustment Of Special V-Belt
Grease types: Grease for the pulley set shafts: TOTAL MULTIS XHV 2. Repair of the planetary head: Grease the toothed wheel and the toothed rim, only with CASTROL Molub- Alloy OG 936 SF Heavy. Repair of the attachment drive: Fill the attachment drive with 0.35 L TOTAL CERAN CA. -
Page 12: Adjustment Of Bowl Fixing
Adjustment of bowl centering: First find the present bowl centering: mount the beater and Fig. 6b the bowl, then raise the bowl arms up to normal working Adjustment of bowl centering and bowl fixing position. With your hand turn the beater, and then measure the distance between beater and bowl edge. -
Page 13: Adjustment Of Bowl Height
Adjustment of bowl height Adjustment of bowl height (Basic mixer): (Power lift): Lower the bowl arms down on a wooden block so that the The upper and lower position of the bowl is determined by weight of the bowl arms are not loading the lifting system. the switch top (1), (Fig. -
Page 14: Error Codes
List of errors: Possible solution: (In case of other errors, contact the supplier.) Adjustment of special V-belt A rattling sound from the closed part of the mixer. "The mixer starts “striking” when kneading dough Adjustment of special V-belt which normally causes no problems." The mixer changes its speed by itself. -
Page 15: Manual Reset Of Motor Protection Relay
Manual reset of motor Push the red button protection relay, (Basic mixer): The motor protection relay is located behind the control panel. To access the motor protection relay: Disconnect power from the machine. Dismount the top lid. Unplug cables to control panel. Remove the four nuts holding the control panel, (AF 8 mm) [AF = Across Flats] Dismount the control panel... - Page 16 Principle electrical diagram 1-2, main motor (Basic mixer):...
- Page 17 Principle electrical diagram 1-3, main motor (Power lift):...
-
Page 18: Principle Electrical Diagram
Principle electrical diagram 2-3, (power lift):... - Page 19 Principle electrical diagram, safety circuit (2-2 Basic mixer + 3-3 Power lift):...
-
Page 20: Cleaning Guide
Cleaning guide for Varimixer AR80 and AR100. V80 and V100 A risk assessment must always be used for all cleaning processes involved in food production. Based on current legislation, Varimixer A/S has compiled the table below as an aid to devising customer-specific cleaning plans. The importance of cleaning in individual zones of the mixer is illustrated using colours. - Page 21 316). Acid-proof stainless steel is more corrosion-resistant, and by way of comparison tolerates chloride (Cl concentrations below 50 ppm at temperatures up to 100°C. For more details on cleaning Varimixer A/S mixers, refer to our website: https://varimixer.com/ Version: August 2021...
- Page 22 This page intentionally left blank...
- Page 23 This page intentionally left blank...
- Page 24 Varimixer A/S Elementfabrikken 9 DK-2605 Brøndby P: +45 4344 2288 E: info@varimixer.com www.varimixer.com...
