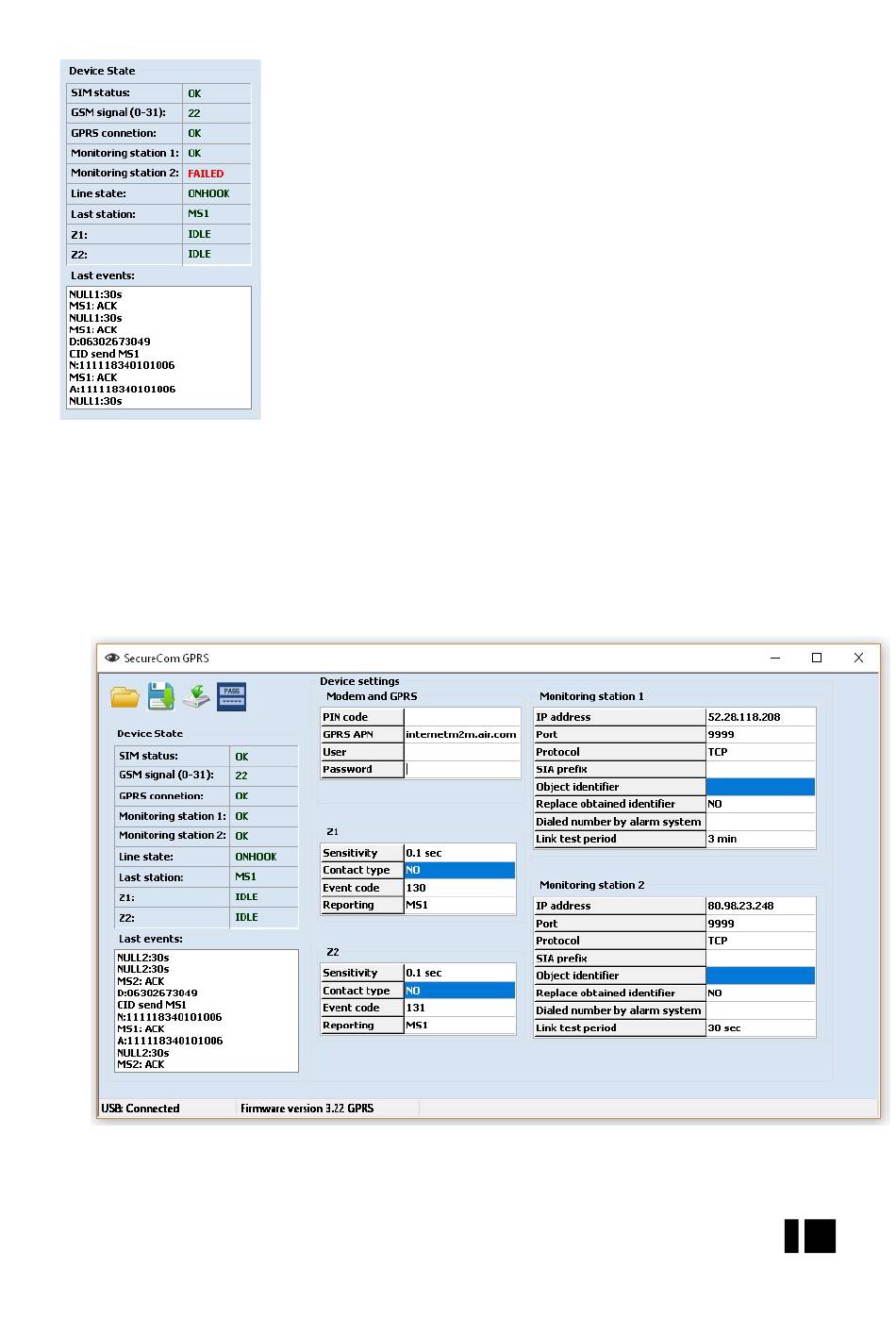

4.5. Parameter settings

All settings from device will be displayed as soon as device is connected. In case of unstable reading,
disconnect the device and connect it again. It will result a new reading and displaying of settings that are
valid in device.
SC-GPRS
Alarm Monitoring Communicator v1.3
Field name Options (description)
SIM status Waiting (connecting...) / OK / PIN request
GSM signal A value between 0 and 31, (12-16 is minimal for reliable functionality)
GPRS connection Cellular data connection (OK/Error -> is linked if the APN is appropriate)
Monitoring station 1 Connection status of MS1 (OK/ Failed)
Monitoring station 2 Connection status of MS2 (OK/ Failed)
Line state ONHOOK / OFFHOOK (emulated phone line idle / active)
Last station: The destination of the last successful report (MS1 or MS2)
Z1 input state IDLE / ACTIVE (Input Z1 idle / active)
Z2 input state IDLE / ACTIVE (Input Z2 idle / active)
Communicational event messages:
D: The number dialed by the alarm control panel
CID The CONTACT ID code sequence sent by the alarm control panel
Z1:A Activated input one
Z1: R Input one got back to default
NULL1:30 Test report to Monitoring Station 1 is 30 sec
MS1: ACK The device got Kissoff from MS1 receiver for test report
N:1111... The device sent a new CID code to receiver
N:1111... The device got Kissoff from MS1 receiver for new CID code
8 EN
