2.

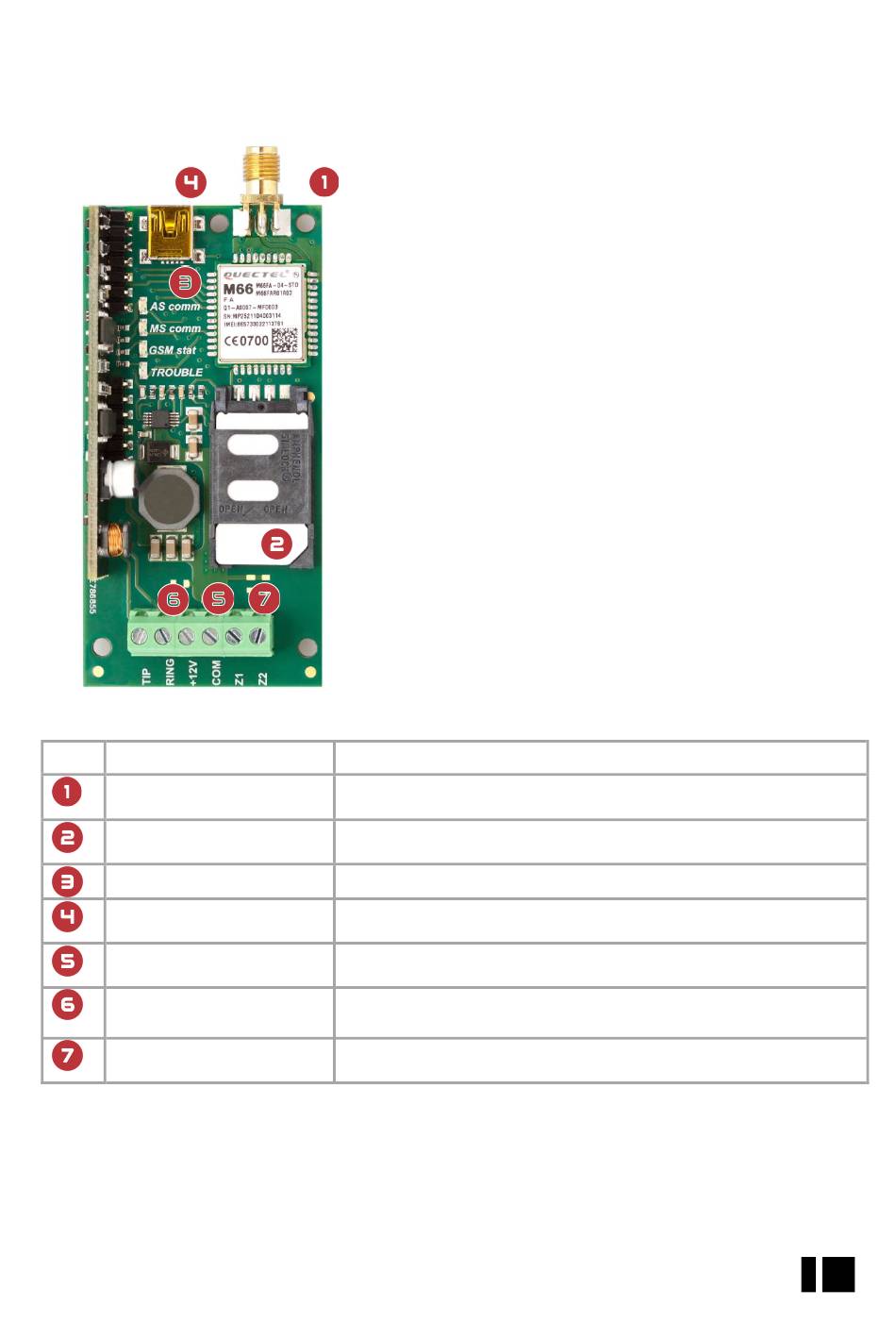

Product layout

Sign Part
ANTENNA CONNECTOR
SIM CARD HOLDER
LED status display
USB CONNECTOR
DC POWER (+12V/COM)
Communication line
(TIP/RING)
INPUTS (Z1, Z2)
SC-GPRS
Alarm Monitoring Communicator v1.3
GSM network antenna
Connector type: SMA, Impedance: 50 ohm, Frequency: 900/1800 MHz
For mobile network connection
Type: GPRS data card, Dimension: 2FF mini SIM
The LED status signals
For parameters setting, the communicator must be connected to the
computer through USB port. Type: USB mini-B
Main power supply
Rated voltage: DC 9-30V, Rated current: max. 500mA
Simulated landline for the alarm control panel's TIP/RING input
Line voltage: 48V, Loop current: 25mA, Impedance: 300ohm
Contact Input (to negative supply "COM" ) for transmission of the signal
of external switches
Description
4 EN
