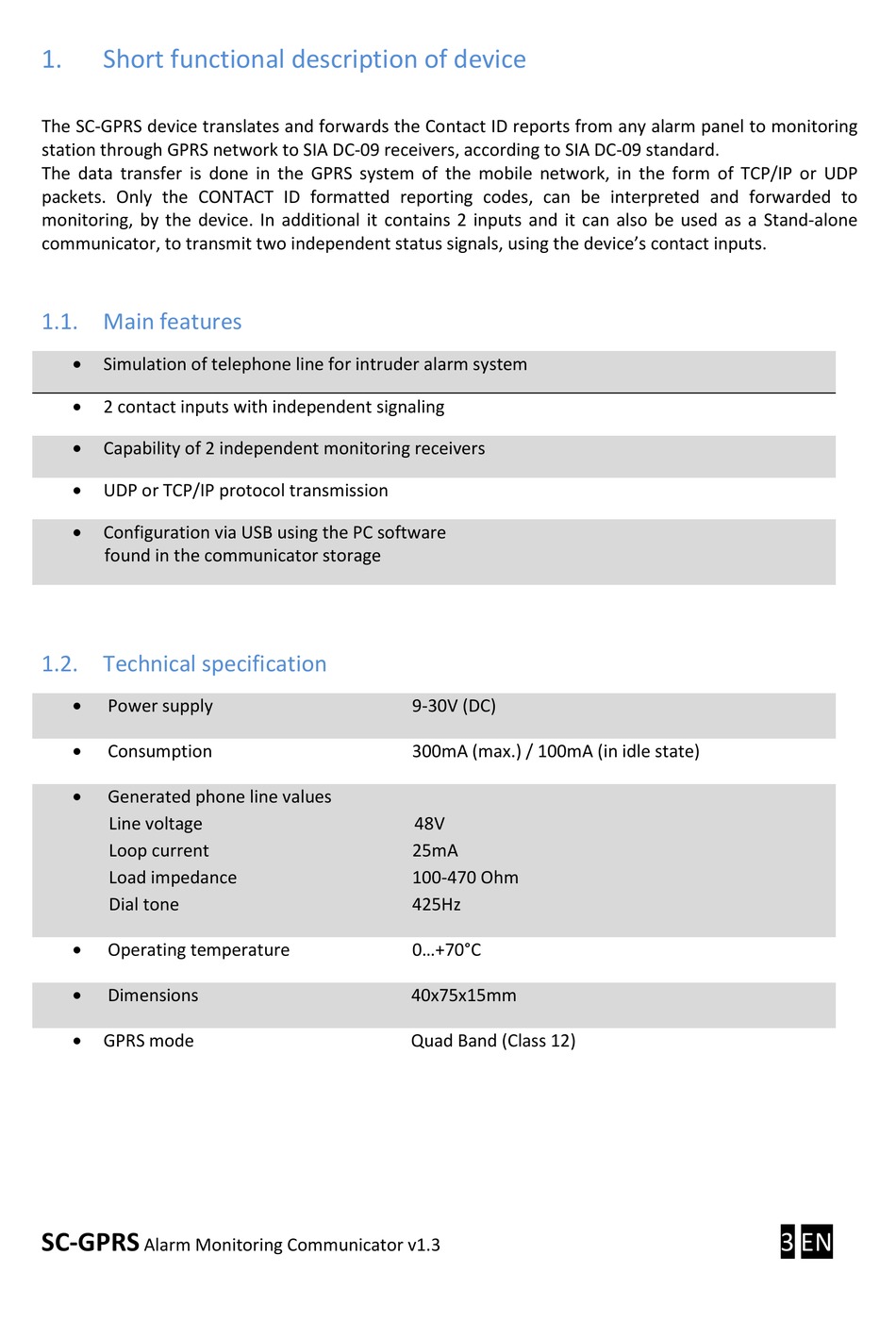

1.

Short functional description of device

The SC-GPRS device translates and forwards the Contact ID reports from any alarm panel to monitoring
station through GPRS network to SIA DC-09 receivers, according to SIA DC-09 standard.
The data transfer is done in the GPRS system of the mobile network, in the form of TCP/IP or UDP
packets. Only the CONTACT ID formatted reporting codes, can be interpreted and forwarded to
monitoring, by the device. In additional it contains 2 inputs and it can also be used as a Stand-alone
communicator, to transmit two independent status signals, using the device's contact inputs.

1.1. Main features


Simulation of telephone line for intruder alarm system

2 contact inputs with independent signaling

Capability of 2 independent monitoring receivers

UDP or TCP/IP protocol transmission

Configuration via USB using the PC software
found in the communicator storage

1.2. Technical specification


Power supply

Consumption

Generated phone line values
Line voltage
Loop current
Load impedance
Dial tone

Operating temperature

Dimensions

GPRS mode
SC-GPRS
Alarm Monitoring Communicator v1.3
9-30V (DC)
300mA (max.) / 100mA (in idle state)
48V
25mA
100-470 Ohm
425Hz
0...+70°C
40x75x15mm
Quad Band (Class 12)
