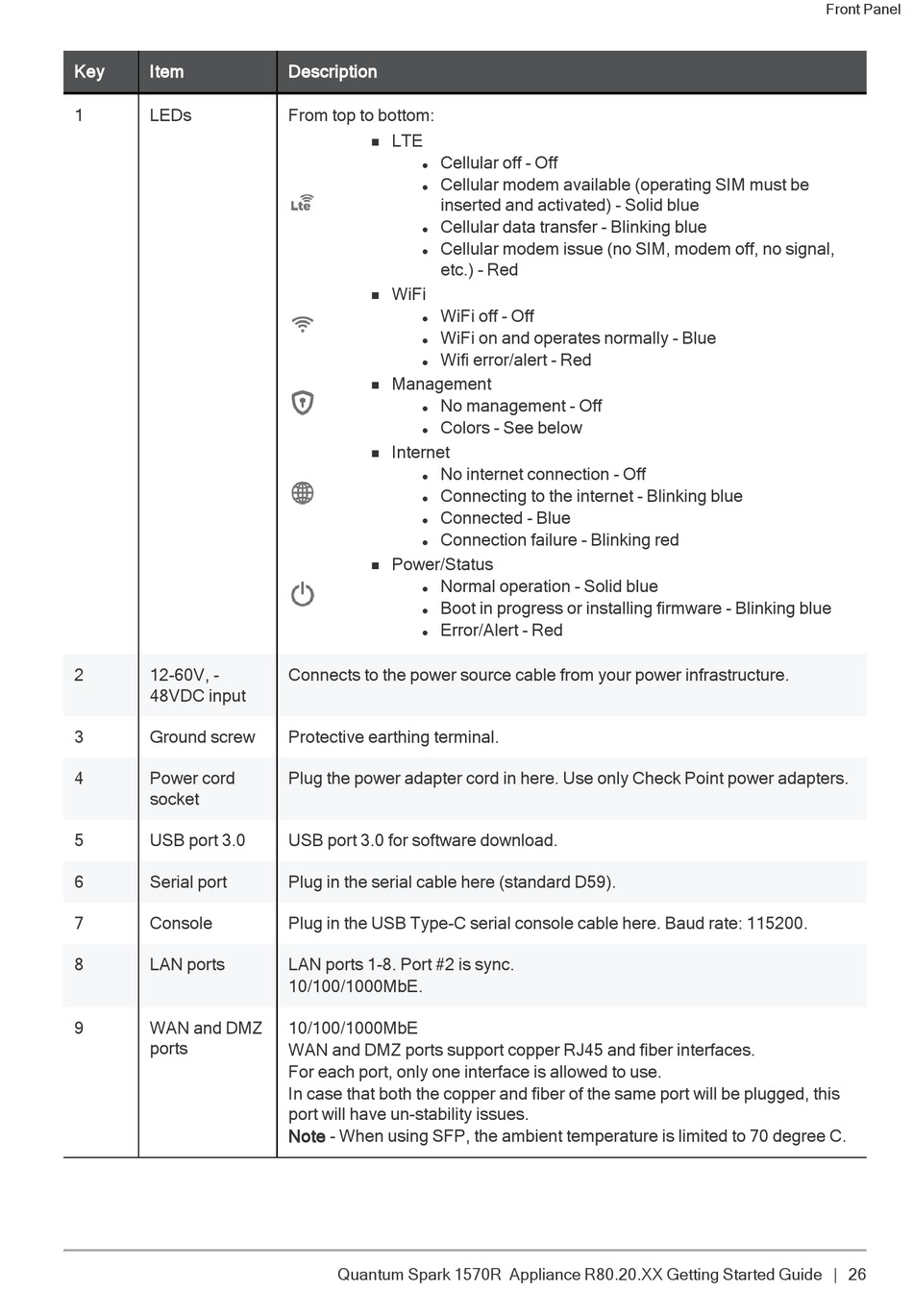

Check Point Quantum Spark 1570R Getting Starded Manual page 26

Key Item
1 LEDs
2 12-60V, -
48VDC input
3 Ground screw
4 Power cord
socket
5 USB port 3.0
6 Serial port
7 Console
8 LAN ports
9 WAN and DMZ
ports
Description
From top to bottom:
LTE
n
Cellular off - Off
l
Cellular modem available (operating SIM must be
l
inserted and activated) - Solid blue
Cellular data transfer - Blinking blue
l
Cellular modem issue (no SIM, modem off, no signal,
l
etc.) - Red
WiFi
n
WiFi off - Off
l
WiFi on and operates normally - Blue
l
Wifi error/alert - Red
l
Management
n
No management - Off
l
Colors - See below
l
Internet
n
No internet connection - Off
l
Connecting to the internet - Blinking blue
l
Connected - Blue
l
Connection failure - Blinking red
l
Power/Status
n
Normal operation - Solid blue
l
Boot in progress or installing firmware - Blinking blue
l
Error/Alert - Red
l
Connects to the power source cable from your power infrastructure.
Protective earthing terminal.
Plug the power adapter cord in here. Use only Check Point power adapters.
USB port 3.0 for software download.
Plug in the serial cable here (standard D59).
Plug in the USB Type-C serial console cable here. Baud rate: 115200.
LAN ports 1-8. Port #2 is sync.
10/100/1000MbE.
10/100/1000MbE
WAN and DMZ ports support copper RJ45 and fiber interfaces.
For each port, only one interface is allowed to use.
In case that both the copper and fiber of the same port will be plugged, this
port will have un-stability issues.
Note - When using SFP, the ambient temperature is limited to 70 degree C.
