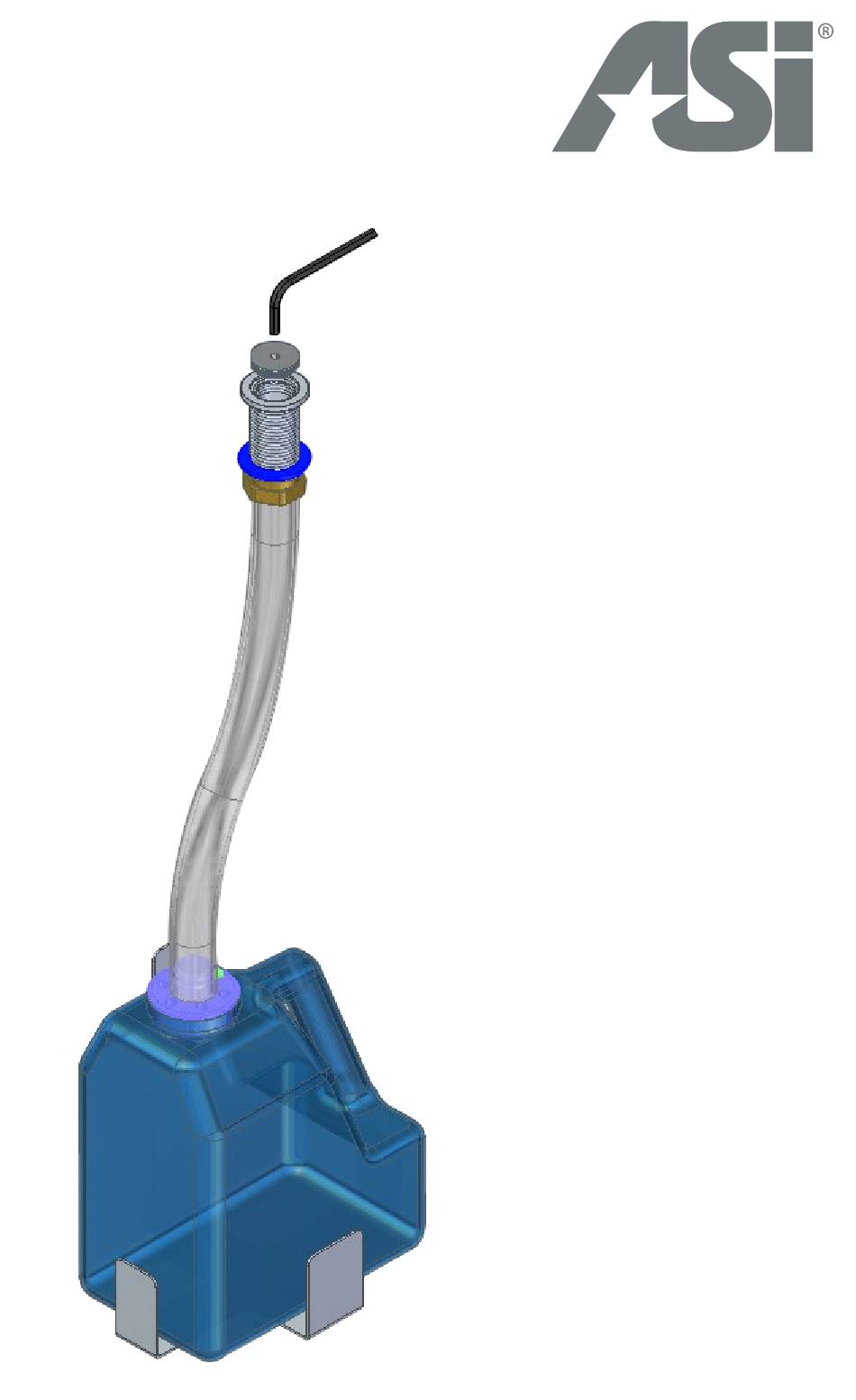

- Page 1 Model 0390 EZFILL™ KIT* EZFILL™ TOP FILL MULTIFEED KIT WITH 1.6 GAL. (6L) CONTAINER INSTALLATION AND MAINTENANCE GUIDE 1311070623 Rev G 2019...
- Page 2 Space Provided For Owner Notes * EZFILL™ KIT pictured with optional mounting bracket (0390-BR). See page 6 2019 1311070623 Rev G...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRE-INSTALLATION INFORMATION PACK CONTENTS TECHNICAL DATA INSTALLATION FILLING THE SOAP TANK MAINTENANCE TROUBLESHOOTING SPARE PARTS LIST WARRANTY 2019 1311070623 Rev G... -
Page 4: Pre-Installation Information
PRE-INSTALLATION INFORMATION CHECK CONTENTS Separate all parts from the packaging and check each part with the PACK CONTENTS section. Make sure all parts are received and separated before discarding any packaging material. If any parts are missing, do not attempt to install the system until you obtain the missing parts. -
Page 5: Pack Contents
PACK CONTENTS EZFILL™ TOP FILL MULTIFEED KIT 0390 Identify the items and confirm that parts are included. ITEMS Name Fill Port Cover, Fill Port Washer, Rubber Washer, SS Nut, M32 Hose Coupling Cap Blank Plug O-Ring, 8 Bushing O-Ring, 50.5 O-Ring, 50.5... -
Page 6: Technical Data
TECHNICAL DATA Recommended hole size 1-5/16” Dia. (Ø33.4) FILL PORT DETAIL min 1-9/32” Dia (Ø32.5) max 1-3/8” Dia (Ø34.9) 1-49/64” Dia. (Ø45) 1-15/64” 5/32” M32 Fill Port Threaded Body (Ø31) O-Ring Flat seal, Rubber 1.89” x 1.32” x 0.12” (Ø48 X Ø33.5 X 3.0) Disk, Stainless Steel 2”... -
Page 7: Coupling Cap
TECHNICAL DATA Coupling Cap (See item 7) Optional Tank Mounting Bracket 0390-BR 2019 1311070623 Rev G... -
Page 8: Installation
INSTALLATION Install the soap fill hose onto the fill port nipple ONLY AFTER THE FILL PORT IS INSTALLED. Cut the soap fill hose to the right length as required by the installation PRIOR TO INSTALLATION. Soap fill hose is provided attached to the soap tank coupling cap nipple. -
Page 9: Filling The Soap Tank
FILLING THE SOAP TANK STEP 1- FILLING THE SOAP TANK Open the top filling cap using the hex key provided. Fill the soap tank with liquid soap until it is full. Refer to ‘Technical Data’ section of this manual for soap specifications. (Page 5) Close the cap after filling. -
Page 10: Maintenance
Puddle of soap SOAP LEAKS ON Damaged tank Replace tank FLOOR on floor SPARE PARTS LIST Bracket for EZFILL™ Multi Feed Tank ..................0390-BR EZFILL™ 5-Liter Plastic Container ..................0390-SCON EZFILL™ Disc Cover for Top-Fill Tube ................... 0390-TMC 2019 1311070623 Rev G... -
Page 11: Warranty
WARRANTY We are pleased to offer this warranty covering ASI products furnished for your project. This warranty replaces any other warranties or product descriptions, whether expressed or implied, written or oral. It is understood that the products for this project have been selected and... - Page 12 441 Saw Mill River Road, Yonkers, NY 10701 . (914)476-9000 . Web: americanspecialties.com 1311070623 Rev G 2019...
