ASI EZFILL 0390-1A Installation And Maintenance Manual

Automatic deck mounted soap dispenser for ezfill top fill multifeed kit with 1.32 gal . (5l) container

Advertisement

Model 0390-(n)*

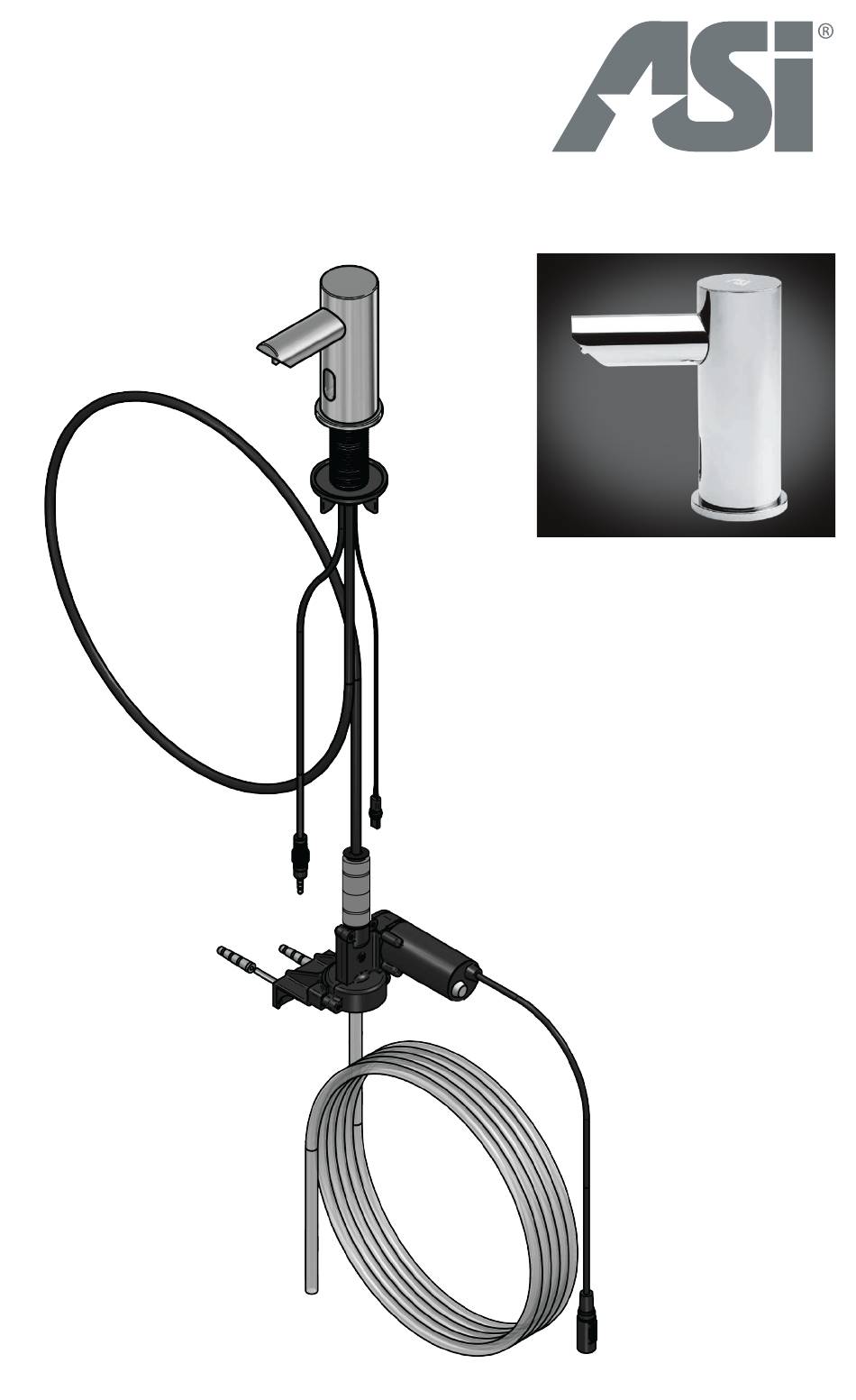

EZFILL™ SOAP DISPENSER
AUTOMATIC DECK MOUNTED
SOAP DISPENSER FOR
EZFILL™ TOP FILL MULTIFEED KIT
WITH 1.32 GAL . (5L) CONTAINER
INSTALLATION AND MAINTENANCE GUIDE
1408201234 Rev J
05 August 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZFILL 0390-1A and is the answer not in the manual?

Questions and answers

Summary of Contents for ASI EZFILL 0390-1A

  • Page 1 Model 0390-(n)* EZFILL™ SOAP DISPENSER AUTOMATIC DECK MOUNTED SOAP DISPENSER FOR EZFILL™ TOP FILL MULTIFEED KIT WITH 1.32 GAL . (5L) CONTAINER INSTALLATION AND MAINTENANCE GUIDE 1408201234 Rev J 05 August 2015...
  • Page 2 INSTALLATION BATTERY REPLACEMENT INSTRUCTIONS MAINTENANCE TROUBLESHOOTING SPARE PARTS LIST WARRANTY 13-14 EZ FILL™ REMOTE CONTROL Unit Install Date Unit Location in Facility Unit S/N (From Label) Supplied By Original PO No. ASI Order No. 1408201234 Rev J 05 August 2015...
  • Page 3 *SUFFIX CODE INDEX AND APPLICATION Schedule of Model № Suffix Codes to replace (n) in Model № and Application Model № Suffix Service Application Universal Model, Battery Operation USA/UK/EU Interchangeable Plug Model, AC Adapter Operation AU Model, AC Adapter Operation Universal Model, Battery Operation, Six Pack 6-1A USA/UK/EU Interchangeable Plug Model, AC Adapter Operation, Six Pack...
  • Page 4: Pre-Installation Information

    PRE-INSTALLATION INFORMATION CHECK CONTENTS Separate all parts from the packaging and check each part with the PACK CONTENTS section. Make sure all parts are received and separated before discarding any packaging material. If any parts are missing, do not attempt to install the system until you obtain the missing parts.
  • Page 5: Pack Contents

    PACK CONTENTS EZFILL™ SOAP DISPENSER 0390-(n) Identify the items and confirm that parts are included. Automatic Body vanity mounting hardware Escutcheon with power cord, Com Cable Flange w/O-Ring w/inline plug connector and Gasket black soap supply tube 1/4” dia. (Ø6) Nylon flex 36” (914) long with connector.
  • Page 6: Technical Data

    TECHNICAL DATA 1-1/2” Dia 2-61/64” AC Adapter Config Plug (Ø38) (75) Per Option (see TDS) 29/32” Dia (Ø23) 4-3/32” 2-7/8” (104) 1-7/32 2” (73) (31) (51) 0-2-1/16” Note Polarity (0-52) Power Socket Power Plug Fill Prime 36” (914) Button Com Socket Com Plug 5-3/32”...
  • Page 7: Installation

    INSTALLATION STEP 1 - INSTALLING THE EZFILL™ SOAP DISPENSING SYSTEM SOAP DISPENSER Drill a hole in the counter top at the MAX 1-3/16” (Ø30) designated location. MIN 1-1/32” Remove and retain the basin nut and (Ø26) the gasket from the base of the soap dispenser body, sliding completely over and off the soap tube, Com and Power Cables.
  • Page 8 INSTALLATION Cut the 5/16” dia (Ø8) soap supply clear tube coming from the EZFILL™ Pump- Motor to the right length as required by the installation. Make sure the end of the tubes are about 1” (25) longer than required to reach the tank bottom. Connect the EZFill™...
  • Page 9: Connecting The Power Source

    INSTALLATION CONNECTING THE POWER SOURCE a. For battery versions: install the battery box at the wall underneath the sink FROM OBSERVE and connect the battery POLARITY THE SOAP DISPENSER connector. Ensure adequate clearance to allow removal of the top TO THE cover and the battery BATTERY BOX carrier tray when battery...
  • Page 10: Battery Replacement Information

    BATTERY REPLACEMENT INFORMATION Battery models only When the batteries weaken, the red indicator light will blink at a constant rate when the user’s hands are within the sensor range. The batteries must be replaced within two weeks. To replace the batteries: 1.
  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM INDICATOR CAUSE SOLUTION SOAP QUANTIT Y Voltage of batteries Low volume dispense Replace batteries DIMINISHED is low Red light in the sensor flashes continuously Voltage of batteries Replace batteries. See when the user ’s hands likely below 1.47V per page 9.
  • Page 12: Spare Parts List

    SPARE PARTS LIST EZFILL™ Multi Feed Kit W/5 Liter Container ........... 0390 Mounting Bracket for EZFILL™ Multi Feed Tank ....... 0390-BR EZFILL™ Battery Pack ................0390-BP EZFILL™ Battery Pack (0390-BP) Extension Cable/1M Male to Female Connectors ................0390-EBC EZFILL™ Remote .................... 0390-R EZFILL™...
  • Page 13: Warranty

    WARRANTY We are pleased to offer this warranty covering ASI products furnished for your project. This warranty replaces any other warranties or product descriptions, whether expressed or implied, written or oral. It is understood that the products for this project have been selected and inspected by the purchaser, and have been accepted without qualification by the purchaser as merchantable, fit for the intended use, and satisfy the specifications.
  • Page 14 Model 0390-R EZFILL™ REMOTE CONTROL REMOTE CONTROL FOR ALL MODELS 0390-(n) AND 0391-(n) AUTOMATIC VANITY MOUNTED SOAP DISPENSERS INSTALLATION AND MAINTENANCE GUIDE 1408201654 Rev C 27 July 2015...
  • Page 15: Operation

    OPERATION If desired, use the remote control to adjust the soap dispenser settings. Hold the remote control straight in front of the sensor at a distance of about 4-6” (10-15cm). User Hint: Holding the soap dispenser remote control out of the recommended range (too close or too far) may interfere with the remote’s activation.
