ASI EZ FILL Installation And Maintenance Manual
Automatic deck mounted faucet
Hide thumbs
Also See for EZ FILL:
- Troubleshooting and maintenance manual (4 pages) ,
- Installation and maintenance manual (12 pages)
Related Manuals for ASI EZ FILL
Summary of Contents for ASI EZ FILL

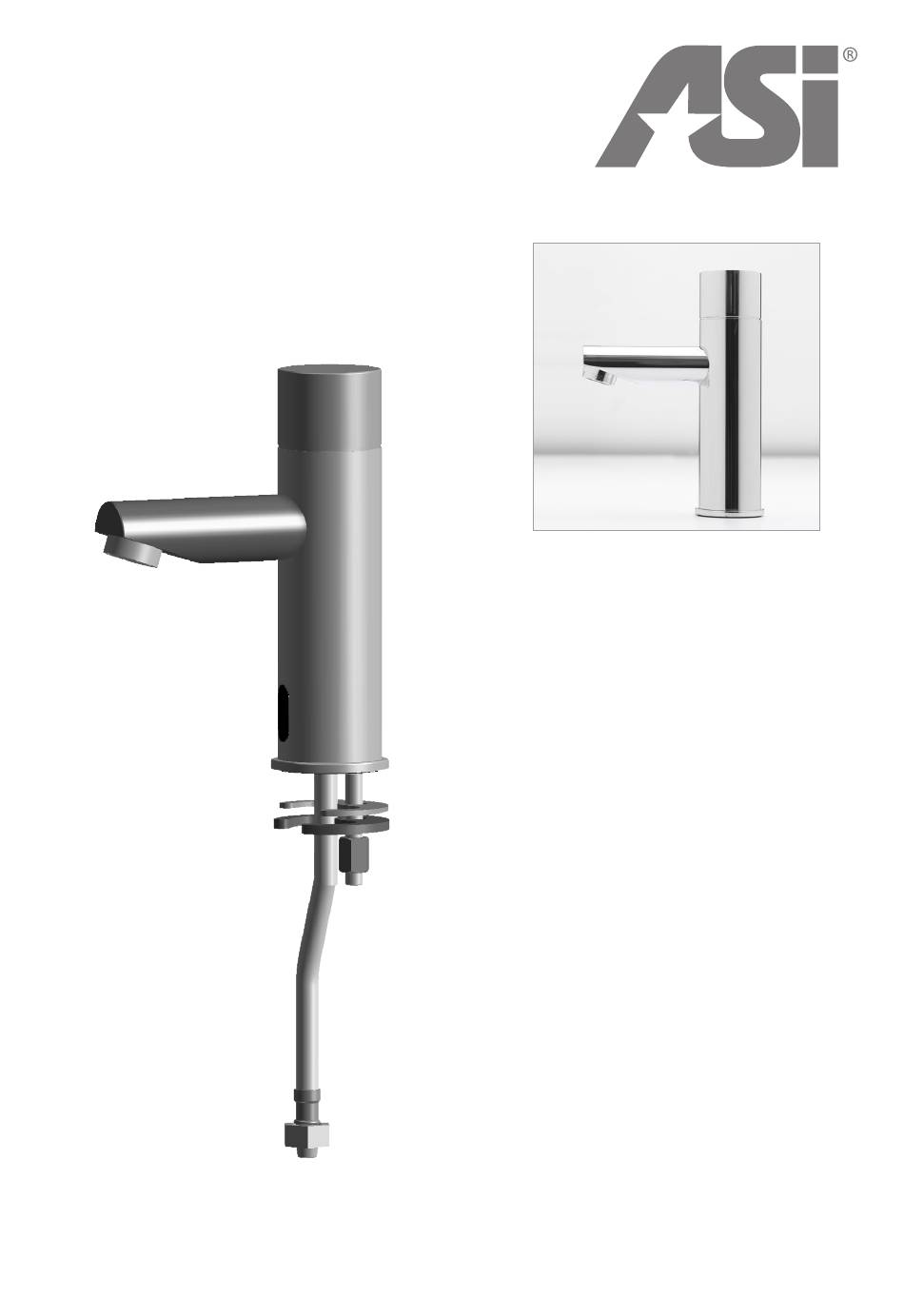

- Page 1 EZ FILL™ FAUCET AUTOMATIC DECK MOUNTED FAUCET INSTALLATION AND MAINTENANCE GUIDE 05 September 2018...
-
Page 2: Table Of Contents
Important: All plumbing is to be installed in accordance with applicable codes and TROUBLESHOOTING regulations. RECOMMENDED HOLE SIZE Unit Install Date Unit Location in Facility Unit S/N (From Label) Supplied By Original PO No. ASI Order No. 05 September 2018 05 September 2018... -
Page 3: Pack Contents
EZFILL™ FAUCET PACK CONTENTS TECHNICAL DATA Familiarize yourself with the part names and confirm that the parts are included. 1 x FAUCET AND ATTACHMENTS 1 x FILTER EZFILL™ FAUCET (battery powered) - 235100 EZFILL™ FAUCET (transformer powered) - 235200 1 x ALLEN KEY Power supply: 6 x 1.5V AA batteries or 9V transformer 8.0-0.5 bar (116-7 PSI) -
Page 4: Installation
INSTALLATION INSTALLATION STEP 3 – CONNECTING THE WATER SUPPLY STEP 1 – PREPARATION FOR MOUNTING THE FAUCET Shut off the water supply. Connect the flexible pipe to the water supply. For models with temperature control connect the red flexible pipe to the hot water supply and the blue flexible pipe O-RING to the cold water supply. -
Page 5: Settings Adjustment
INSTALLATION SETTINGS ADjuSTMENT STEP 4 – CONNECTING THE POWER SOURCE DETECTION BATTERy VERSION DELAY OUT TIME RANGE Install the battery box at the wall underneath the sink using the two TEMPORARY OFF sided adhesive foam tape. The cable DELAY IN TIME FUNCTION connection must point down. -
Page 6: Battery Replacement Instructions
SETTINGS ADjuSTMENT BATTERy REPLACEMENT INSTRuCTIONS When the battery weakens, the red indicator light will blink at a constant rate. The battery must be replaced within two weeks. DELAY IN TIME: If required, the delay in time can also be modified as follows: Press the IN button. -
Page 7: Spare Parts List
MAINTENANCE ASI will not be responsible for labor costs associated with the removal, replacement, repair by others, reinstallation, renovation or return of its products. Filter cleaning instructions This faucet is provided with one / two stainless steel filter(s) preventing foreign particles to enter the lines. -
Page 8: Troubleshooting
TROuBLESHOOTING PROBLEM INDICATOR CAuSE SOLuTION No water 1. Sensor flashes coming out continuously of the faucet: when user’s Low battery. Replace battery hands are within the sensor’s range. 2. LED in the 1. Range is too short. Increase the range sensor does not 2. - Page 9 441 Saw Mill River Road, Yonkers, NY 10701 . (914)476-9000 . Web: americanspecialties.com 05 September 2018...
