AUTOMATIC ROLL TOWEL MECHANISM OWNER'S MANUAL (Pg 1 of 7)
12-5/16" [313]
C L
C L
7-5/16" [186]
FRONT VIEW
Designed for maximum sanitary use, the 8374 Automatic Roll Towel Mechanism automatically provides the user
with a measured amount of untouched paper towel. The positioning of a hand underneath the center bottom of the
dispenser activates the unit to dispense a pre-set amount of paper as per option control settings on mechanism. The
mechanism is designed to accept standard, hardwound paper towel rolls up to 8" diameter [Ø203] x 8" [203] wide up
to 800 feet [244 m] long and one 8" [203] wide stub roll up to 4" diameter [Ø102].
Prior to beginning next assembly sequence, decision to use batteries or AC operation must be confirmed. If battery
operation is desired, proceed to next step. If AC power is desired, a qualified electrician must provide 100~240 VAC,
50/60 Hz to utility duplex box provided as original configuration or as added for conversion using kit 72-ACA-CK
(page 4), prior to proceeding with mechanism installation.
AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
(914) 476.9000 • (914) 476.0688
www.americanspecialties.com
MAIN ROLL
HOLDERS
6-3/8"
C L
[162]
1-1/2" MIN
DIA. [Ø38]
8-5/8"
TYP CORE
[219]
HOLDERS
5-7/8"
[149]
4-3/8"
[111]
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
A-A VIEW
15-1/16"
[383]
A
A
SIDE VIEW

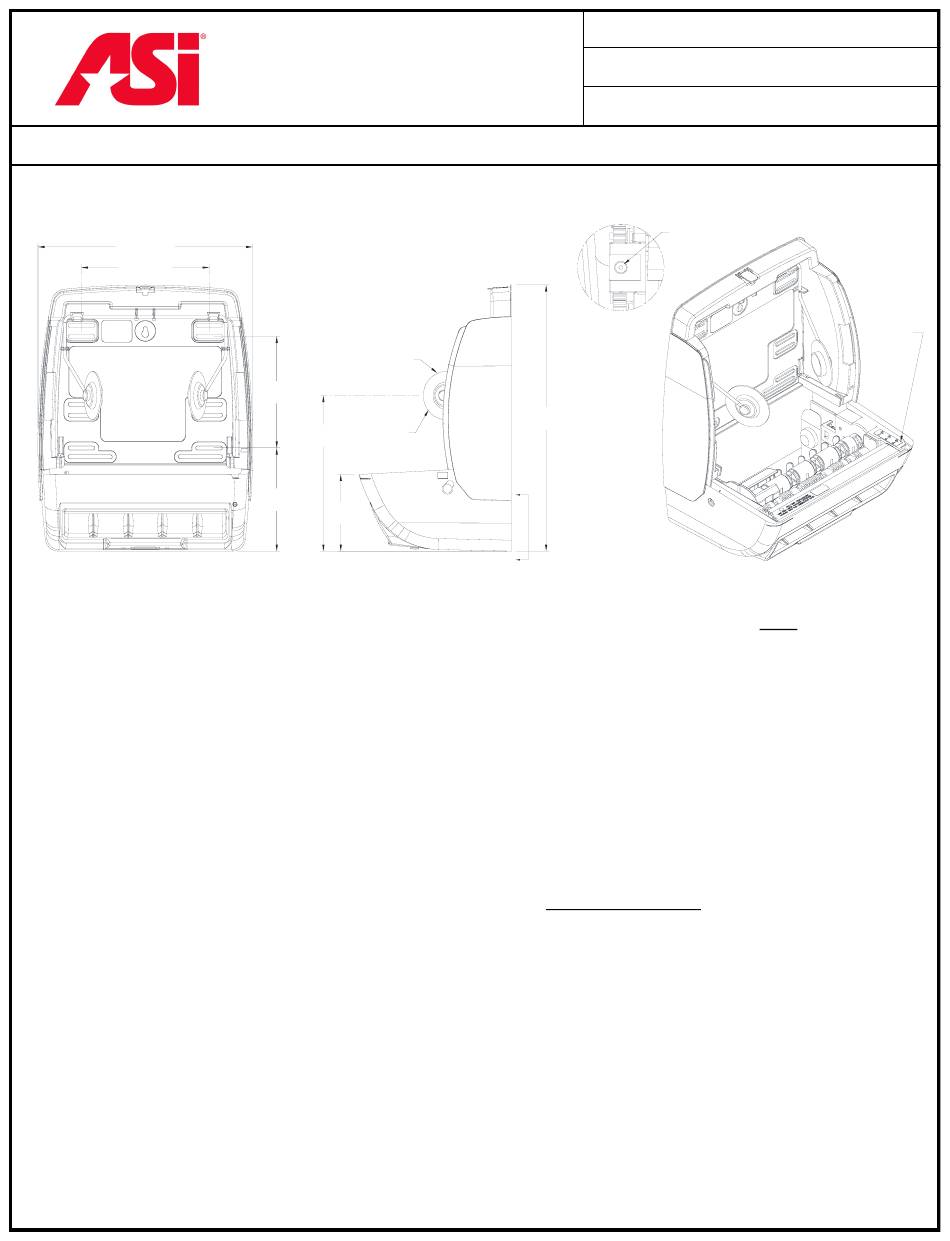

Fig. 1
MODEL №:
ISSUED:
REVISED:
PLUG IN
ADAPTER CABLE
72-ACA
ISOMETRIC
NOTE:
ALL DIM'S INCH [MM]
ILLUSTRATION FOR REF ONLY AND NTS
8374
17 JUN 2017
17 AUG 2020
CONTROL
SWITCHES
Advertisement
Table of Contents
Related Manuals for ASI 8374
Summary of Contents for ASI 8374
- Page 1 ILLUSTRATION FOR REF ONLY AND NTS Designed for maximum sanitary use, the 8374 Automatic Roll Towel Mechanism automatically provides the user with a measured amount of untouched paper towel. The positioning of a hand underneath the center bottom of the dispenser activates the unit to dispense a pre-set amount of paper as per option control settings on mechanism.
- Page 2 2. Open cabinet door. For AC (plug-in) operation, go to next page. 3. If using mechanism for battery operation, install/re-install 8374 mechanism with four (4) 1/4"- 20 x 3/8" Philips pan-head screws through slots marked into tapped holes in cabinet back and continue onto step 4 below.
- Page 3 3. Rest AC adapter inside unit and feed any excess wire into mechanism housing, leaving just enough to reach outlet. 4. Install/Re-install 8374 mechanism with four (4) 1/4"- 20 x 3/8" Philips pan-head screws through slots marked into tapped holes in cabinet.
- Page 4 CONVERTING FROM BATTERY OPERATION TO AC OPERATION INSTRUCTIONS All ASI units with Automatic Dispensing Mechanisms come furnished with the electrical utility box mounting holes and knockout holes. Whether originally equipped for battery usage or outfitted with the AC conversion from the factory, the cabinet enclosure is the same. Therefore, no alterations are required in the field if converting at a later date.
- Page 5 MODEL №: 8374 AMERICAN SPECIALTIES, INC. 441 Saw Mill River Road, Yonkers, NY 10701 ISSUED: 17 JUN 2017 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com REVISED: 17 AUG 2020 AUTOMATIC ROLL TOWEL MECHANISM OWNER’S MANUAL (Pg 5 of 7) PAPER ROLL LOADING & STUB ROLL FEATURE INSTRUCTIONS Single Roll Loading Fig.
- Page 6 MODEL №: 8374 AMERICAN SPECIALTIES, INC. 441 Saw Mill River Road, Yonkers, NY 10701 ISSUED: 17 JUN 2017 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com REVISED: 17 AUG 2020 AUTOMATIC ROLL TOWEL MECHANISM OWNER’S MANUAL (Pg 6 of 7) MECHANISM CONTROL SETTINGS Fig.
- Page 7 MODEL №: 8374 AMERICAN SPECIALTIES, INC. 441 Saw Mill River Road, Yonkers, NY 10701 ISSUED: 17 JUN 2017 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com REVISED: 17 AUG 2020 AUTOMATIC ROLL TOWEL MECHANISM OWNER’S MANUAL (Pg 7 of 7) TROUBLESHOOTING SYMPTOM DIAGNOSTICS &...
