PIATTO™ COLLECTION PAPER TOWEL DISPENSER INSTALLATION GUIDE (PG 1 of 3)
IMPORTANT: READ THESE INSTRUCTIONS COMPLETELY PRIOR TO BEGINNING
INSTALLATION. SAVE FOR FUTURE REFERENCE.
PREPARE FINISHED WALL OPENING (FWO)
Cabinet is designed to fit into FWO with 1/32" [0.8] operating clearance on all four (4) edges of door. Door is the same size as the frame
flange. See TDS & OM for complete specifications and requirements. There should be adequate in-wall blocking installed prior to FWO
side walls completion to receive and hold cabinet mounting screws. Walls of the FWO must be flat, square, straight & plumb. The edges
of the FWO at the finished wall are visible and constitute an appearance surface intersection.
Finished Wall Opening (FWO) required is 12-13/16" [325] W x 17-5/16 [440] H x 4-3/4" [121] D minimum
INSTALLATION OF MOUNTING HARDWARE

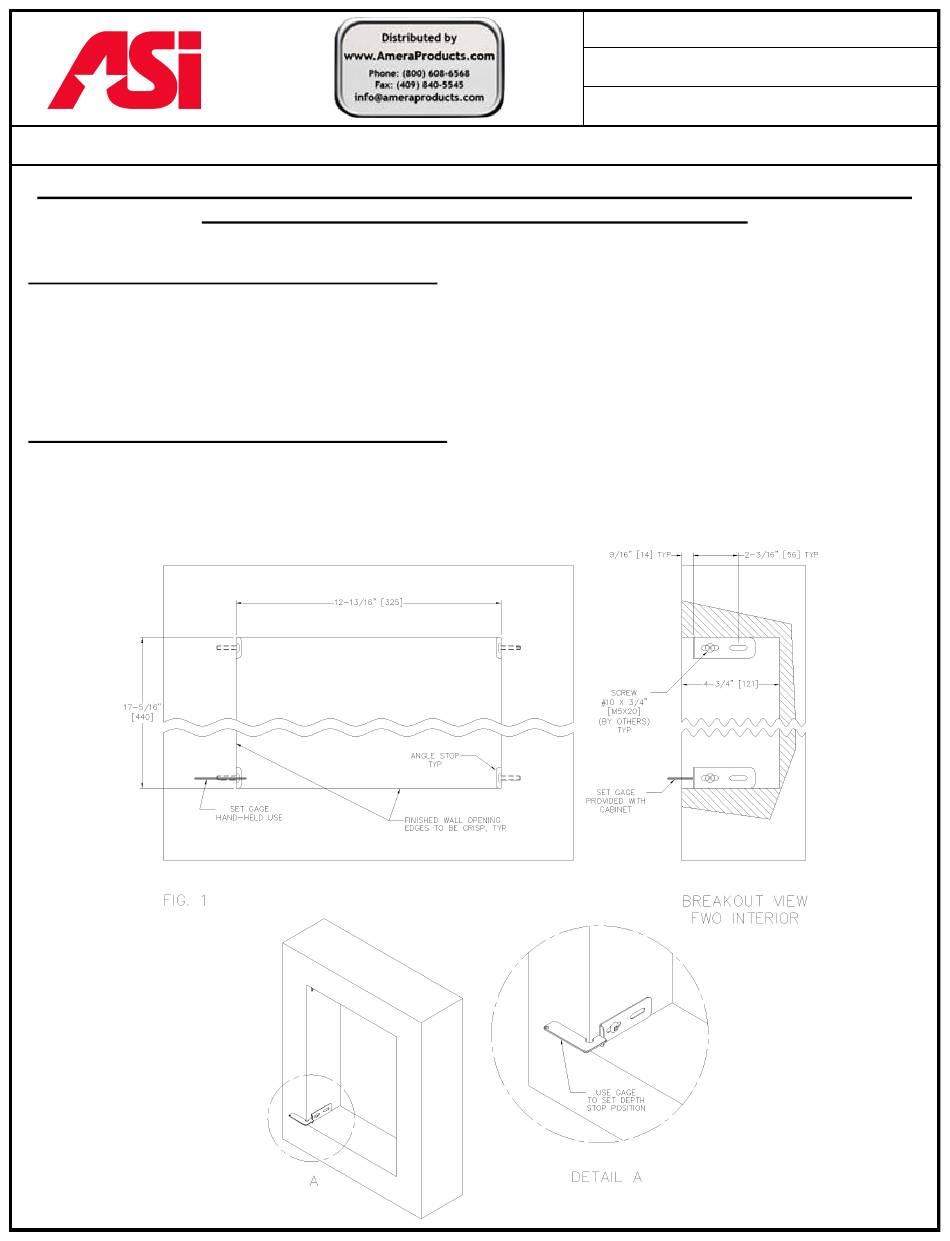

Place four (4) depth stops in FWO as per diagram on top and bottom of side walls at ceiling & floor lines using 9/16" [14] depth stop set
gage p/n 1811051152. Depth stop set gage is designed to be held by hand while positioning each depth stop. Ensure front tab is set back
from finished wall face by 9/16" [14] when securing screws. Install depth stops with four (4) № 10 x 3/4" [M5 x 20] self-threading pan
head screws (by others) through slots provided in depth stops (Fig. 1). Retain depth stop set gage tool for future use with additional
cabinets.
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
MODEL №:
ISSUED:
REVISED:
6457-XX
29 JAN 2019
11 FEB 2019
