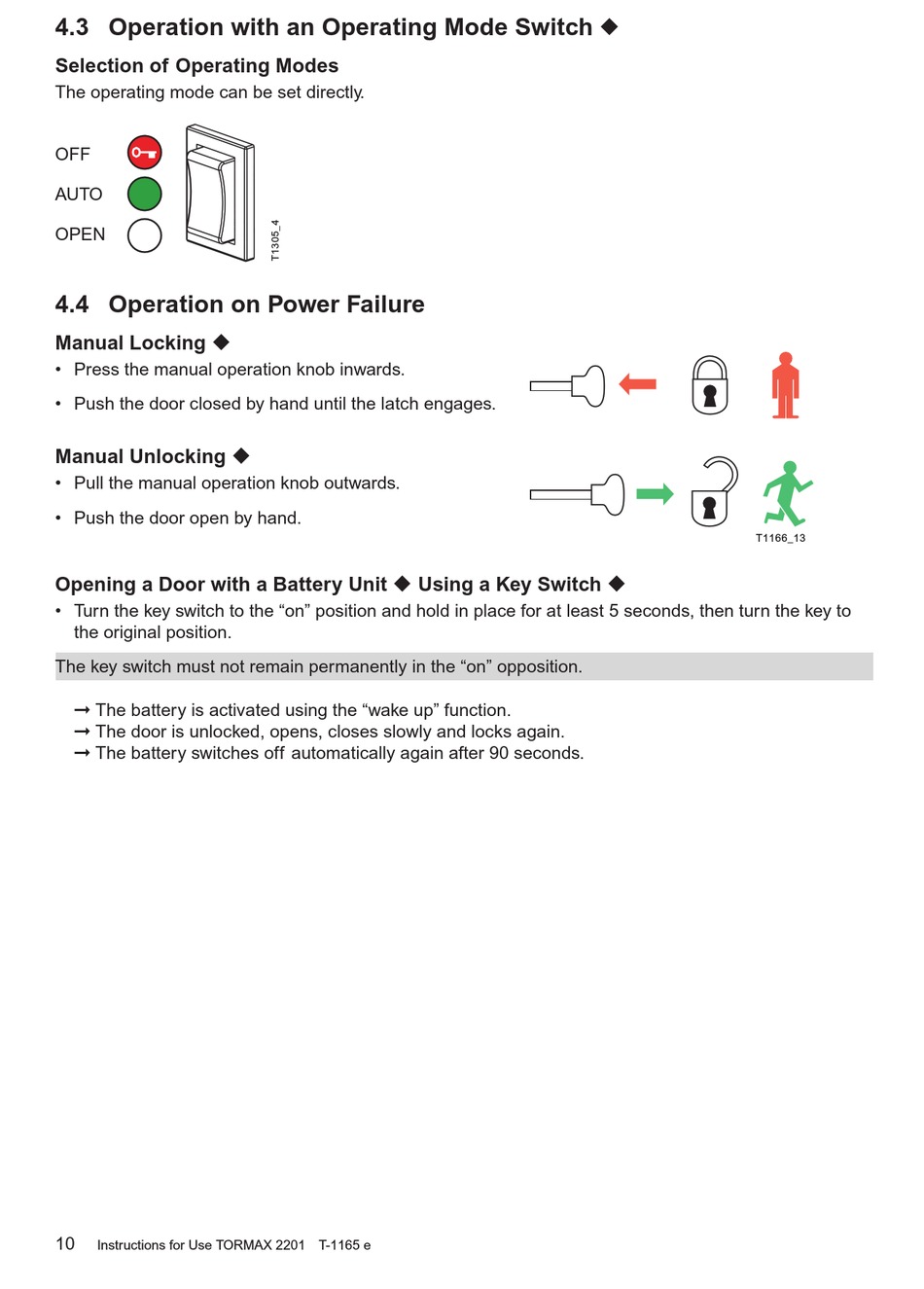

4.3 Operation with an Operating Mode Switch u
Selection of Operating Modes
The operating mode can be set directly.
OFF
AUTO
OPEN

4.4 Operation on Power Failure

Manual Locking u
• Press the manual operation knob inwards.
• Push the door closed by hand until the latch engages.
Manual Unlocking u
• Pull the manual operation knob outwards.
• Push the door open by hand.
Opening a Door with a Battery Unit u Using a Key Switch u
• Turn the key switch to the "on" position and hold in place for at least 5 seconds, then turn the key to
the original position.
The key switch must not remain permanently in the "on" opposition.
 The battery is activated using the "wake up" function.
 The door is unlocked, opens, closes slowly and locks again.
 The battery switches off automatically again after 90 seconds.
10
Instructions for Use TORMAX 2201 T-1165 e
T1166_13
