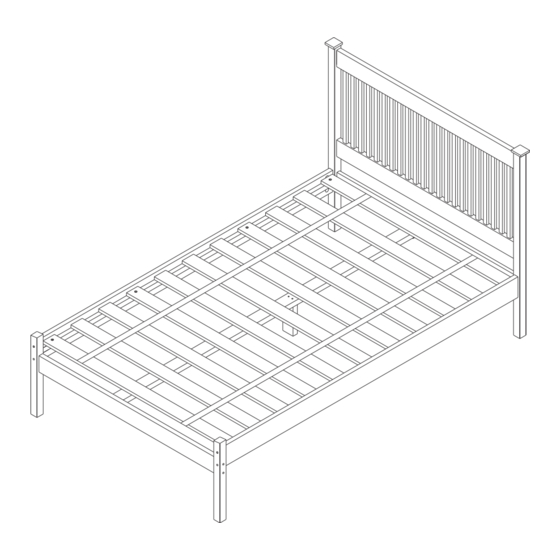

Adele 4ft6 Bed
Assembly Instructions
Dimensions
Width - 148cm
Depth - 204,5cm
Height - 112cm
– Please read these instructions fully before starting assembly
Important
If you need help or have damaged or missing parts, call the
- Please keep for future reference
Customer Helpline: 08456 400 800
257/6549
244/8378
Issue 1 - 13/05/14
Advertisement
Related Manuals for Argos Adele 257/6549
Summary of Contents for Argos Adele 257/6549
- Page 1 Adele 4ft6 Bed 257/6549 - Please keep for future reference Assembly Instructions 244/8378 Dimensions Width - 148cm Depth - 204,5cm Height - 112cm – Please read these instructions fully before starting assembly Important If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800 Issue 1 - 13/05/14...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly . Check you have all the Assemble on a soft level We do not components and tools listed on surface to avoid damaging the recommend the unit or your floor.
- Page 3 Components - Panels Please check you have all the panels listed below 01 Headboard (148 x 112cm) 04 Central Support (194 x 6cm) 05 Support Foot (29.5 x 6cm) 02 Foot (45 x 6.5cm) 06 Footboard Rail (132.5 x 11.5cm) 03 Side rails x 2 (190 x 11.5cm)
- Page 4 If you have damaged or missing components, Components - Fittings call the Customer Helpline: 08456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fitting dowels Insert dowels into the indicated parts.
- Page 6 Assembly Instructions Step 2 Fixing footboard: Fix footboard rail into foot and foot using bolts and allen key shown. Step 3 Assembling side rails: Attach side rails to the headboard. Insert half moon nut into side rails as shown. Then fix them to the headboard using bolts and allen key...
- Page 7 Assembly Instructions Step 4 Assembling side rails: Insert half moon nut into side rails as shown. Then fix them to the footboard using bolts and allen key Step 5 Fixing support foot: Fix support foot central support using bolt and allen key shown.
- Page 8 Assembly Instructions Step 6 Fixing L shaped bracket: Fix L shaped brackets into pre-drilled holes in the headboard footboard using screw as shown. Step 7 Fixing central support: Fix central support to L shaped brackets in headboard footboard using bolts and nut as shown.
- Page 9 Assembly Instructions Step 8 Fixing slats: Centralize slats in bed frame prior to fixing. Fix slats using screws shown. Fix slats in one side first, then fix them in the other side by pushing the rail against the slats if necessary.
