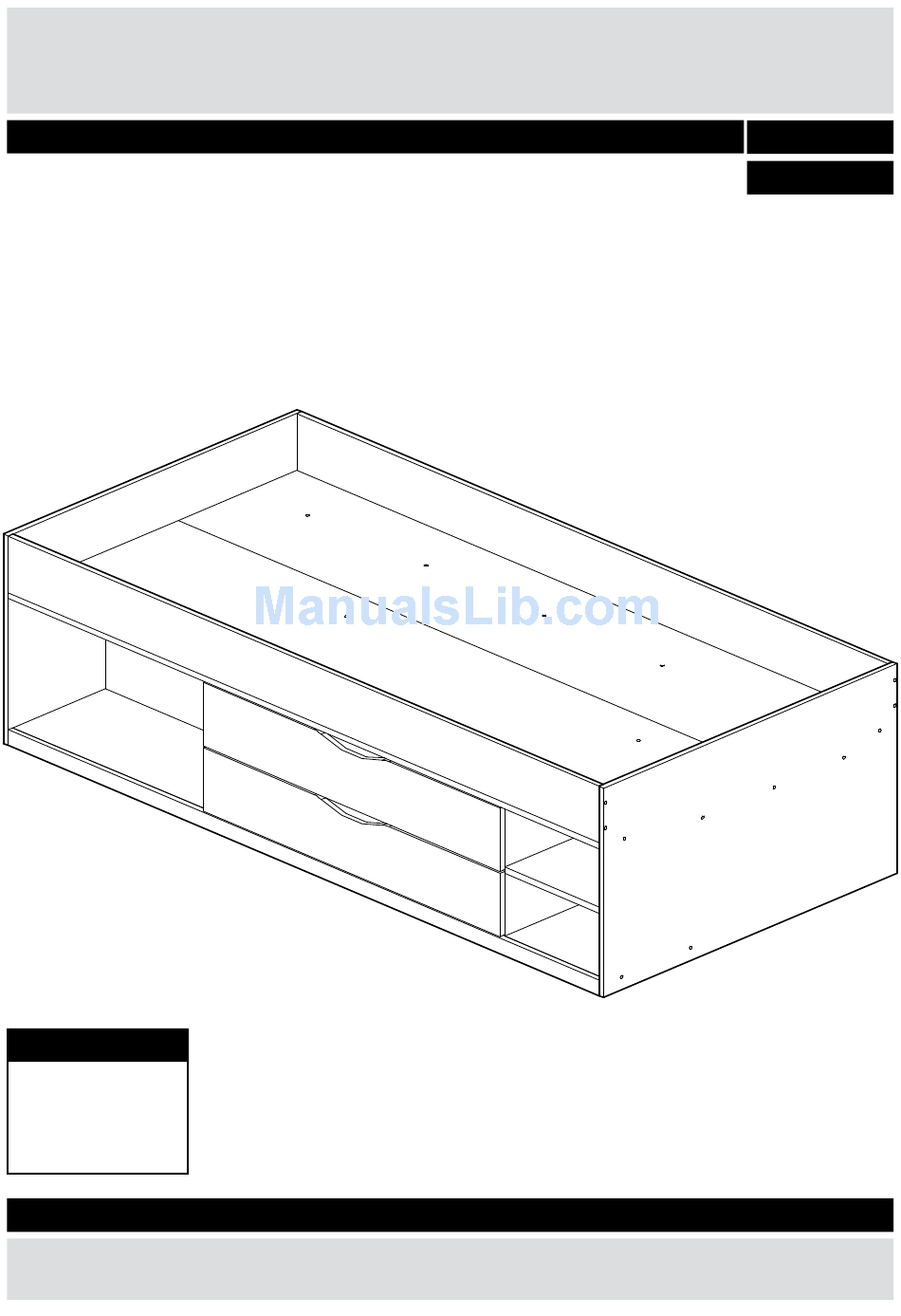

Alfie - Cabin Bed
Dimensions
Width - 195cm
Depth - 95.5cm
Height - 53cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
162/4698
167/8527
Issue 1 - 9/30/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argos Alfie
Summary of Contents for Argos Alfie
- Page 1 Alfie - Cabin Bed Assembly Instructions 162/4698 - Please keep for future reference 167/8527 Dimensions Width - 195cm Depth - 95.5cm Height - 53cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, 08456 400800 call the Customer Helpline: Please check you have all the panels listed below Front bed board Left bottom panel (192 x 55.5cm) (63.5 x 30.05cm) Right bottom panel Back bed board (32 x 30.05cm) (192 x 40cm)
- Page 4 Components - Panels If you have damaged or missing components, 08456 400800 call the Customer Helpline: Please check you have all the panels listed below Left side panel Right side panel (95.5 x 53cm) (95.5 x 53cm) Drawer front panel x 2 (96.4 x 16cm) Drawer back panel x 2 (88 x 11.6cm)
- Page 5 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 50mm wood screw x 22 50mm fixing screw x 44 30mm wooden dowel x 12 Locking nut x 6...
- Page 6 Assembly Instructions Step 1 Attaching runners Two people are needed here. Position runners in from front edge of the left shelf partition runners 2mm in from front edge of the right shelf partition Fix through holes shown using 13mm fixing screw Finished front edge Finished...
- Page 7 Assembly Instructions Step 3 Attaching panels Two people are needed here. Clockwise Position the left bottom panel to the left shelf partition and the right bottom panel to the right shelf partition Use 50mm fixing screw Step 4 Attaching panels Two people are needed here.
- Page 8 Assembly Instructions Step 4 - continued Fix the large central support and the small central support through 50mm fixing Clockwise screw Note: Use the Allen Key Step 5 Attaching panel Screw plastic supports to the front panel through 16mm wood screws Note: Use the guidance pilot holes.
- Page 9 Assembly Instructions Step 6 Attaching panels Position the front side frame to the left shelf Clockwise partition and the right shelf partition and fix it through 50mm fixing screw Step 7 Attaching panels Insert the 30mm dowels to the left side panel and then position it to the large...
- Page 10 Assembly Instructions Step 8 Attaching panels Two people are needed here. Insert the 30mm dowels to the left side panel and the right side panel First postition the back side frame to the left side panel and while holding the back side frame , position the right side panel, following...
- Page 11 Assembly Instructions Step 9 Clockwise Two people are needed here. Insert the 25mm carriage bolts in the right holes like shown on the picture and carefully and slightly hit them with a small hammer, so the cubic part of the bolt fits in the hole.
- Page 12 Assembly Instructions Step 10 Attaching panels Two people are needed here. Position the front bed Clockwise support and the back bed support and fix them to the front bed board and the back bed board throgh 50mm fixing screw Note: Use the Allen Key Note: Use the front bed support with the...
- Page 13 Assembly Instructions Step 11 Assembling drawer Position the wooden dowels and the screw- in dowels like shown on the picture. Position the left side the right side of the drawer onto the front panel Insert the locking nuts into the left and the right side.
- Page 14 Assembly Instructions Step 11 - continued Position the drawer back panel and fix it with 50mm fixing screw Clockwise Fix the drawer back panel to the drawer right side and to the drawer left sode through 50mm fixing screw Clockwise Position the left inside runner and the right...
- Page 15 Assembly Instructions Step 12 Attaching panels Position the drawers into the bed like shown on the picture. Step 13 Attaching shelf Position the shelf supports into the right shelf partition and the right side panel Position the shelf on its place like shown on the picture.
