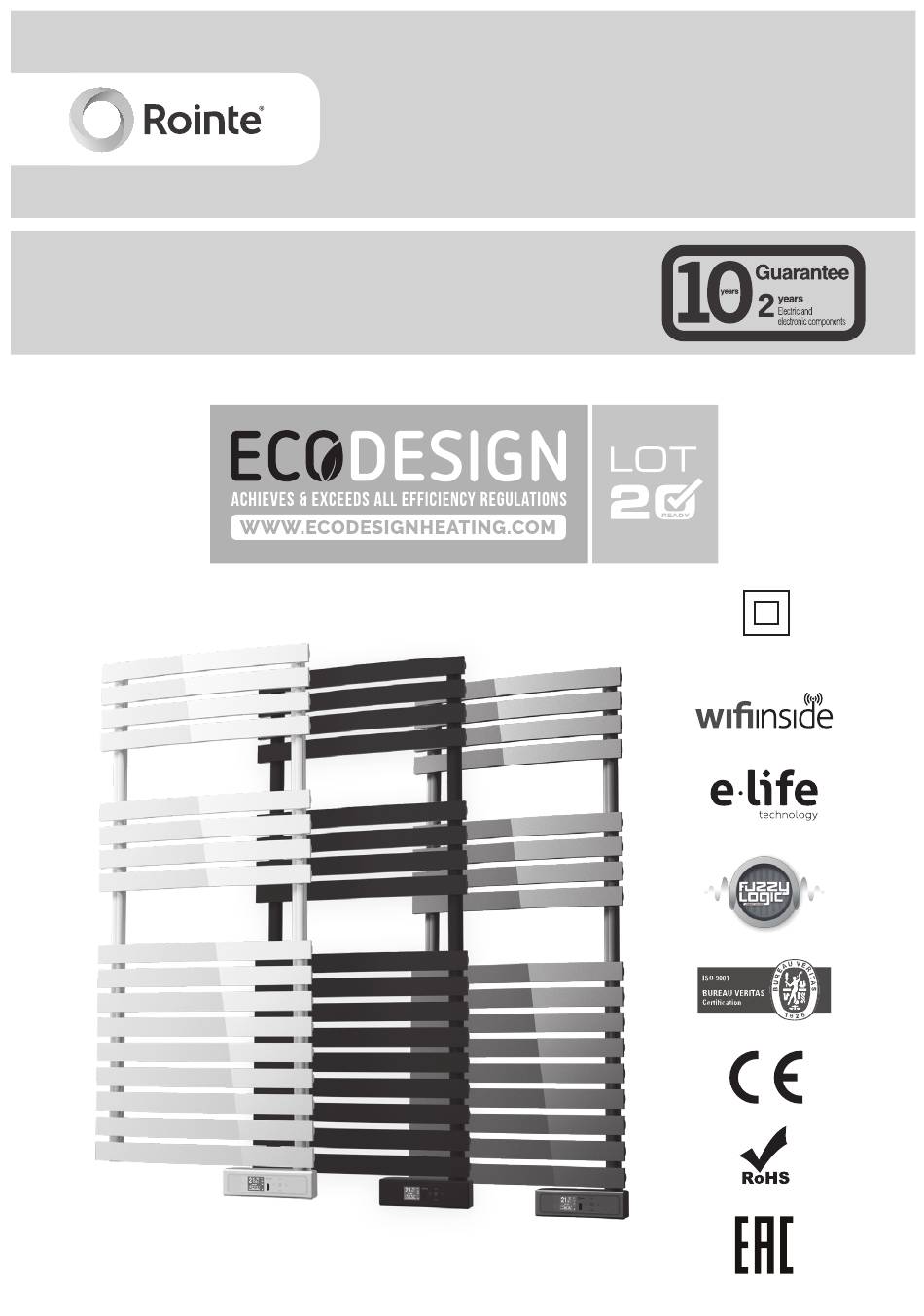

- Page 1 D Series DIGITAL ELECTRONIC TOWEL RAIL INSTRUCTION MANUAL Information, operation & installation Class II...
-
Page 2: Table Of Contents
4. Maintenance and cleaning ....................... 18 5. Installation and safety precautions ....................18 5.1. Installation precautions ......................18 5.2. Safety precautions ........................18 6. Rointe Product Guarantee ........................ 28 7. European Directive..........................21 8. Dimensions & Technical Characteristics ..................21 9. Certificate of Guarantee .........................23... -
Page 3: Introduction
D SERIES Towel Rail 1. Introduction Designed with the user in mind, this product contains an exclusive electronic temperature program- mer and is manufactured with high quality components. This product has passed the most demand- ing quality controls to meet rigorous safety standards and efficiency requirements. This product is designed for fixed installation only. - Page 4 2.1.2. Display panel DESCRIPTION Programming Days of the week Time of day Temperature selected Control panel locked / unlocked MANUAL / AUTOMATIC / PILOT WIRE* function indicator COMFORT / ECO / ANTI-FROST mode indicator Wi-Fi connection status indicator Heating element active indicator Energy consumption indicator OPEN WINDOWS function indicator * PILOT WIRE function not available in UK.
-
Page 5: Switching On And Off (Stand-By)
2.3. Adjust the day and time You can manually set the time on the product from the control panel orit will automatically synchronise when the product has been connected to Wi-Fi and Rointe Connect app. To set the day and time, please press the button on the keypad to access the Main Menu. -
Page 6: Adjust The Temperature
2.4. Adjust the temperature To change the temperature, please press the button. To decrease the temperature press the button and to increase the temperature press button. When the room temperature is lower than the set temperature on the display panel, the product will come on with the symbol appearing in the top right of the display panel. -
Page 7: Main Menu
(PIN) will appear. Press the button to exit the pairing mode and return to the main screen. Please note - to pair your product with your home internet network please follow the instructions in the “D Series Heating System Quick Setup Guide” enclosed. -
Page 8: Energy Sub-Menu
• Change the language To change the language of your product, ensure the icon is highlighted in LANGUAGE the ‘Settings’ sub-menu and press the button to access. ENGLISH FRANÇAIS ESPAÑOL Use the buttons to move up or down respectively until your chosen PORTUGUÊS language is highlighted and confirm by pressing the button. - Page 9 D SERIES Towel Rail • Two Hour Boost mode The two hour BOOST mode will override any other set mode and will boost your product to maximum power. To set the BOOST mode, ensure the icon is highlighted in the ‘Energy’ sub-menu and press the button to access.
-
Page 10: Equilibrium / Balance Sub-Menu
WIFI STATUS The final display in the Information function displays the MAC and RSSI address, MAC: signal strength measured in dbm. 0 :50:93 C4:03:F6 To exit press the button. RSSI:-70 2.6.3. Main Menu: Equilibrium / Balance sub-menu The ‘Equilibrium/Balance’ sub-menu/function returns the product to a constant temperature of 19°C. - Page 11 D SERIES Towel Rail The ‘Program’ sub-menu provides access to functions related to programming the product. To access, select the icon displayed in the Main Menu screen and press to access. Use the buttons to move across the different options on the sub- menu to choose your program and press to access.
- Page 12 • Start programming for AUTOMATIC function To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted. Press the button to access and the display panel will show a flashing screen. STEP 1 - Select COMFORT mode temperature COMFORT mode will be programmed first.
- Page 13 D SERIES Towel Rail • USER mode To enter the USER function, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000.
- Page 14 • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. Use the buttons to move left, right, up or down to select the new numbers, pressing after each number is highlighted to confirm.
-
Page 15: Open Windows Function
D SERIES Towel Rail • PILOT WIRE function (*Not available in UK. Only on demand.*) The PILOT WIRE function allows your heating only to be controlled via a pilot wire programmer. PILOT To access the PILOT WIRE mode, ensure the... -
Page 16: Installation And Mounting
3. Installation instructions 3.1. Mounting instructions Inside the box/packaging you will find a mounting kit: Choose the right part of the wall. Place the mounting stencil on the wall, marking the places for the holes. Remove the stencil and make the holes in the wall. Insert the rawl plugs in the holes made. -
Page 17: Specific Regulations For Bathrooms
D SERIES Towel Rail IMPORTANT: • This product must never be installed with its control panel at the top. • This product must not be installed horizontally. • During installation use wedges so that the control panel will not be in contact with the floor •... -
Page 18: Maintenance And Cleaning
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. - Page 19 D SERIES Towel Rail 6.1. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the main body for a period of 120 months and any electronic and electrical components for 24 months, provided that they have not been modified in any way.
-
Page 20: European Directive
6.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee. -
Page 21: Dimensions & Technical Characteristics
D SERIES Towel Rail 8. Dimensions and technical characteristics REFERENCE H1 (mm) H2 (mm) V1 (mm) V2 (mm) V3 (mm) DTI030SE* DTI045SE* 1,106 1,161 DTI060SE* 1,420 1,167 1,475 DTI075SE* 1,742 1,348 1,797... - Page 22 8. Dimensions and technical characteristics - continued MODEL DTI030SE* DTI045SE* DTI066SE* DTI075SE* DIMENSIONS Width (mm) Height without control panel 1,106 1,420 1,742 (mm) Height with control panel (mm) 1,161 1,475 1,797 Depth (mm) Installed Depth (mm) WEIGHTS & FINISHES Weight (kg) Finish White RAL 9016 / Graphite Forge Effect / RAL Colour / Chrome ELECTRICAL CHARACTERISTICS...
- Page 25 D SERIES Towel Rail NOTES:...
- Page 26 NOTES:...
- Page 27 D SERIES Towel Rail NOTES:...
- Page 28 NOTES:...
- Page 29 D SERIES Towel Rail NOTES:...
- Page 30 NOTES:...
- Page 31 D SERIES Towel Rail Thank you for choosing Rointe. We hope you enjoy your product. If you require further assistance or information, please contact our Technical Service Department by telephoning 0203 321 5929 or email support@rointe.co.uk.
- Page 32 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk MDSUK18V1...
