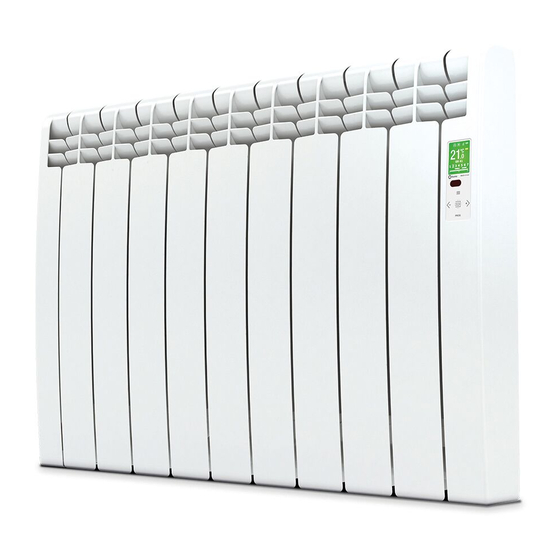

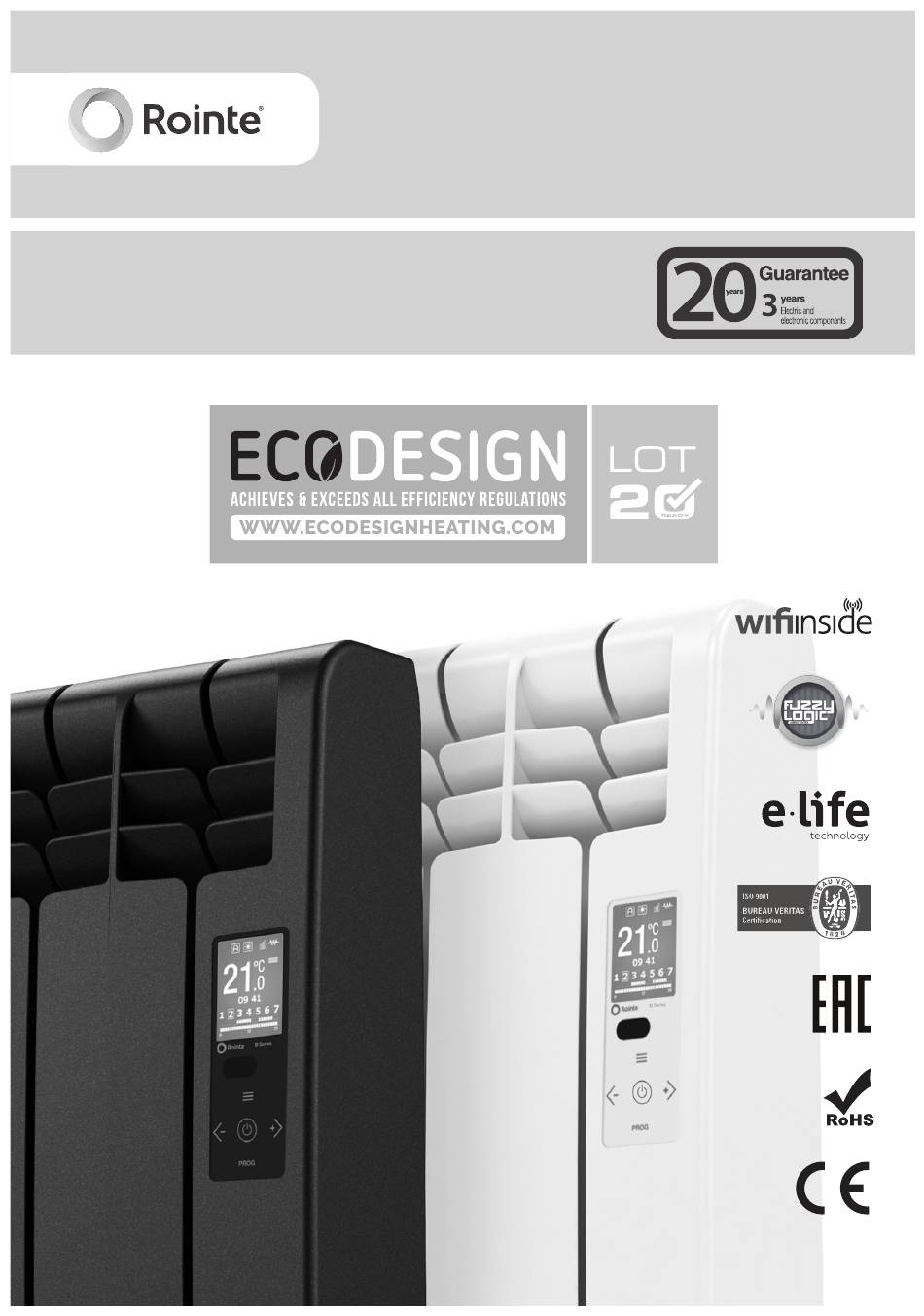

- Page 1 D Series DIGITAL ELECTRONIC RADIATOR INSTRUCTION MANUAL Information, operation & installation...
-
Page 2: Table Of Contents
5. Installation and safety precautions ....................18 5.1. Installation precautions ......................18 5.2. Safety precautions ........................18 6. Rointe Product Guarantee ........................ 19 7. European Directive..........................21 8. Information requirements for Erp Directive. Commission Regulation (EU) 2015/1188....22 9. Dimensions & Technical Characteristics ..................24... -
Page 3: Introduction
• Integrated Wi-Fi module with E-Life technology • Highly sensitive touch control panel • 100% aluminium body and closures designed exclusively for Rointe • Equilibrium function • OPEN WINDOWS function IMPORTANT - Please read this Instruction manual carefully to ensure correct operation. It is important that the installer reads and understands these instructions, and unpacks and familiarises themselves with the equipment before commencing the installation. - Page 4 2.1.2. Display panel DESCRIPTION Programming Days of the week Time of day Temperature selected Control panel locked / unlocked MANUAL / AUTOMATIC / PILOT WIRE* function indicator COMFORT / ECO / ANTI-FROST mode indicator Wi-Fi connection status indicator Heating element active indicator / Fuzzy Logic Energy Control technology indicator Energy consumption indicator OPEN WINDOWS function indicator...
-
Page 5: Switching On And Off (Stand-By)
2.3. Adjust the day and time You can manually set the time on the product from the control panel or it will automatically synchronise when the product has been connected to Wi-Fi and Rointe Connect app. To set the day and time, please press the button on the keypad to access the Main Menu. -
Page 6: Adjust The Temperature
2.4. Adjust the temperature To change the temperature, please press the button. To decrease the temperature press the button and to increase the temperature press the button. When the room temperature is lower than the set temperature on the display panel, the product will come on with the symbol appearing in the top right of the display panel. -
Page 7: Main Menu
D SERIES with DELTA ULTIMATE technology D Series 2.6. Main Menu The Main Menu is accessed by pressing the menu button. You can navigate through the different options available on the menu by pressing the buttons to move left and right respectively and to scroll through all 4 options. The selected sub-menu will be highlighted with a frame, as shown in the image to the right on the ‘Settings’... -
Page 8: Energy Sub-Menu
Use the buttons to move across the different options on the sub-menu to choose your function and press to confirm. The below icons displayed on the screen take you to the following functions: Rointe Eye Detect Effective OPEN WINDOWS function Power... - Page 9 Rointe Eye Detect function (*Not available in UK. Only on demand.*) Allows you to enable or disable the Rointe Eye Detect function. Using the buttons select ON to activate or OFF to disable. Once the desired option is selected press to confirm and return to the main display.
-
Page 10: Equilibrium / Balance Sub-Menu
WIFI STATUS The next display in the Information function displays the Wi-Fi connection status, dhcp:assigned the connection type, IP address, subnet mask and gateway. IP, NM, GW: xxx.xxx.x.xxx To exit press the button or press the button again to move onto the next xxx.xxx.xxx.x display in the Information function. - Page 11 D SERIES with DELTA ULTIMATE technology D Series The ‘Program’ sub-menu provides access to functions related to programming the product. To access, select the icon displayed in the Main Menu screen and press to access. Use the buttons to move across the different options on the sub-menu to choose your program and press to access.
- Page 12 • Start programming for AUTOMATIC function To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted. Press the button to access and the display panel will show a flashing screen. STEP 1 - Select COMFORT mode temperature COMFORT mode will be programmed first.
- Page 13 D SERIES with DELTA ULTIMATE technology D Series • USER mode To enter the USER function, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000. To enter the PIN use the buttons to move left, right, up or down to select the correct numbers, pressing...
- Page 14 • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. Use the buttons to move left, right, up or down to select the new numbers, pressing after each number is highlighted to confirm.
-
Page 15: Open Windows Function
D SERIES with DELTA ULTIMATE technology D Series • PILOT WIRE function (*Not available in UK. Only on demand.*) The PILOT WIRE function allows your heating only to be controlled via a pilot wire programmer. To access the PILOT WIRE mode, ensure the icon is highlighted in the ‘Program’... -
Page 16: Fuzzy Logic Energy Control Technology
2.8. Fuzzy Logic Energy Control technology Fuzzy Logic Energy Control is a technology developed by Rointe to improve the energy management required to maintain a stable temperature, analyzing its variations with an accuracy of ±0.25 ºC and sending micro electrons to the heating element that transfer the heat to the atmosphere in the most efficient way. -
Page 17: Installing And Fixing The Supports
D SERIES with DELTA ULTIMATE technology D Series 3.2. Installation and fixing the supports Inside the product packaging you will find a fixing kit so you can mount the product to the wall. Please follow these instructions carefully. Choose the right part of the wall Once you have marked the holes, Check the positioning is correct (see section 3.1. -
Page 18: Maintenance And Cleaning
The product is designed for household or residential use only. You are advised to have the product installed by an authorized professional installer. Please contact Rointe by telephoning 0203 321 5928 to find your nearest installer. Make sure the product is properly connected to 230V and is earthed. -
Page 19: Rointe Product Guarantee
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. - Page 20 6.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee.
-
Page 21: European Directive
The symbol of the container crossed out over a horizontal line is marked on all of ROINTE products to remind the consumer of the obligation to separate them on disposal. The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product. -
Page 22: Information Requirements For Erp Directive. Commission Regulation (Eu) 2015/1188
η s SEASONAL SPACE HEATING ENERGY EFFICIENCY CONTACT DETAILS ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park. Elstree, Herts, WD6 3SY www.rointe.co.uk 0203 321 5928 | F. 0208 953 5861 Technical Support: T. 0203 321 5929 | E: support@rointe.co.uk... - Page 23 D SERIES with DELTA ULTIMATE technology D Series DIW0330RAD DIW0550RAD DIW0770RAD DIW0990RAD DIW1210RAD DIW1430RAD DIW1600RAD DIB0330RAD DIB0550RAD DIB0770RAD DIB0990RAD DIB1210RAD DIB1430RAD DIB1600RAD N.A.* N.A.* N.A.* N.A.* N.A.* N.A.* N.A.* 0,330 0,550 0,770 0,990 1,210 1,430 1,600 0,330 0,550 0,770 0,990...
- Page 27 D Series NOTES:...
- Page 28 NOTES:...
- Page 29 D SERIES with DELTA ULTIMATE technology D Series NOTES:...
- Page 30 NOTES:...
- Page 31 D SERIES with DELTA ULTIMATE technology D Series Thank you for choosing Rointe. We hope you enjoy your product. If you require further assistance or information, please contact our Technical Service Department by telephoning 0203 321 5929 or email support@rointe.co.uk.
- Page 32 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk 097i-MDRUK19V1...
