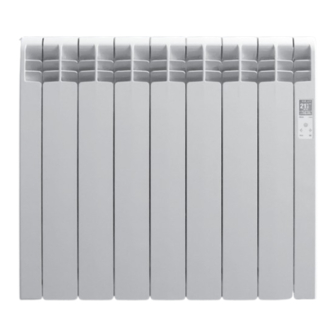

Digital radiator with wi-fi
Hide thumbs Also See for D Series:
Table of Contents

Advertisement

Quick Links

Download this manual
D SERIES
Radiador digital com Wi-Fi / Digitale radiator met Wi-Fi
INSTALLATION AND USER MANUAL
EN
Page 02
Digital radiator with Wi-Fi / Radiador digital con Wi-Fi /
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
YEARS / AÑOS
YEARS / AÑOS
/ ANOS / JAAR
/ ANOS / JAAR
ON THE BODY
ON ELECTRONICS
EN EL CUERPO
EN ELECTRÓNICA
NO CORPO
NA ELECTRÓNICA
IN HET LICHAAM
IN ELEKTRONICA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rointe D Series

Summary of Contents for Rointe D Series

  • Page 1 D SERIES Digital radiator with Wi-Fi / Radiador digital con Wi-Fi / Radiador digital com Wi-Fi / Digitale radiator met Wi-Fi INSTALLATION AND USER MANUAL Page 02 GUARANTEE / GARANTÍA / GARANTIA / GARANTIE YEARS / AÑOS YEARS / AÑOS...
  • Page 3 SYMBOLS DANGER. This symbol indicates a medium-high risk hazard which can result in serious injury or even death. DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not leave or place magazines, spray cans, volatile substances, or similar objects within 250 mm of the radiator.

  • Page 4: Table Of Contents

    D SERIES DIGITAL RADIATOR WITH WI-FI INDEX 1. General Warnings ......................4 2. Technical information ....................7 3. Installation ........................8 4. Screen & Keypad ......................11 5. Functionality and programming ................. 12 5.1. ON / OFF (stand-by) ....................12 5.2.

  • Page 5: General Warnings

    1. GENERAL WARNINGS WARNINGS This product may be used by children over 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge under strict supervision or instruction in the safe use of the product and if they understand the hazards involved.

  • Page 6: Technical Information

    Any repair or maintenance that requires the product to be opened the product must be carried out by personnel authorised by ROINTE, who must also be notified if a leak is observed. Only official spare parts approved by ROINTE should be used. Please observe the current and relevant regulations when disposing of this product and its thermal fluid.
  • Page 7 Do not pull on the cable. ROINTE cannot be held responsible for incorrect sizing of the product unless it has been followed by an official ROINTE technical study. Before the first start-up, or before the start of winter, or when the product has not been used for many days, the appliance should be cleaned (follow the steps in the “maintenance”...
  • Page 8 D SERIES DIGITAL RADIATOR WITH WI-FI...

  • Page 9: Installation

    We recommend using a trusted Rointe supplier for installation of the product. Find the nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk. IMPORTANT: Prior to installation, please locate the metal tag located at the back of the product and note the product reference and serial number.
  • Page 10 D SERIES DIGITAL RADIATOR WITH WI-FI WARNING: The weight of some of the products may be heavy. The installation may require two people. IMPORTANT: Please follow these instructions carefully. 1. Remove the packaging and check that the installation contains brackets, screws, rawl plugs and a cardboard template.
  • Page 11 7. Connect your product to the power supply and switch it on. 8. See section 5 for operating instructions. IMPORTANT: Measurement template per model. 0330RAD 0550RAD 0770RAD Floor Floor Floor 1430RAD / 0990RAD 1210RAD 1600RAD Floor Floor Floor...

  • Page 12: Screen & Keypad

    D SERIES DIGITAL RADIATOR WITH WI-FI 4. SCREEN & KEYPAD COMFORT / ECO / ANTI- FROST mode indicator Wi-Fi connection status indicator MANUAL / AUTOMATIC / PILOT WIRE* function indicator Heating element active / Fuzzy Logic Energy Control Control panel...

  • Page 13: Functionality And Programming

    It is possible to change the radiator time from the control panel, but it is preferable to wait for automatic synchronisation once it is paired with the Rointe Connect application and the product is connected to the E-life Technology servers.

  • Page 14: Adjust The Temperature

    D SERIES DIGITAL RADIATOR WITH WI-FI Use the buttons to set the hour and then press to confirm. Then use the buttons to set the minutes and press to confirm. Finally, use the buttons to set the day (1 = Monday, 2 = Tuesday etc.) and confirm by pressing the button.

  • Page 15: Main Menu

    5.5. MAIN MENU The Main Menu is accessed by pressing the menu button. You can navigate through the different options available on the menu by pressing the buttons to move left and right respectively and to scroll through all 4 options. The selected sub-menu will be highlighted with a frame, as shown in the image to the right on the ‘Settings’...

  • Page 16: Main Menu: Energy Sub-Menu

    D SERIES DIGITAL RADIATOR WITH WI-FI • Wi-Fi settings This option prepares the product to perform the PAIRING mode, creating its own network to which we will connect for the correct configuration of the product. Make sure that the icon...
  • Page 17 • Rointe Eye Detect function Allows you to enable or disable the Rointe Eye Detect function. Using the buttons select ON to activate or OFF to disable. Once the desired option is selected press to confirm and return to the main display.

  • Page 18: Main Menu: Equilibrium / Balance Sub-Menu

    D SERIES DIGITAL RADIATOR WITH WI-FI By pressing we can know the MAC address and RSSI, signal strength which WIFI STATUS MAC: is measured in dbm. When this appears, if you press the power button once more, 0 :50:93 it gives you the option to update the firmware. If you press the same button again C4:03:F6 it will ask you “Wi-Fi?”...

  • Page 19: Manual/Automatic Functions

    The ‘Program’ sub-menu provides access to functions related to programming the product. To access, select the screen, the icon displayed in the Main Menu buttons and press to confirm. The icons below provide access to the various submenus explained below: PILOT WIRE function MANUAL / Programming...
  • Page 20 D SERIES DIGITAL RADIATOR WITH WI-FI • Start programming for AUTOMATIC function To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted. Press the button to access and the display panel will show a flashing screen.

  • Page 21: User Mode

    5.9.3. USER MODE To enter the USER function, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000. To enter the PIN use the buttons to move left, right, up or down to select the correct numbers, pressing...
  • Page 22 D SERIES DIGITAL RADIATOR WITH WI-FI • Change PIN code To change the PIN code of your product, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to confirm. Use the buttons to move left, right, up or down to select the new numbers, pressing after each number is highlighted to confirm.

  • Page 23: Pilot Wire Function

    5.9.4. PILOT WIRE FUNCTION The PILOT WIRE function allows you to control your heating only via the pilot wire controller. Activate or deactivate the pilot wire control function. Use the , keys, select ON to activate and OFF to deactivate. Press to confirm and exit.

  • Page 24: Maintenance And Cleaning

    Any incident detected in your Rointe product can be dealt with by the seller of the product or in a more agile way through the manufacturer itself.
  • Page 25 Any accident deemed to be beyond ROINTE’s control, such as (but not limited to): lightning, fire, flood, natural disasters, public disorder, atmospheric or geological phenomena, and all those of a similar nature.
  • Page 26 Defective parts or parts removed or replaced shall become the property of ROINTE and must be returned as such. 2.4. The product must be installed in such a way as to allow access by ROINTE technicians or authorised persons in the event that they need to access the product for repair or maintenance.

  • Page 27: How To Register Your Product Guarantee

    10. HOW TO REGISTER YOUR PRODUCT GUARANTEE IMPORTANT: It is important that you register your ROINTE product as part of our guarantee service, in case you wish to make a claim. You can register your ROINTE product in the following ways: Go to https://rointe.com/uk/register-your-guarantee/...

  • Page 29: Eu Declaration Of Conformity

    DECLARATION OF CONFORMITY / DECLARACIÓN DE CONFORMIDAD / DECLARAÇÃO DE CONFORMIDADE / VERKLARING VAN CONFORMITEIT The company / la compañía / a empresa / het bedrijf, ROINTE, Pl. Vicente Antolinos - C/E, parcela 43, 30140, Santomera (Murcia) España Declares under his responsibility / declara / declara / verklaart :...
  • Page 30 D SERIES DIGITAL RADIATOR WITH WI-FI...
  • Page 31 D SERIES DIGITAL RADIATOR WITH WI-FI...
  • Page 32 Peterborough PE7 8JA T. 0203 321 5928 Copyright © Rointe Heating 2022. All rights reserved. As part of our continuous improvement policy, we reserve the right to alter or modify any product or specifications without prior notice. This also applies to products that have already been ordered, provided that such alterations can be made without subsequent changes to the already agreed specifications.

This manual is also suitable for:

0330rad0550rad0770rad0990rad1210rad1430rad ... Show all
