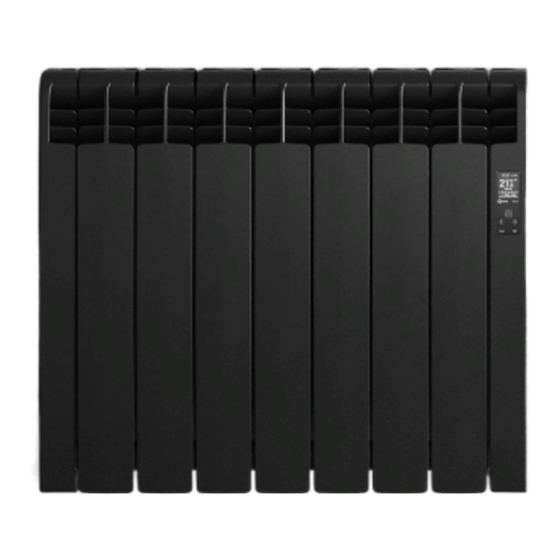

- Page 1 User Manual D Series radiator Models 0330RAD | 0550RAD | 0770RAD | 0990RAD | 1210RAD | 1430RAD | 1600RAD Please read this manual carefully before installation and operation. Please keep this manual for future reference and your product guarantee conditions.
-
Page 2: Table Of Contents
Thank you for choosing this product. Please read this manual carefully before operation and retain for further use. ROINTE digital electric radiators are designed for all types of environments and to meet any thermal need. The careful choice of components and materials ensures efficiency, without affecting comfort. - Page 3 IMPORTANT: To disconnect the product from the main power supply, remove the plug from the socket. Do not pull the cable. WARNING: If the power cable is damaged, it must be replaced by ROINTE or its authorized personnel in order to avoid any damage.
-
Page 4: Features & Functions
• Built-in WiFi & e·life technology The high powered WiFi module and e·life technology, built into your Rointe product, allow real-time synchronization with the Rointe Connect app. Any change made via the Rointe Connect app will update your product instantly for easier energy management. You won’t need intermediate or additional devices. -
Page 5: Installation
D SERIES DIGITAL WIFI RADIATOR 3. INSTALLATION We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on 0203 321 5928 or using the locator at www.rointe.co.uk. IMPORTANT: Before installation, please locate the metal tag situated on the back of the product and note the product reference and serial number. - Page 6 Inside the product packaging, you will find an installation kit. You will need a drill, rubber mallet, spirit level and a pencil to complete the installation. IMPORTANT: Please follow these instructions carefully. Remove packaging and check installation kit contains brackets, screws, rawl plugs and cardboard template.
- Page 7 D SERIES DIGITAL WIFI RADIATOR IMPORTANT: Template measurements per model 0330RAD - 3 elements 0550RAD - 5 elements 0770RAD - 7 elements 0990RAD - 9 elements 1430RAD - 13 elements 1210RAD - 11 elements 1600RAD - 15 elements...
-
Page 8: Control Panel
4. CONTROL PANEL Pilot Wire* with User Hourly programming mode Day of the week 12 Comfort mode Current time 13 Eco mode Set temperature 14 Anti-Frost mode Control panel locked / 15 WiFi status indicator unlocked Manual mode 16 Heating element active Fuzzy Logic Energy Automatic mode Control active... -
Page 9: Operation & Programming
5.2 Lock / unlock keypad The keypad can be locked using the control panel or the Rointe Connect app. You must unlock the keypad via the method used to lock it. To lock / unlock the keypad using the product control panel, press and hold together for 3 seconds. - Page 10 5.4 Heating elements If the room temperature is lower than the product set temperature, an icon will show in the top right of the screen. This means that the heating elements are active to increase the room temperature. When Fuzzy Logic Energy Control technology is active, this symbol will change to the top right of the screen.
- Page 11 D SERIES DIGITAL WIFI RADIATOR • WiFi network Shows product WiFi network and PIN for pairing. Make a note of these to enter in the Rointe Connect app. Press to exit. • WiFi connection When the smartphone is connected to the radiator network, the following display will appear: •...
- Page 12 5.5.2 Features menu Press the button to access the main menu. Use the button to navigate to FEATURES and press . Then choose a submenu using the button and press . The available submenus are: • Open Windows Use the buttons to select whether you want this function on / off and press to save.
- Page 13 D SERIES DIGITAL WIFI RADIATOR • Manual / Automatic mode This switches between Manual or Automatic mode. Press to toggle between MAN or AUTO. Do not touch any buttons for 30 seconds to save and return to main screen. Manual mode allows you to manually adjust product temperature.
- Page 14 • Select hours Start on 0h (midnight). Press to choose Eco mode, press again for Comfort mode or press again for Off mode for this hour. STEP 4 to move onto the next hour and repeat the Eco / Comfort / Off mode selection using Repeat until all hours are programmed.
- Page 15 D SERIES DIGITAL WIFI RADIATOR • Change PIN , and to select new numbers, pressing after each to confirm. OPTION 2 Then move to OK and press . The screen will show PIN changed. Please remember your PIN for the future. You will need this to access the User mode menu.
-
Page 16: Quick Start Guide
6. QUICK START GUIDE D SERIES BASIC OPERATION Turn product on / off • Press once. Lock / unlock control panel • Press and hold together for 3 seconds. Adjust day and time • Press once. Use to highlight for settings and press •... - Page 17 D SERIES DIGITAL WIFI RADIATOR D SERIES AUTOMATIC MODE 1. Select Automatic mode • Press once. Use to select the top left setting for MAN/AUTO. • Use to toggle between MAN (manual) or AUTO (automatic). • Do not touch the keypad for 60 seconds to confirm and exit to main screen.
-
Page 18: Maintenance And Cleaning
The symbol of the container crossed out over a horizontal line is marked on all of ROINTE products to remind the consumer of the obligation to separate them on disposal. The consumer should contact their local authority or council office, or original point of sale to learn about the correct method of disposal for this product. -
Page 19: Terms And Conditions
D SERIES DIGITAL WIFI RADIATOR 9.1 Terms & conditions 1. ROINTE guarantees there are no material defects of design or manufacture at the time of original purchase. ROINTE guarantees the aluminium body for 120 months and electric plus electronic components for 24 months for this product only, provided it has not been modified in any way. - Page 20 ROINTE and should be returned as such. 2.6. The product must be installed in a way that allows access for ROINTE technicians or authorised persons if they need to gain access to the product for repair or maintenance.
-
Page 21: How To Register
D SERIES DIGITAL WIFI RADIATOR 9.2 How to register your product guarantee IMPORTANT: It’s important to register your ROINTE product as part of our guarantee service, in case you wish to make a claim. You can register your ROINTE product in the following ways: WEBSITE Go to www.rointe.com/uk/register-your-guarantee/. - Page 24 6 Rue Duret, 75116 Paris T. 01 73 05 70 01 ª ” ~ “ ± Copyright © Rointe Heating 2020. All rights reserved. As part of our continuous improvement policy, we reserve the right to alter or modify any product or specifications without notice.
