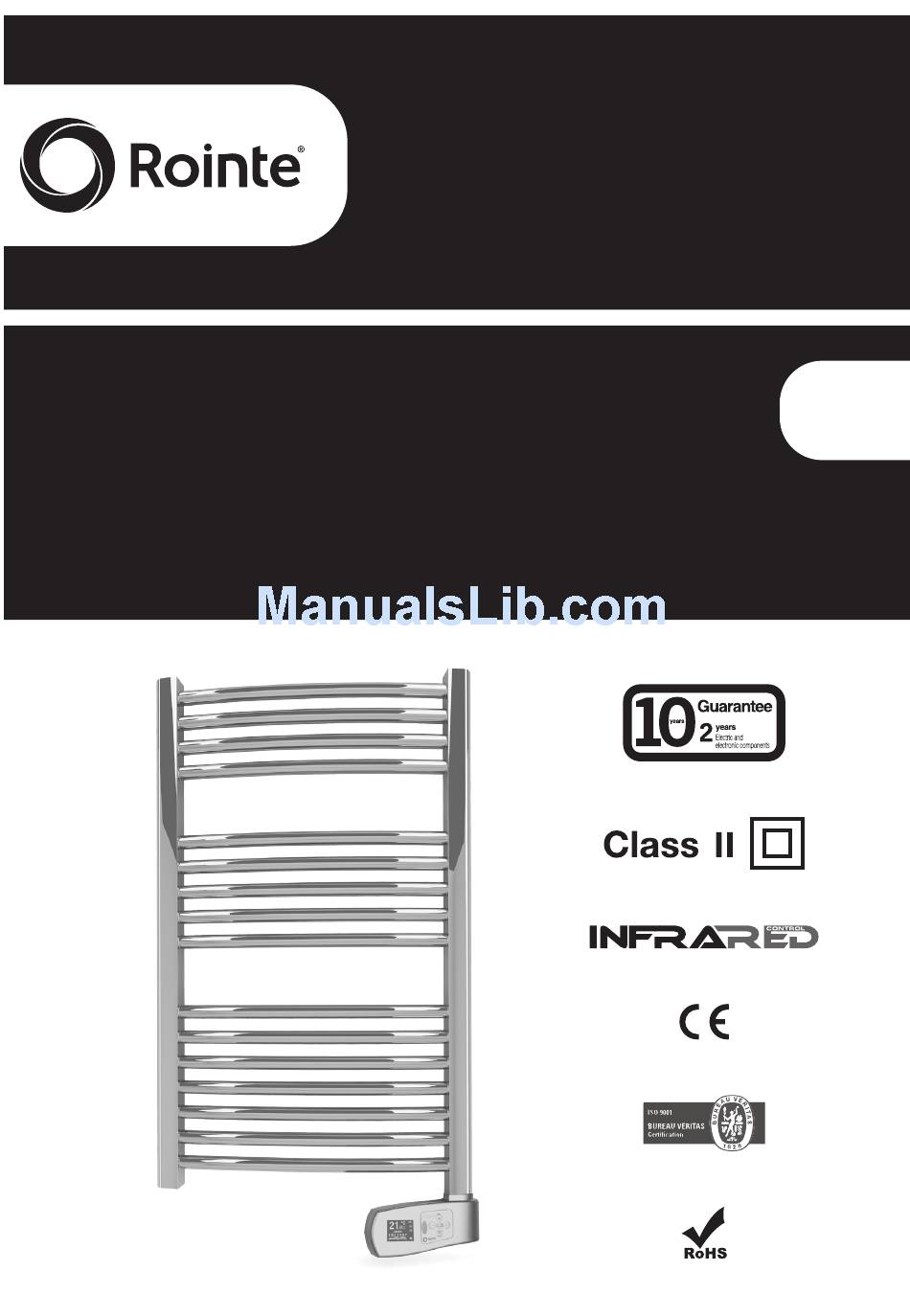

- Page 1 SYGMA INSTRUCTIONS MANUAL SYGMA DIGITAL ELECTRIC TOWEL RAIL MOUNTING, INSTALLATION, STARTING AND OPERATION...
- Page 2 SYGMA WELCOME Dear Customer, Thank you for choosing the SYGMA digital electric towel rail, with an exclusive electronic temperature programmer and made with the highest quality materials especially for you. The SYGMA digital electric towel rail have exceeded the most stringent quality controls in order to comply with the most rigorous requirements for safety.
-
Page 3: Table Of Contents
ENGLISH ATTENTION: If you are the owner of a model bought in the UK or Éire, please refer ONLY to its manual as the specifications of the towel rails are different. TABLE OF CONTENTS 1. DESCRIPTION OF THE SYGMA TOWEL RAIL ......4 1.1. -
Page 4: Description Of The Sygma Towel Rail

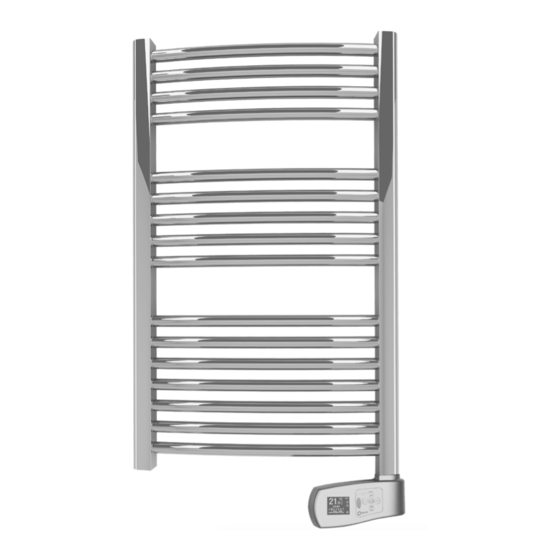

SYGMA 1. DESCRIPTION OF THE SYGMA TOWEL RAIL 1.1. Front panel parts TFT DISPLAY CONTROL PANEL... -
Page 5: Switching On & Off (Stand-By)
1.1.1. TFT display symbols SEGMENT INDICATION PROGRAMMING DAYS OF THE WEEK TIME OF DAY TEMPERATURE SELECTED OPEN WINDOW FUNCTION TOWEL RAIL HEATING MANUAL / AUTOMATIC FUNCTION COMFORT / ECO / ANTI-FROST MODE LOCKING THE CONTROL PANEL 1.2. Switching On & Off (stand-by) By pressing the key , we switch the towel rail on or off. -
Page 6: Setting The Day And Time
10 seconds. By pushing the button again the towel rail will go into standby mode with the word “Standby” appearing followed by the Rointe logo. 1.3. Setting the day and time In order to adjust the time and day of the week, please follow the steps below. -
Page 7: Locking The Control Panel
1.4. Locking the Control Panel By pressing the keys at the same time for 3 seconds, we lock the control panel. The control panel symbol is activated and the keys will not respond when pressed. If one key is pressed this image will appear in the screen of the towel rail: To unlock, press the keys again, at the same time for 3... -
Page 8: Two-Hour Boost Mode (2H)
SYGMA 1.6.2. Automatic mode This mode activates the programming set on the heated towel rail. 1.7. Two-hour Boost Mode (2H) By pressing the key , the heated towel rail will work for two hours at maximum power, regardless of any other mode. This mode takes priority over any other. -
Page 9: Screen Brightness Function
will appear showing that the anti-frost mode is activated: This function will be active for 2 hours. If the button is pushed during this period the towel rail will switch off. Pushing the button again will switch on the towel rail without the “Open Window” function being switched on. -
Page 10: Programming The Sygma Towel Rail
SYGMA You can change the “Standby” mode brightness by pushing the button to move the frame to the “STAND-BY” position. You can then adjust the brightness by pushing the same keys. To finish the programming wait for 10 seconds without pressing any buttons. - Page 11 Using the buttons we can increase or decrease the eco mode temperature, from 15ºC to 19,5ºC. The selected temperature will be applied later when programming an hour with the eco mode setting. Next we press the button to move to selecting the days of the week that we wish to program from (Monday) to (Sunday).
-
Page 12: Mounting Instructions
SYGMA Move through the hours using and change each hour’s programming using the button every time you wish to change the setting. If you do not wish to change the programming of a particular hour, continue to the next hour you wish to change. Once all of the hours are programmed, or left blank without programming, press the button to exit or leave the unit for 30 seconds without pressing anything. -
Page 13: Connecting Instructions
10 x 40 mm Rawl Plug Bracket 5.5 x 50 mm screw 5 x 12 mm screw Bracket insert Bracket head 8 x 26 mm screw Towel Rail Figure 1 - Cross section of the mounting of the towel rail 4. - Page 14 SYGMA This appliance is designed to be permanently installed connected to fixed facilities. The heated towel rail power supply circuit must have an all-pole circuit breaker switch with a separation of at least 3 mm between the contacts. The appliance must be installed, if possible, away from any source of draughts (windows, doors) or any other thing which may affect its functioning.
-
Page 15: Sygma Towel Rail Technical Characteristics
4.1. SYGMA Towel Rail Technical Characteristics STN030SE** STN050SE** STN075SE** STN100SE** Figure 2 - Towel Rail Measures REFERENCE H1 (mm) H2 (mm) V1 (mm) V2 (mm) V3 (mm) V4 (mm) STN030SE** 1,200 1,040 1,300 STN050SE** 1,600 1,360 1,700 STN075SE** 1,800 1,360 1,900 STN100SE**... - Page 16 SYGMA...
-
Page 17: Specific Regulations For Bathrooms
4.2. Specific Regulations for Bathrooms This device is in compliance with CLASS II safety regulations (double insulation). It can be installed in areas 2 and 3, position A and B whenever it observes the following regulations: 600 mm 600 mm •... -
Page 18: Safety
Guarantee issued to the buyer by the dealer or installer is presented and when the guarantee states the towel rail serial number and model (on the technical data label) and its date of purchase. ROINTE reserves the right to refuse the guarantee service when this information has been removed or changed following the original purchase of the product. - Page 19 6.3.2.1. Incorrect use of the product for other than normal purposes or failure to observe the instructions given by ROINTE regarding the use and maintenance of the heated towel rail, as well as the installation or use of the product in a way that fails to comply with the applicable technical safety standards.
- Page 20 The symbol of the container crossed out over a horizontal line is marked on all of ROINTE’s products to remind the consumer of the obligation to separate them on disposal.
- Page 23 SYGMA DIGITAL ELECTRIC TOWEL RAIL...
- Page 24 ROINTE UK ROINTE HEAD OFFICE Catalyst House 720, Centennial Pol. Ind. Vicente Antolinos Court, Centennial Park C/ E, Parcela 43 Elstree, Herts, WD6 3SY 30140 Santomera, Murcia, España T. 01432 598 019 T. 902 158 049 F. 0208 953 5861 F.
