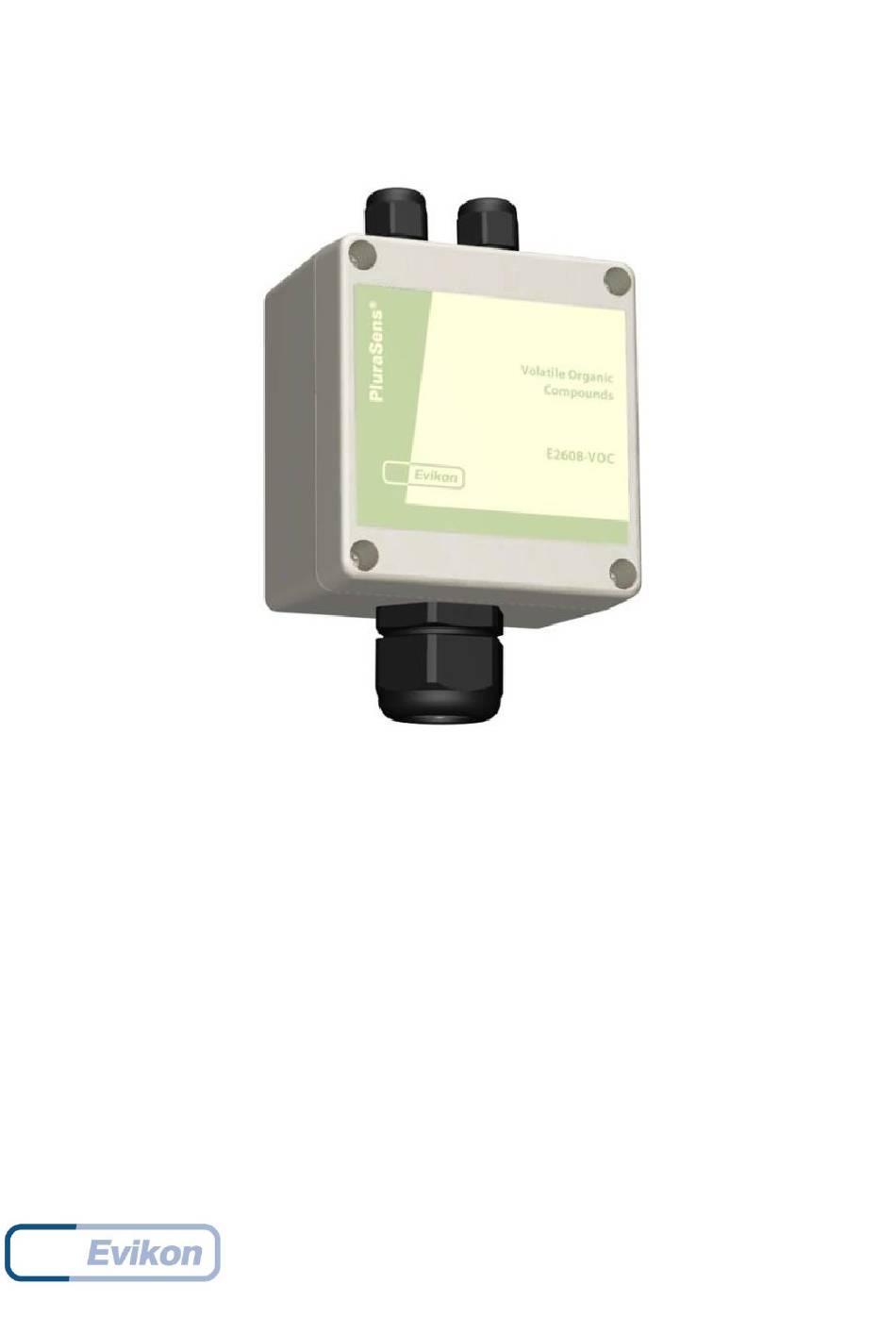

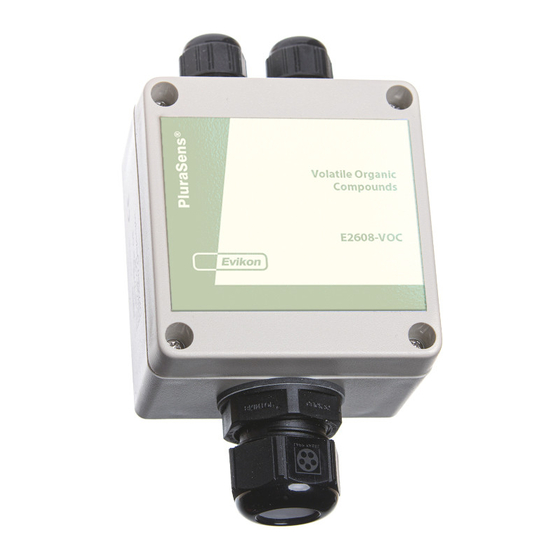

- Page 1 PluraSens ® Solvent Vapor Detector-Transmitter E2608-VOC User Manual ...
-
Page 2: Table Of Contents
E2608-VOC Rev 05.03.2021 Table of contents Acetone 4 Benzene 5 Ethanol 6 Ethyl acetate 7 Toluene 8 Xylene 9 Specifications 10 Product description 12 Safety requirements 12 Operating conditions 12 Installation guidelines 13 Wall mount version 13 Duct mount version 13 ... - Page 3 E2608-VOC Rev 05.03.2021 Modbus holding registers 20 Warranty 25 Manufacturer contacts 25 3 ...
-
Page 4: Acetone
E2608-VOC Rev 05.03.2021 Acetone A colorless organic solvent with a characteristic pungent odor that is volatile and flammable with the chemical formula (CH ) CO. 3 2 Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone. -
Page 5: Benzene
E2608-VOC Rev 05.03.2021 Benzene A colorless liquid with an aromatic odor that is highly flammable with the molecular formula C H . 6 6 Synonyms/Trade Names: Benzol, Phenyl hydride. Chemical formula ... -
Page 6: Ethanol
E2608-VOC Rev 05.03.2021 Ethanol A clear colorless liquid with a faintly sweet odor and pungent taste. Synonyms/Trade Names: ethyl, alcohol. Chemical formula CH CH OH 3 2 Molar weight 46 Relative gas density (to air) 1,59 Conversion* 1 ppm = 1.89 mg/m ... -
Page 7: Ethyl Acetate
E2608-VOC Rev 05.03.2021 Ethyl acetate A colorless organic compound with a sweet pear-like smell that is highly flammable. Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc. Chemical formula C H O 4 8 Molar weight 88 Conversion* 1 ppm = 3.60 mg/m ... -
Page 8: Toluene
E2608-VOC Rev 05.03.2021 Toluene A clear, colorless liquid with a sweet smell that is highly flammable. Synonyms/Trade Names: methylbenzene, phenylmethane. Chemical formula C H CH 6 5 Molar weight 92 Conversion* 1 ppm = 3.77 mg/m Boiling point 110.7°C ... -
Page 9: Xylene
E2608-VOC Rev 05.03.2021 Xylene A colorless, flammable liquid with a chemical smell. Xylenes are produced by the methylation of toluene and benzene. The term is used for any of three isomers of dimethylbenzene, or a combination thereof. Synonyms/Trade Names: xylol, dimethylbenzene. ... -
Page 10: Specifications
E2608-VOC Rev 05.03.2021 Specifications Detected vapors Toluene, Xylene, Ethanol, and other solvents Sampling method Diffusion Sensor type Metal oxide semiconductor Default calibration Toluene Typical detection 0...100% LEL 0...1000 ppm range Resolution / digital unit 0.1% LEL 1 ppm Alarm setpoints RE1 (LOW): 20/16 % LEL; ... - Page 11 E2608-VOC Rev 05.03.2021 EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014 -40...+70°C; <95% RH non-condensing, 0,9...1,1 atm Explosion safe indoor areas Operating conditions Normal ambient oxygen level Avoid strong mechanical shock, vibrations, or EMI Avoid exposure to corrosive gases or silicone-containing products Other options ...
-
Page 12: Product Description
E2608-VOC Rev 05.03.2021 Product description E2608 series detectors-transmitters belong to the PluraSens® family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with ... -
Page 13: Installation Guidelines
E2608-VOC Rev 05.03.2021 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN ... -
Page 14: Mounting Dimensions
E2608-VOC Rev 05.03.2021 Mounting dimensions Wall mount version with mounting lugs Duct mount version 14 ... -
Page 15: Sensor Probe Handling
E2608-VOC Rev 05.03.2021 Sensor probe handling The wall-mount version of the detector-transmitter is available with a remote probe (see drawing below for dimensions). The remote probe is connected to the main unit with a ... -
Page 16: Electrical Connections
E2608-VOC Rev 05.03.2021 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let ... -
Page 17: Operation
E2608-VOC Rev 05.03.2021 Operation Turn on the power. The instrument warm-up time takes about 5 minutes after switching on and the final sensor stabilization time to maximum accuracy takes about 60 minutes. The ... -
Page 18: Delivery Set
E2608-VOC Rev 05.03.2021 Delivery set Detector-transmitter E2608 (wall mount or duct mount version) ● ● Mounting accessories: ○ 4 cross-shaped mounting lug with screws and 4 screws with plastic dowels for wall mount version ... -
Page 19: Configuring
E2608-VOC Rev 05.03.2021 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more ... -
Page 20: Modbus Rtu Communication
E2608-VOC Rev 05.03.2021 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU ... - Page 21 E2608-VOC Rev 05.03.2021 1200, 2400, 4800, 9600, 19200, 0x0005 5 / 40006 RW Baud rate * 9600 38400, 57600 0x0006 6 / 40007 RW Response delay, ms 1...255 10 1 – No parity bit, 1 stop bit (default after factory reset) 2 –...
- Page 22 E2608-VOC Rev 05.03.2021 0 –none Parameter tied to relay 2 – gas concentration 2 0x00D3 211 / 40212 RW RE1 9 – control by Modbus control, state set in MHR / 40214 0 – none Parameter tied to relay 2 – gas concentration 0x00D4 ...
- Page 23 E2608-VOC Rev 05.03.2021 221 / LOW setpoint for relay see 0x00DD RW 0...65535 (gas units) Specifications 40222 RE1 222 / HIGH setpoint for relay see 0x00DE RW 0...65535 (gas units) 40223 RE1 Specifications 223 / LOW setpoint for relay see 0x00DF ...
- Page 24 E2608-VOC Rev 05.03.2021 257 / 0x0101 R Raw gas sensor data 0...4095, ADC units 40258 259 / Gas concentration, 0x0103 R 0...65535, gas units 40260 gas units 261 / 0% value User 0x0105 RW -32000...+32000, gas units 40262 for analog output 1 ...
- Page 25 unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 25 ...
