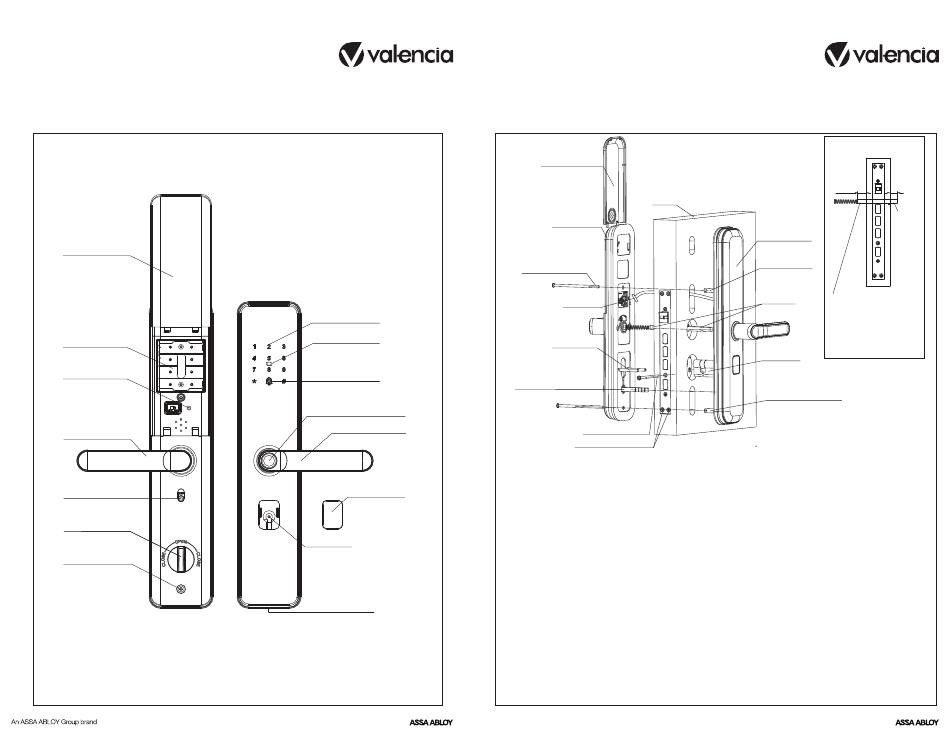

Product Layout:
Battery Cover
Battery Box
Reset Button
Inside Handle
Safety Button
Night Latch
Screw
Please keep internal/external panel clean before installation.
Keypad
RFID Scanner
Door Bell
Fingerprint Scanner
Outside Handle
Key Cover
Keyhole
USB External
Power Port
2
Battery cover
Door
Back panel
Panel screw(cut
when necessary)
Data line
Guide post
Lock core(cut when
necessary)
Cylinder screw
Lock body screw
Panel and lock body installation steps.
1. Adjust latch direction according to door opening side.
2. Lock body and cylinder installation: Put lock body into hole made then tighten screw,
put cylinder into lock body guard hole, after that tighten cylinder screw.
3. Panel Installation
a. Change handle according to door opening side put stud and guidepost on front panel
part at same time. Put spring into square hole, cut spindle and lock core when
necessary.
b. Put spindle into lock body(follow drawing), take data line from above lock body into
inside door, spindle and stud should be in corresponding hole, front panel should be
compactly installed on the door.
c. Connect the main board cable to the corresponding interface of the back panel.
d. Put spindle, cylinder and snib core into corresponding position, tighten back
panel onto the door and tight panel installation screw.
e. Try handle & snib, check if it works well otherwise adjust panel & cylinder to make
sure it can work smoothly.
f. Install battery cover, try opening by fingerprint, RFID card or pin code or manual key.
Spindle and Screw
Installation
10~30 15
打点端
Front panel
Installation
Screw
Inside Outside
Spindle
Spindle with spot, direction
from outside to inside door
(outside keep 15mm, inside
keep 10-30 mm , spring
should plug in the square
Cylinder
hole)
Instalation screw
.
