Summary of Contents for REED R8802

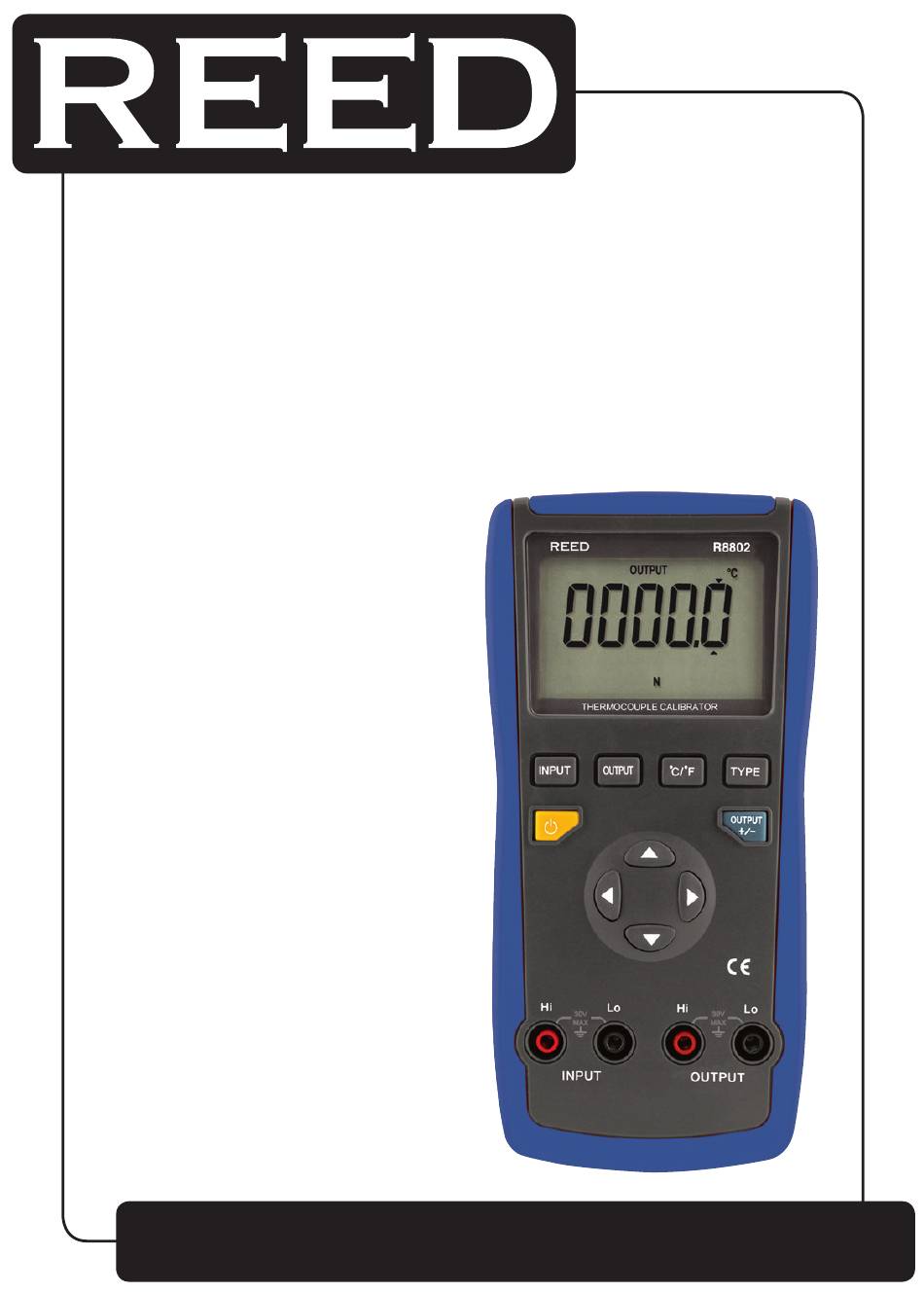

- Page 1 Black R8802 Model Pantone 534 Blue - 100/80/30/5 Thermocouple Calibrator Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...
-
Page 2: Table Of Contents
Table of Contents Safety .................... 3 Features ..................3 Specifications ................3-5 Instrument Description ..............6 Operating Instructions ..............7-8 Thermocouple & DC Voltage Output ........... 7 Thermocouple & DC Voltage Measuring ........7 Automatic Temperature Compensation ........8 Auto Power Off ................8 Software .................. -
Page 3: Safety
Safety • Produced in accordance with GB4793. • Do not use the meter if any parts are damaged or if the back cover is open. • Never apply over 30V between any two terminals or a terminal and grounding terminal. •... - Page 4 Standard: NIST-175 Thermometric Scale: ITS-90 Temperature Coefficient: ±0.005% x measuring range / °C (0 to 18°C, 28 to 50°C) Tolerance of Cold Junction: ±0.5°C (10 to 50°C) Output Specifications Function Range Resolution Accuracy -100 to 100mV 0.01mV ±0.03% ±2 dgts -210 to 1200°C -346 to 2192°F -200 to 1372°C...
- Page 5 Measurement Specifications Function Range Resolution Accuracy -25 to 100mV 0.01mV ±0.03% ±2 dgts -210 to 1200°C -346 to 2192°F -200 to 1372°C -328 to 2501.6°F ≤-100°C: 0.03%±1.5°C -200 to 400°C 0.1°C ≤-148°F: 0.03%±2.7°F 0.1°F > -100°C: ±0.03±1°C -328 to 752°F >...
-
Page 6: Instrument Description

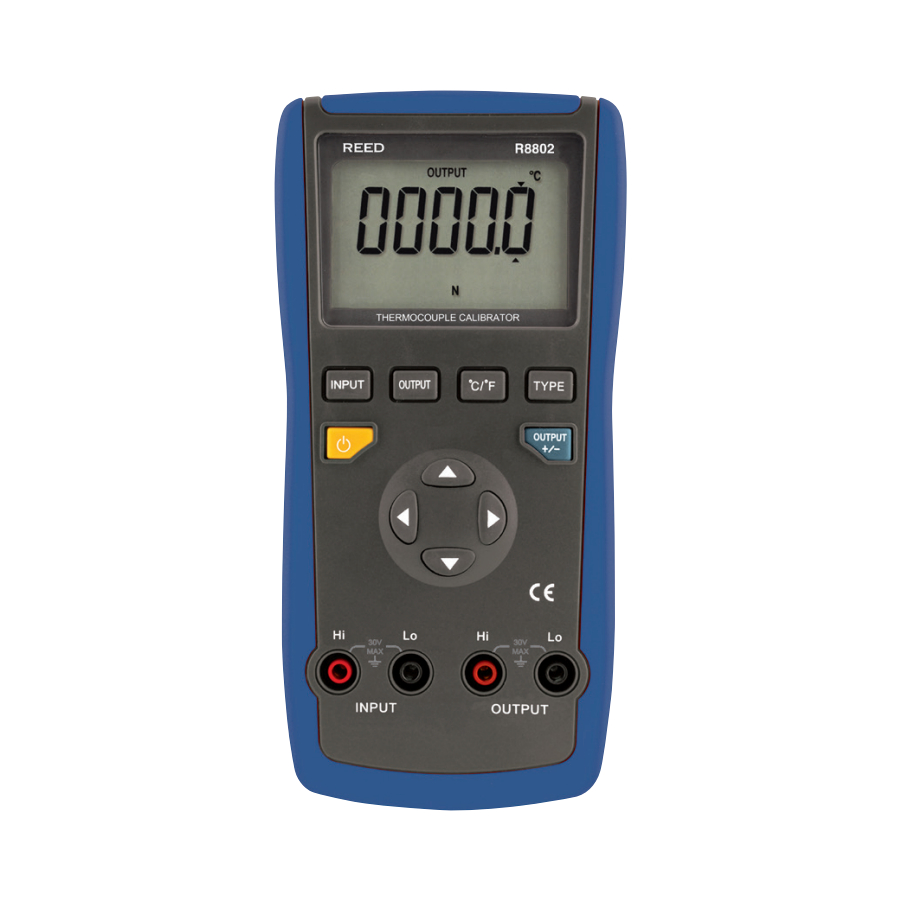

Instrument Description LCD Screen °C/°F Button Type Button Output “+/-” Button Negative Output Positive Output Negative Input Positive Input Directional Pad 10. Power Button 11. Input Button 12. Output Button Display Description Low Battery Icon Function Icons °C/°F Icons Reading mV Icon Button Lock Thermocouple Type... -
Page 7: Operating Instructions
Operating Instructions Thermocouple & DC Voltage Output Press and hold the Power button to turn the meter on. Press the Output button. The Output icon will appear on the LCD. Press the Type button to select the type of thermocouple probe or the range of voltage (mV). -
Page 8: Automatic Temperature Compensation
Automatic Temperature Compensation Press and hold the Power button to turn the meter on. Press the Input button. The Input icon will appear on the LCD. Open the rear bracket and do not touch it while initiating the temperature compensation. Press the Type and Input buttons at the same time, the LCD will display CEC 1, which indicates automatic temperature compensation of the opened cool end. -
Page 9: Battery Replacement
Battery Replacement To view the current battery voltage press the Power and Input buttons. The voltage of the battery will appear on the LCD. If the voltage is below 5.6V the low battery icon will appear indicating you will need to change the batteries. - Page 10 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
