Summary of Contents for REED R5408

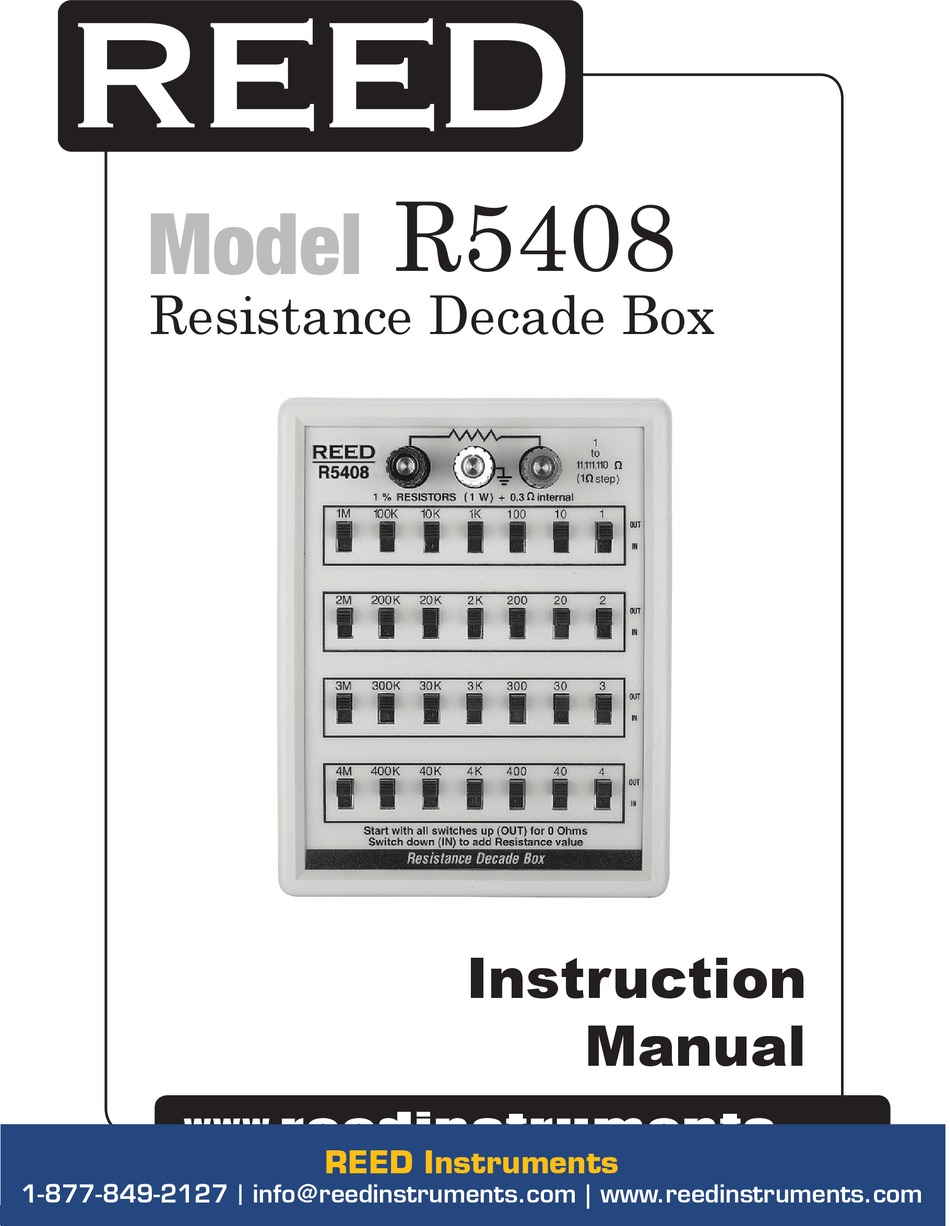

- Page 1 INSTRUMENTS INSTRUMENTS R5408 Model Resistance Decade Box Instruction Manual reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 2 • ABS plastic housing, rugged components Applications Troubleshooting, Maintenance, Education and Vocational training, Production line testing, Radio and TV services, Working standards, Research design & development and Physics laboratory work. INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 3: Specifications

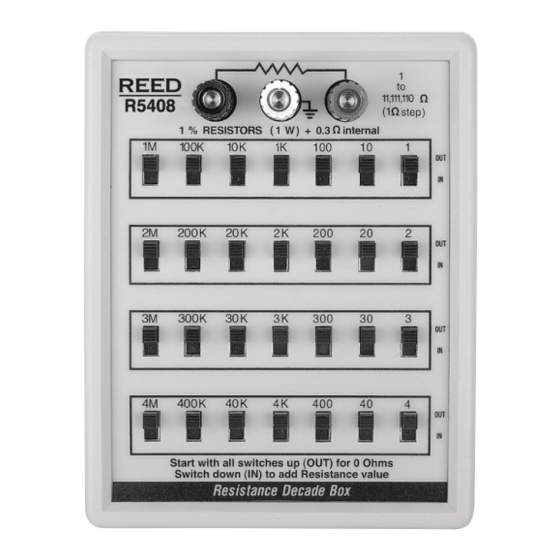

Less than 80% RH Weight 11.29oz (320g) Dimension 5.79 x 4.61 x 2.16” (147 x 117 x 55mm) Product Description 1. Range Select Switch 2. Resistance Output Terminal 3. Ground Terminal INSTRUMENTS reedinstruments REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Operating Instructions
Do not add more then 250 V AC/DC to the output resistance terminals, the resistance is less than 1 W. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com.
