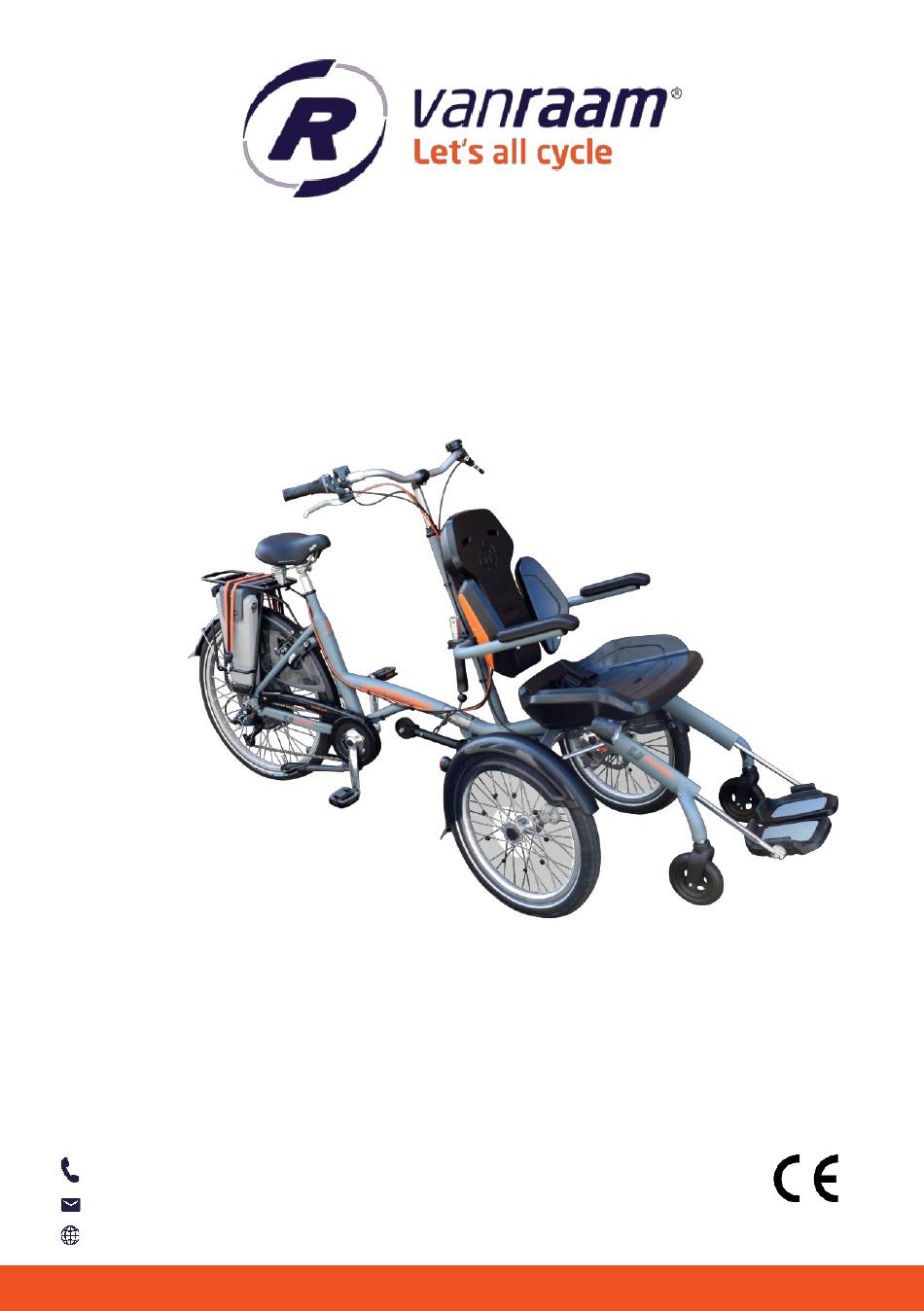

- Page 1 User manual OPair Van Raam Guldenweg 23 7051 HT Varsseveld, The Netherlands +31 (0)315 – 25 73 70 info@vanraam.com Version 21.01 www.vanraam.com...
-
Page 2: Table Of Contents
Table of contents Manufacturer contact details ........................3 Conformity ................................ 3 Introduction ..............................3 Delivery ................................4 Indication................................4 Safety measures............................. 5 Adjustment of the tricycle ........................... 6 Before the first use ............................12 Electro system Silent ..........................19 Van Raam E-Bike App ..........................29 Accessories.............................. -
Page 3: Manufacturer Contact Details
Van Raam Guldenweg 23 7051 HT Varsseveld, The Netherlands +31 (0)315 – 25 73 70 info@vanraam.com www.vanraam.com Conformity Van Raam declares as manufacturer that the OPair3 tricycle, as described in this manual, has been produced in accordance with the Medical Devices Regulation (EU) 2017/745, risk category 1. -
Page 4: Delivery
Delivery The delivery should include the following: Tricycle with packaging • User manual(s) • Possible Smart-battery including card with 5-digit code (depending on options) • Possible chargers (depending on options) • (Spare) keys • Check the delivery immediately after receiving it. In case of damage or incomplete delivery we ask you to contact your dealer immediately. -
Page 5: Safety Measures
Safety measures Ensure the tricycle is in good condition each time before using it. Check before • each ride that the brakes are in order. Check the lighting and make sure there is enough tyre pressure. Regularly check if the wheels, the handlebars and the saddle are properly fixed •... -
Page 6: Adjustment Of The Tricycle
Damaged or worn out parts The replacement and repair of parts (frame, forks, light, brakes, drive mechanism and the handlebars) should always be performed by an authorised dealer. If not, the guarantee ceases to be valid and you will be personally responsible in the event of possible damage. Specific safety parts should always be replaced by new parts! Adjustment of the tricycle Before using the tricycle, adjust its height to the height of the rider. - Page 7 To adjust the saddle: Open the quick-clamp [A]. Slide the saddle to the correct height. Close the quick-clamp. Make sure clothing cannot get caught in the clamp! If the clamp closes too easily, the clamping force is too low. In this case, open the clamp and tighten the nut [B] a bit more.
- Page 8 Do not slide the handlebars stem further than the markings. If you do so, the tube won't be inserted deep enough into the shaft, MIN INSERT increasing the risk of breakage, which may lead to serious injuries. Steering Position You can tilt the handlebar. This affects the distance from the handlebars to the upper body.
- Page 9 Chair Backrest Adjust the position of the backrest and side supports to the passenger. Adjust the backrest to the desired position. To do this: Loosen the screw of the top and/or bottom bar with an Allen key. Turn the backrest to such a position that the passenger feels comfortable.
- Page 10 Footplates Adjust the position of the footplates to the passenger. To adjust the height of the footplate: First determine whether the footplates are in the right position. This depends on the leg length of the passenger. Loosen the screw with an Allen key. The footplates can now be slide out and be put in the correct position.
- Page 11 Chair Hip Belt Wrap the belt around the body and snap it into the clamp. You can remove the seat belt again by pressing the red button. Adjust the belt length to the passenger by following these steps: Open the belt clamp on the bottom of the seat.
-
Page 12: Before The First Use
Before the first use Parking brake Always use the parking brake if you park the tricycle and leave it behind. Block the tricycle with the hydro brake when passengers are getting on and off. To operate the parking brake, squeeze the left brake [A] and secure the brake with the lever [B]. - Page 13 Lighting Normally, the lighting on your bike can be operated manually and set to different modes. However, if your bike is equipped with the Silent Elektro system, your lighting will automatically turn off when the electric system is activated. The controls of both the manually operated and centrally operated lighting is explained below.
- Page 14 Adjust the angle of the front light so that the centre of the light beam is located approximately ten metres in front of the tricycle. Under the pressure switch on the top of the front light is a battery indicator that lights up when the batteries are low.
- Page 15 De verlichting alleen bij stilstand bedienen om gevaarlijke situaties en kans op beknelling te voorkomen. Advies: gebruik de automatische stand van de verlichting. Manually operated rear light The rear light has three options which you can choose by pressing the button repeatedly: On- Auto-Off.
- Page 16 2. Replace the alkaline batteries (1,5 V - 1500 mA) and assemble the cover. Batteries cause environmental pollution. Follow the local regulations during disposal. Centrally Operated Lighting The bike has been equipped with centrally operated lighting, with the lighting being connected to the electric system.
- Page 17 Gears Your tricycle has eight gears. The gears can be adjusted by turning the handle. Never pedal when changing gears. Please note: If your bike has an electric motor at the rear, you must continue pedalling when changing gears. Please note! Do not shift gears and then paddle backwards. This could cause the chain to run off the sprocket.
- Page 18 Practice, in particular, with bends and braking, because a tricycle can react contrary to what you would expect. It may happen that the back wheel comes off the ground on the inside when going round a bend. To avoid this the rider leans towards the inside of the bend with his body.
-
Page 19: Electro System Silent
Obstacles higher than five centimetres must be avoided. • Make sure not to ride at dangerous speeds when riding downhill. Brake on time • and cycle at a moderate speed. Electro system Silent The Silent Electric motor system is a special developed support system by Van Raam for the rehabilitation market. - Page 20 1. On/off button Using the on/off button, the electrical system can be switched on or off. Switching on: Push the button briefly. • Switching off: Push the button for two seconds. • After the system is turned on, the electric motor is active in level 1. When the system is not used, it will automatically turn off after a certain time.
- Page 21 The behaviour of the battery depends on a lot of different factors and is strongly influenced by: capacity and voltage of the battery, degree of support that is used, temperature, wind speed, tyre pressure, cycling speed, weight of the user and the luggage, use of gearing etcetera.
- Page 22 The battery is equipped with a button and indicator that makes it possible to check the charge by briefly pressing the button [A]. The status of the battery is shown with five green indicator LEDs, of which the left most one can blink. That means the battery is nearly empty.
- Page 23 Charging the Battery For the best performance and to prolong the life of the battery, we recommend that you charge the battery at home at room temperature. Only use the charger if the temperature of the environment is between 0 and 35 degrees centigrade.
- Page 24 9. Put the battery back in the holder of the cycle. Slide it behind bar [A] and press it firmly on strip [B]. 10. Pull the handle backwards and push the top of the battery to connect as shown in the drawing and close the lock.
- Page 25 Charger: LED indication Status Green Standby Charging Green Battery full Red, blinking Safety: Polarity inversion; Short; Over temperature; Over power; Over voltage It is better for the battery if it is charged regularly, rather than wait until it is completely drained. Never leave the bike with a drained battery! Backup battery (optional) The bike can be supplied with a second battery.
- Page 26 Charging and maintenance tips for the battery Never leave the bike with an empty battery! We advise you charge the battery as • soon as possible before it’s totally empty. The best storage-charge of the battery is when three to five LED lights are lit. •...
- Page 27 Possible malfunctions The system does not turn on: • Make sure that the battery is properly attached. Check if the switch under the luggage carrier is pressed towards the side of the battery. Check the status of the battery. If it is empty, recharge the battery. If the above action does not help, contact your dealer.
- Page 28 Charger Safety Measures Only charge Van Raam Li-Ion batteries with the included charger. Only connect • the charger to a suitable power point (220-240 Volt AC 50-60 Hz). If the charger is not being used, unplug it from the socket and take the plug out of the battery. The charger may only be used by people who have read the information in this •...
-
Page 29: Van Raam E-Bike App
The Van Raam E-Bike App can be downloaded free of charge from the Google Play Store or Apple App Store. For more information about the Van Raam App, you can visit the Van Raam website: www.vanraam.com. Version 21.01 29/51... - Page 30 From the 15th of July, 2020, all electric Van Raam bicycles will be delivered as Smart E-Bikes. You can recognize this by the large sticker with a yellow border on the battery. If you have a Smart E-Bike and you download the updated app, there are even more options.
-
Page 31: Accessories
Accessories Depending on your order, you can use the accessories described below. Additional accessories are available from your dealer. Detachable frame The wheelchair can be disconnected from the bike part, so that you can use it for walking. Make sure the bike is on a flat surface before you detach the wheelchair-section. - Page 32 Remove the safety pin. Hold the rear part (tricycle part) with one hand and then use your other hand to pull the lever backwards [A], allowing the tricycle to detach. The wheelchair section will tilt forward when the passenger is in it. Otherwise the wheelchair will rest on the supporting wheel.
- Page 33 Headrest To adjust the headrest: Loosen the headrest's screw with an Allen key. Set the headrest at the right height and tighten the screw. Loosen the headrest's nuts with an open-end wrench. The height, depth and angle can be adjusted simultaneously. Now tighten the nuts again.
- Page 34 Foot fixation The feet of the passenger can be fixed by means of two belts. When getting on and off, the footplates can be folded upwards. The footrest can be folded up by pressing the tab [A]. The footplates automatically lock themselves when folded back.
- Page 35 The children's belts go through the middle of the backrest. The adult belts go over the chair. Adjust the seatbelt clamps so the seatbelt is adjusted to the passenger's body. Version 21.01 35/51...
-
Page 36: Technical Specifications
Technical specifications Length (cm) Width (cm) Height (cm) Mounting Height (cm) Inseam Size (cm) 80-95 Front Wheel 20“ Rear Wheel 26“ Weight (kg) approx 58 Max. Load Carrier (kg) Max. Weight Rider (kg) Max. Weight Passenger (kg) Brakes, front Disc Brakes Rear Brakes Cantilever / Rim Brakes Version 21.01... -
Page 37: Maintenance And Adjustments By Owner
Maintenance and adjustments by owner Below are some instructions for maintenance and adjustments that you can perform on a regular basis. This ensures an optimum condition of your bike. Cleaning The frame of the tricycle can be cleaned with a damp cloth. For dirty spots it is recommended to use a mild detergent. - Page 38 Inspection of the tricycle It is necessary to have the bike inspected by a dealer at least once a year. This in order to extend your warranty claim. Please use the 'Service, Maintenance and Modifications Form' at the back of this manual when doing so. The first maintenance will be performed after the first 200 kilometres or two months.
-
Page 39: Repair And Maintenance By Your Dealer
Repair and maintenance by your dealer During the maintenance session, check the brakes, wheels, lights, chain tension and spokes. Also check the tread depth of the tyres. This must be at least one millimetre. Worn tyres or defective parts must be replaced. Also check the operation of the parking brake. -
Page 40: Adjustments By Dealer
Adjustments by dealer The correct tension of the chains Several chains are present on the tricycle. These must have enough room for movement. Without any real effort, the chain must be able to be moved about half a centimetre up and down. - Page 41 Setting the steering In order to realise optimal steering behaviour and minimal tyre wear, the steering must be set correctly. 1. Loosen the left and right nuts of the steering shaft [A]. Please note! This is a nut with a left wire and a nut with a right wire.
-
Page 42: Disposal
Handle Bar Lock on Detachable Frame It is important that the handlebar lock is set up correctly. The locking bolt ensures that the handlebars are locked when the rear frame is detached from the front frame. Check if the handle bar lock has been set up correctly: When the front and rear frame are linked, check if the bracket [A] is not... -
Page 43: Handover/Sale To A New Owner
Handover/sale to a new owner When you hand over your tricycle to a new owner it is important that you also hand over all necessary technical documentation and spare keys, so that the new owner can use the tricycle safely. Guarantee The guarantee is valid for all faults in the product, which are proven to be caused by material or manufacturing error. -
Page 44: Frame Number
Frame number The frame number is printed on the sticker. This sticker is located on the frame, see the image below. Example sticker: Position of sticker: Behind the seat tube Version 21.01 44/51... -
Page 45: Service Record, Maintenance, Modifications And Warranty Claims
Service record, maintenance, modifications and warranty claims To maintain warranty on the Van Raam tricycle, follow this service schedule. Service: Carried out (date): Signature dealer: Service after the first 200 KM or two months. Service 1 year after delivery. Service 2 year after delivery. Service 3 year after delivery. - Page 46 Here you have space to take notes or write down the maintenance on your bike: Version 21.01 46/51...
- Page 47 Version 21.01 47/51...
- Page 48 Version 21.01 48/51...
- Page 49 Version 21.01 49/51...
- Page 50 Version 21.01 50/51...
-
Page 51: Delivery And Service Form
Delivery and service form Congratulations on your purchase of your Van Raam tricycle. This bike is produced with utmost care. To guarantee the quality as much as possible Van Raam produces the cycles according to the ISO 9001:2015 quality standards. Van Raam has been certified by DNV GL Business Assurance B.V.
