Summary of Contents for Dormakaba ITS9613

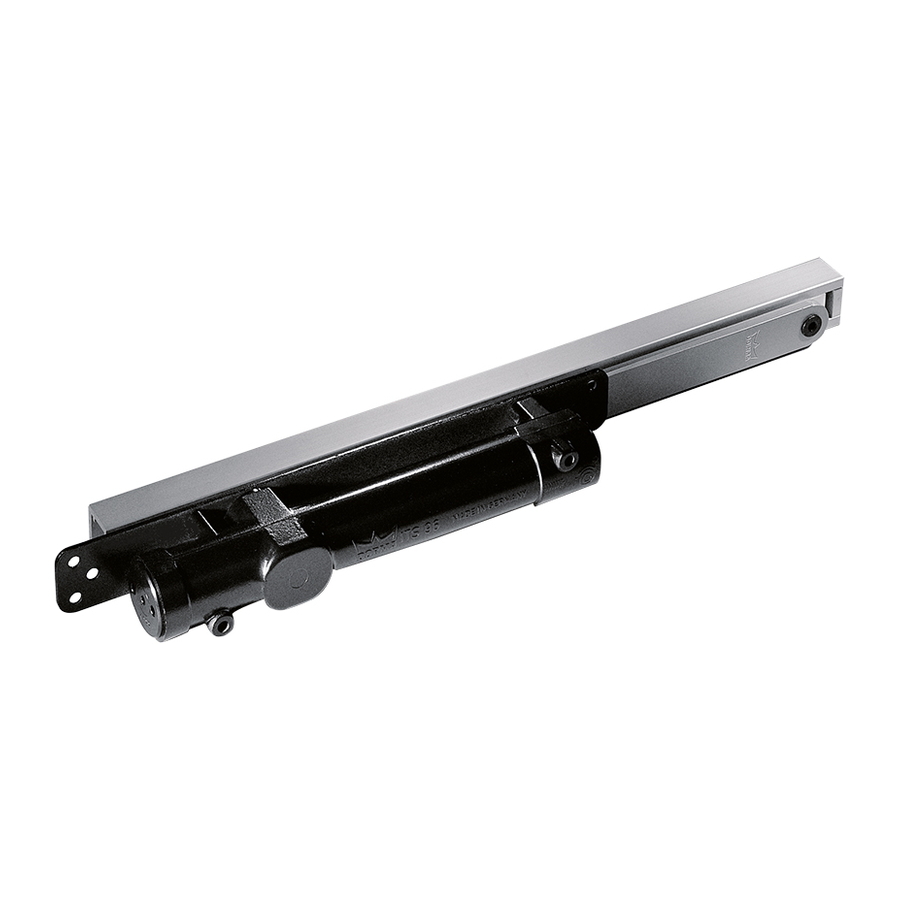

- Page 1 ITS9613 and ITS9625 Closer in frame, track in door (Metal door and frame) Installation instructions 08279641 – 02-2020 | EN |...
-
Page 2: Table Of Contents
ITS9613 and ITS9625 (Metal door) Table of Contents Installation Instructions Table of contents 1 Technical specifications Overview Tools recommended Handing the door Installation instructions Installing closer in frame Install track Secure arm to track Adjustments Adjust deadstop Adjust sweep and latch... -
Page 3: Technical Specifications
ITS9613 and ITS9625 (Metal door) Technical specifications Installation Instructions 1 Technical specifications Overview Caution: sex nuts are required for attachment Know the swing of the door which is being of components to unreinforced doors and to installed prior to installation. -
Page 4: Installation Instructions
ITS9613 and ITS9625 (Metal door) Closer Installation Instructions Track Installation instructions 2.1 Installing closer in frame Fig.2 Right hand Left hand door door 5mm hex Pinion screw 3mm hex Left hand Right hand door door 45° 45° Valve 2.1.1 Place arm on closer according to hand of door. -
Page 5: Secure Arm To Track
ITS9613 and ITS9625 (Metal door) Main arm Installation Instructions 2.3 Secure arm to track Fig.4 5mm hex Screw 6mm hex key on hold open units only 2.4.1 Align hole in arm with slide shoe. 2.4.2 Attach with screw provided. -
Page 6: Adjustments
ITS9613 and ITS9625 (Metal door) Adjustments - deadstop Installation Instructions Adjustments - closing speeds Adjustments 3.1 Adjust deadstop Fig.5 3.1.1 Open door to desired opening between 80° and NOTE: The deadstop helps to prevent damage to the 120°. door and wall when the door is opened normally. The 3.1.2 Tighten deadstop block. -
Page 7: Adjust Hold Open
ITS9613 and ITS9625 (Metal door) Adjustments - hold open Installation Instructions Adjustments - spring force 3.3 Adjust hold open Fig.7 3.3.1 Place the hold open mechanism in desired 3.3.2 To adjust hold open force: position and tighten screw. •... - Page 8 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
