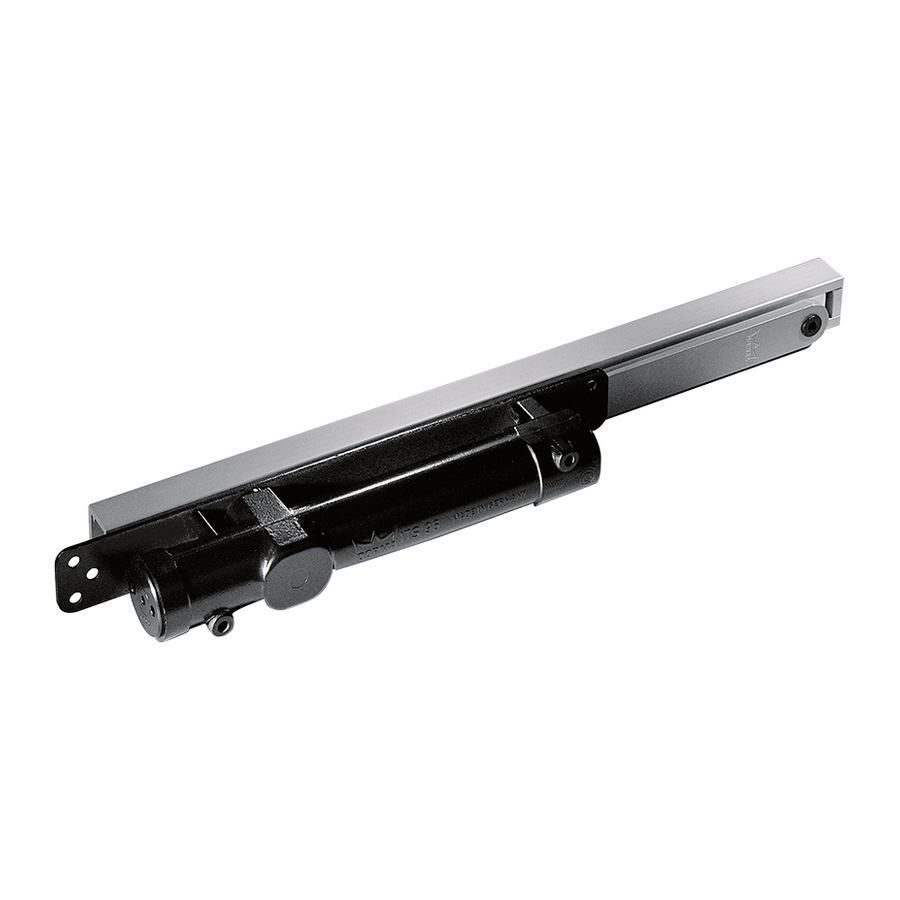

- Page 1 ITS9613 and ITS9625 Closer in door, track in frame (wood door and frame) Installation instructions 08279631 – 02-2020 | EN |...
- Page 2 ITS9613 and ITS9625 Installation Instructions Table of Contents Table of contents 1 Technical specifications Overview Tools recommended Handing the door Installation instructions Insert track components Installing main arm Install closer Secure arm to track Adjustments Adjust deadstop Adjust sweep and latch...
- Page 3 ITS9613 and ITS9625 Installation Instructions Technical specifications 1 Technical specifications Overview Caution: sex nuts are required for attachment Know the swing of the door which is being of components to unreinforced doors and to installed prior to installation. wood or plastic faced composite type fire doors, Verify closer spring size prior to installation.
- Page 4 ITS9613 and ITS9625 Installation Instructions Track Main arm Installation instructions 2.1 Insert track components Fig.2 Deadstop assembly Slide shoe 2 track brackets Deadstop (optional) block Part no. 08082820 Hold open (optional) NOTE: Arrows on hold open Hinge and slie shoe, must point away from hinge when installing in track.
- Page 5 ITS9613 and ITS9625 Installation Instructions Closer Main arm 2.3 Install closer Fig.4 2.3.1 Secure closer to door. 2.4 Secure arm to track Fig.5 Screw 5mm hex 6mm hex key on hold open units only 2.4.1 Align hole in arm with slide shoe.
- Page 6 ITS9613 and ITS9625 Installation Instructions Adjustments - deadstop Adjustments - closing speeds Adjustments 3.1 Adjust deadstop Fig.6 3.1.1 Open door to desired opening between 80° and NOTE: The deadstop helps to prevent damage to the 120°. door and wall when the door is opened normally. The 3.1.2 Tighten deadstop block.
- Page 7 ITS9613 and ITS9625 Installation Instructions Adjustments - hold open Adjustments - spring force 3.3 Adjust hold open Fig.8 3.3.1 Place the hold open mechanism in desired 3.3.2 To adjust hold open force: position and tighten screw. • To increase = turn CW •...
- Page 8 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
