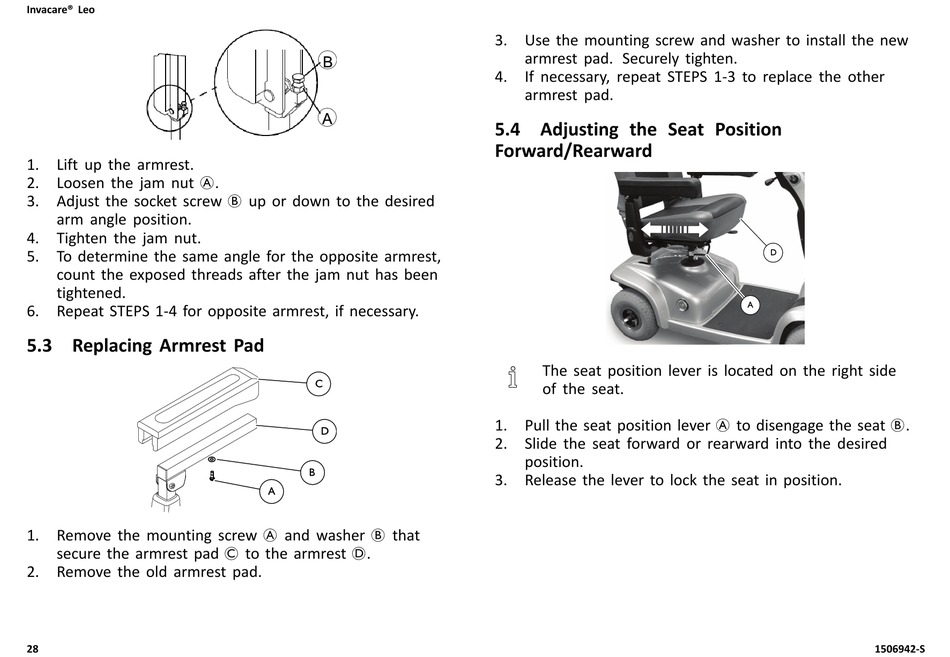

Replacing Armrest Pad; Adjusting The Seat Position Forward/Rearward - Invacare Leo User Manual

Invacare® Leo
1. Lift up the armrest.
2. Loosen the jam nut A.
3. Adjust the socket screw B up or down to the desired
arm angle position.
4. Tighten the jam nut.
5. To determine the same angle for the opposite armrest,
count the exposed threads after the jam nut has been
tightened.
6. Repeat STEPS 1-4 for opposite armrest, if necessary.

5.3 Replacing Armrest Pad

1. Remove the mounting screw A and washer B that
secure the armrest pad C to the armrest D.
2. Remove the old armrest pad.
28
A
3. Use the mounting screw and washer to install the new
armrest pad. Securely tighten.
4. If necessary, repeat STEPS 1-3 to replace the other
armrest pad.
5.4 Adjusting the Seat Position
Forward/Rearward
The seat position lever is located on the right side
of the seat.
1. Pull the seat position lever A to disengage the seat B.
2. Slide the seat forward or rearward into the desired
position.
3. Release the lever to lock the seat in position.
A
1506942-S
