Trouble Shooting - Scheppach SC2200PE Translation Of Original Instruction Manual

Batteries and rechargeable batteries do not be-
long in the household waste!
As the consumer you are required by law to
bring all batteries and rechargeable batteries,
regardless whether they contain harmful sub-
stances* or not, to a collection point run by the local
authority or to a retailer, so that they can be disposed
of in an environmentally friendly manner.
*labelled with: Cd = cadmium, Hg = mercury, Pb =
lead
• Remove the batteries from the laser before dispos-
ing of the machine and the batteries.

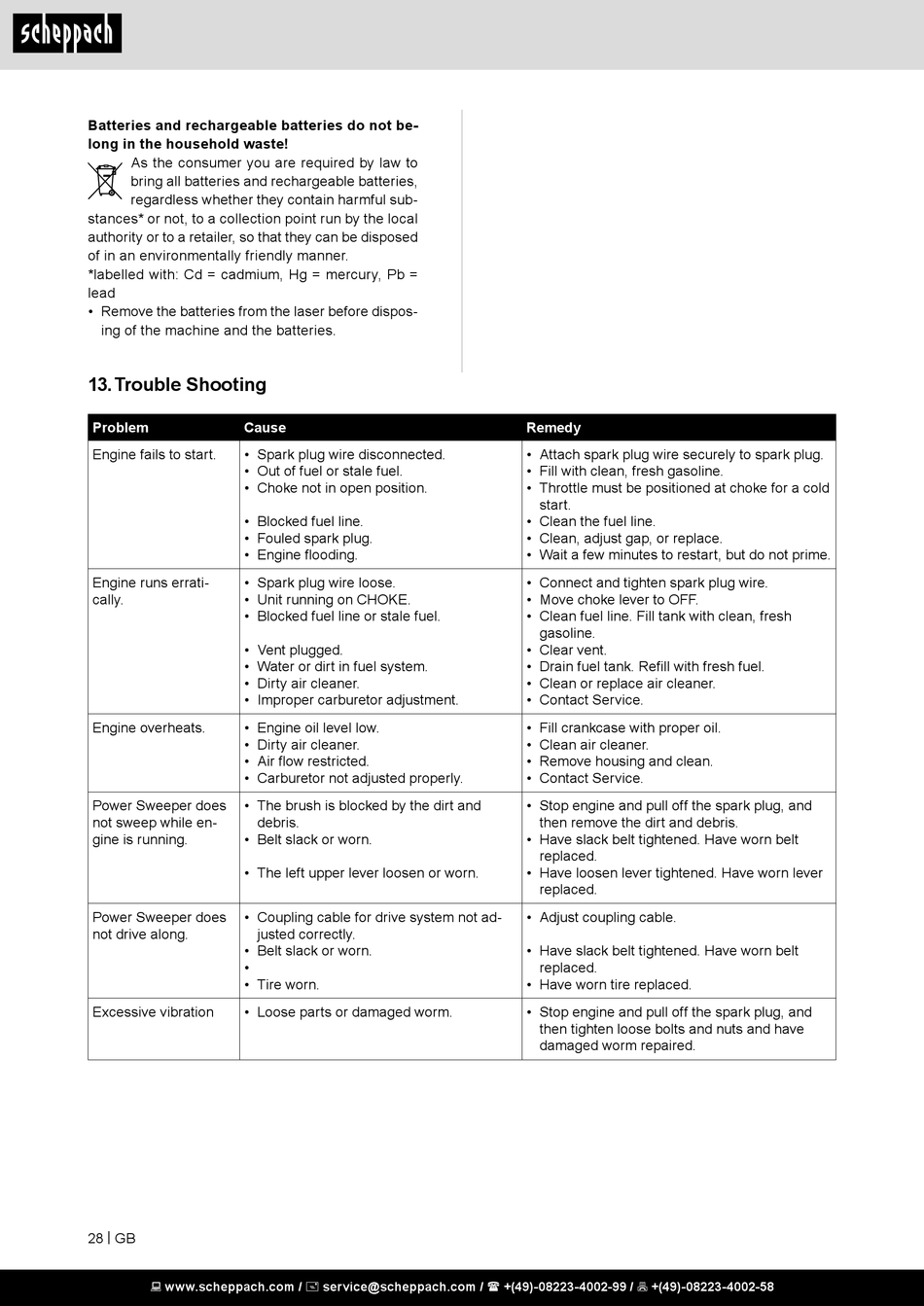

13. Trouble Shooting

Problem Cause
Engine fails to start. • Spark plug wire disconnected.
• Out of fuel or stale fuel.
• Choke not in open position.
• Blocked fuel line.
• Fouled spark plug.
• Engine flooding.
Engine runs errati- • Spark plug wire loose.
cally. • Unit running on CHOKE.
• Blocked fuel line or stale fuel.
• Vent plugged.
• Water or dirt in fuel system.
• Dirty air cleaner.
• Improper carburetor adjustment.
Engine overheats. • Engine oil level low.
• Dirty air cleaner.
• Air flow restricted.
• Carburetor not adjusted properly.
Power Sweeper does • The brush is blocked by the dirt and
not sweep while en- debris.
gine is running. • Belt slack or worn.
• The left upper lever loosen or worn.
Power Sweeper does • Coupling cable for drive system not ad-
not drive along. justed correctly.
• Belt slack or worn.
•
• Tire worn.
Excessive vibration • Loose parts or damaged worm.
28 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Remedy
• Attach spark plug wire securely to spark plug.
• Fill with clean, fresh gasoline.
• Throttle must be positioned at choke for a cold
start.
• Clean the fuel line.
• Clean, adjust gap, or replace.
• Wait a few minutes to restart, but do not prime.
• Connect and tighten spark plug wire.
• Move choke lever to OFF.
• Clean fuel line. Fill tank with clean, fresh
gasoline.
• Clear vent.
• Drain fuel tank. Refill with fresh fuel.
• Clean or replace air cleaner.
• Contact Service.
• Fill crankcase with proper oil.
• Clean air cleaner.
• Remove housing and clean.
• Contact Service.
• Stop engine and pull off the spark plug, and
then remove the dirt and debris.
• Have slack belt tightened. Have worn belt
replaced.
• Have loosen lever tightened. Have worn lever
replaced.
• Adjust coupling cable.
• Have slack belt tightened. Have worn belt
replaced.
• Have worn tire replaced.
• Stop engine and pull off the spark plug, and
then tighten loose bolts and nuts and have
damaged worm repaired.
