PROD UCT:
TOPI C:
EFFECTI VI TY:
Purpose:
On all Finn machines equipped with a Cummins QSF2.8 engine (075880), some engine settings are set at
the factory and are password protected to prevent tampering. When a new replacement control box
assembly or display is installed on one of these machines, those settings need to be re-input for proper
operation of the engine and machine. This Technical Bulletin provides the steps for this process. The
steps for the T170 and MB50 machines differ slightly from one another and are detailed separately
below.
DO NOT DEVIATE FROM THE SETTINGS PROVIDE BELOW. OPERATING THE MACHINE WITH
SETTINGS OTHER THAN THOSE APPROVED HEREIN BY FINN CORPORATION COULD RESULT IN
DAMAGE TO THE EQUIPMENT, DEATH, OR SERIOUS INJURY.
Affected Part Numbers are as follows:
008795
CONTROLLER/DISPLAY CUMMINS T4F
008799
T170 CONTROL BOX ASSEMBLY
Steps (T170)
:
1. After display or control box is installed, Turn the key switch to "ON". It is not necessary to start
the engine.

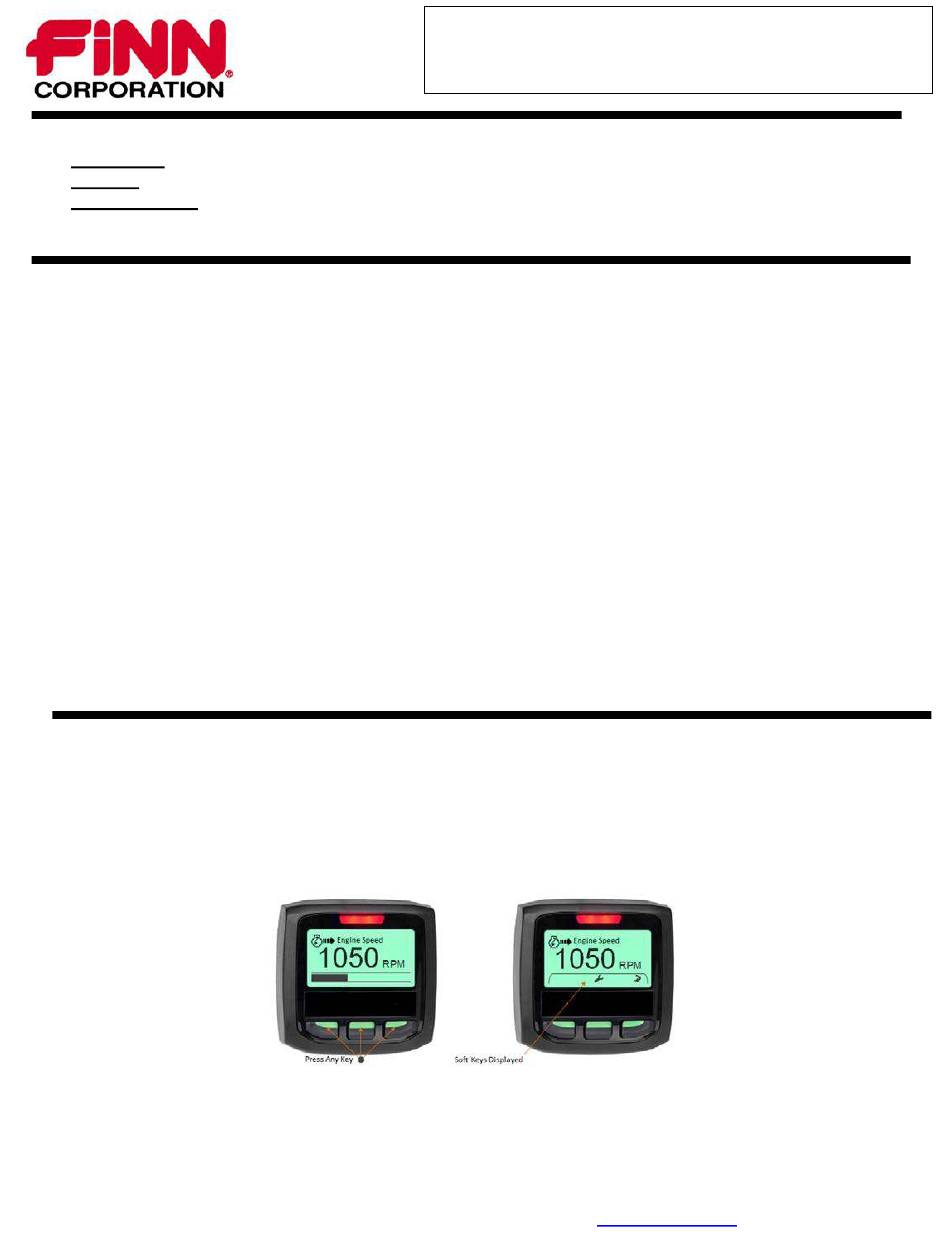

2. On the display, press any key to activate the Soft Key menu.
T1 7 0 , M B5 0 ( 5 - Se r ie s)
I nit ia l se t up of r e pla ce m e nt Cu m m in s T4 F Engin e D ispla ys
ALL M L SERI AL N UM BERS
9281 LeSaint Drive Fairfield, Ohio 45014-5457 U.S.A.
(513) 874-2818 800-543-7166 Fax (513) 874-2914
TECHNICAL BULLETIN
Date Released:
www.finncorp.com
No. 2015-0008
December 2, 2015
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Finn 5 Series
Summary of Contents for Finn 5 Series
- Page 1 ALL M L SERI AL N UM BERS Purpose: On all Finn machines equipped with a Cummins QSF2.8 engine (075880), some engine settings are set at the factory and are password protected to prevent tampering. When a new replacement control box assembly or display is installed on one of these machines, those settings need to be re-input for proper operation of the engine and machine.
- Page 2 TECHNICAL BULLETIN No. 2015-0008 Date Released: December 2, 2015 3. Press the middle Soft Key with the wrench icon above it to access the Main Menu. 4. Scroll down with the down arrow key to "Engine Settings" and press the right arrow Soft Key to enter. 5.
- Page 3 TECHNICAL BULLETIN No. 2015-0008 Date Released: December 2, 2015 9. Scroll down with the down arrow key to “Max RPM” and press the right arrow to enter. 10. Using the “-“ or “+” Soft Keys, adjust the setting to 2650 rpm. 11.
- Page 4 TECHNICAL BULLETIN No. 2015-0008 Date Released: December 2, 2015 3. On the display, press any key to activate the Soft Key menu. 4. Press the middle Soft Key with the wrench icon above it to access the Main Menu. 5. Scroll down with the down arrow key to "Engine Settings" and press the right arrow Soft Key to enter. 6.
- Page 5 TECHNICAL BULLETIN No. 2015-0008 Date Released: December 2, 2015 8. Using the “-“ or “+” Soft Keys, adjust the setting to 1000 rpm. 9. Press the left “Exit” Soft Key to return to the Engine Settings Menu. 10. Scroll down with the down arrow key to “Max RPM” and press the right arrow to enter. 11.
- Page 6 18. Press the engine stop (ENG STOP) button on the key pad one time to turn off the engine. 19. Turn the key switch to "OFF". * For any addit ional inform at ion please call t he Finn Service depart m ent at 1- 800- 543- 7166 Ext . 226 9281 LeSaint Drive Fairfield, Ohio 45014-5457 U.S.A.
