Operator Instructions and Parts Manual
T170 MB2023 Rev. H
9281 LeSaint Drive • Fairfield, Ohio 45014
Phone (513) 874-2818 • Fax (513) 874-2914
Sales: 1-800-543-7166

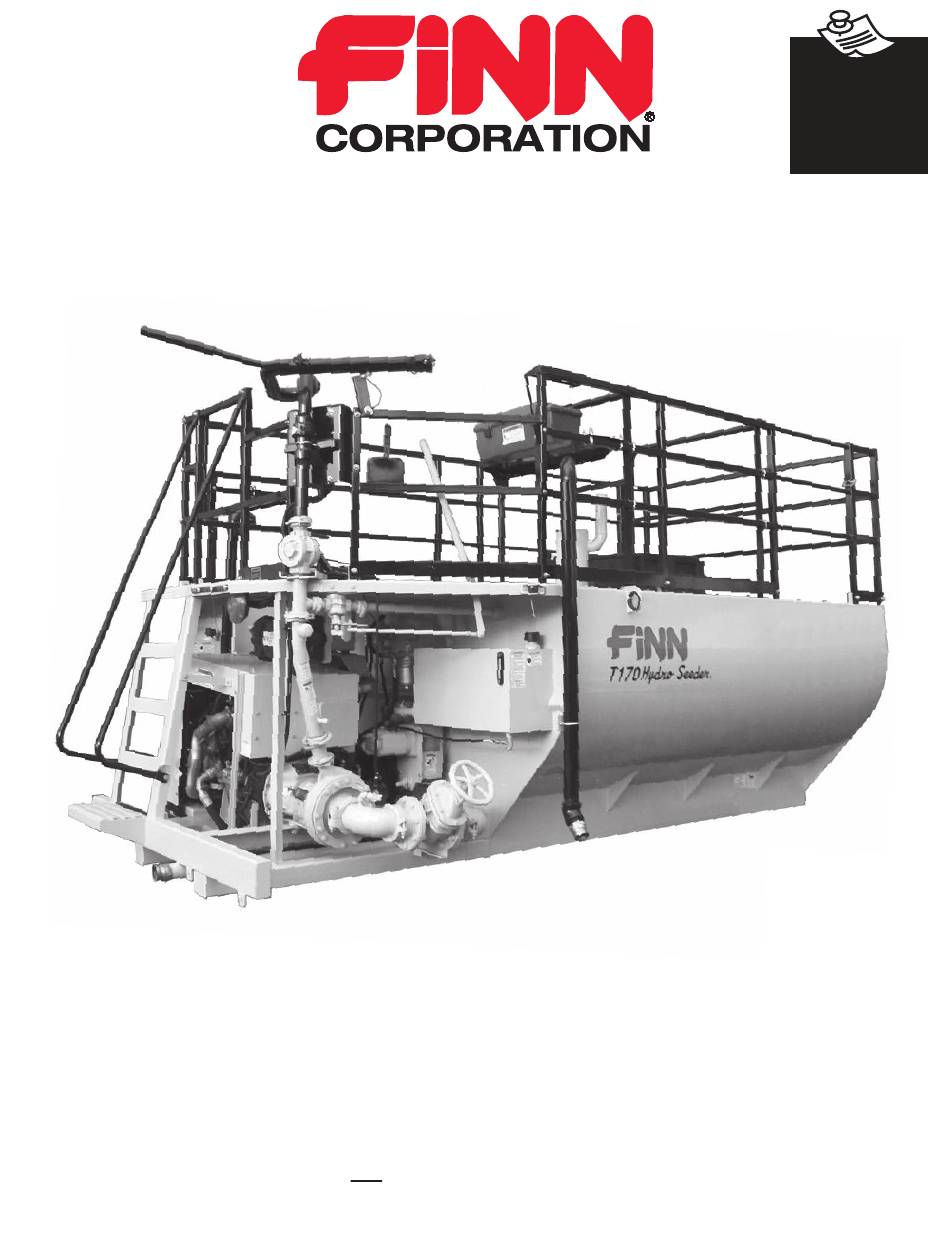

T170 HydroSeeder
Model MB
Serial No. _____________
Activate
Activate
Your Warranty
Your Warranty
By Registering
By Registering
TODAY!!!
TODAY!!!
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydroSeeder T170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Finn HydroSeeder T170

Summary of Contents for Finn HydroSeeder T170

  • Page 1 Activate Activate Your Warranty Your Warranty By Registering By Registering TODAY!!! TODAY!!! 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 ® T170 HydroSeeder Operator Instructions and Parts Manual Model MB Serial No. _____________ T170 MB2023 Rev.
  • Page 2 For Office Use Only Date Update Description Code 09/20/17 Initial release; Agitator Improvement MB2017 10/11/17 Hydraulic hose update MB2017 11/10/17 Revision A: Correct part number for battery (International AGM Battery); MB2017 Added Hose Protector and Swivel Adapter Fitting 05/21/18 Revision B: New Automatic Lubricator on Pump MB0521 10/07/19 Revision C: Added Hose Clamp to Hose Reel Assembly;...
  • Page 3 Labor hours must coincide with the published “Labor Schedule” or estimate approved by the Finn Warranty Administrator. Once work is done, a Finn Warranty Claim Form must be Þ lled out and emailed along with any related receipts or invoices to the Warranty Administrator. We ask that this is done ASAP after work is completed.

  • Page 5: Table Of Contents

    D. Installing New Seal Assembly ....... . 57 ® Continued to next page. HydroSeeder is a registered trademark of the FINN Corporation...
  • Page 6 D. Clutch Facing Plates (Item 30) Replacement ....60 ® FINN T170 HydroSeeder Technical Specifications ....62 - 63 Parts Section.

  • Page 7: Safety First

    SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. The first five pages of this manual are a summary of the main safety aspects associated with this unit.

  • Page 8: Hydroseeder ® Safety Summary Section

    ® HYDROSEEDER SAFETY SUMMARY SECTION It is important that operators of this machine are familiar with all safety aspects covered in this section and have read the entire Operator’s Manual before operating the machine. Always keep a copy of this manual with the machine. It is the responsibility of the operator of the machine to fully understand this safety summary section.
  • Page 9 3. Recirculation valve must be open and material II. MACHINE OPERATION (Continued) flowing back into the tank when using the remote valve. A closed or plugged recirculation line will 6. Operator(s) of equipment should cause extreme heat in the pump or discharge lines never ride on the machine at that will result in severe bodily injury and damage to speeds of greater than 5 mph...
  • Page 10 (29 CFR 1910.147). 9. It is recommended that only authorized, genuine FINN replacement parts be used on the machine. Provide continuous ventilation or proper 10. Do not use ether cold start fluid, breathing apparatus.
  • Page 11 COMMON SAFETY DECALS Hazard / Electrical Hearing Attention Shock Hazard Hazard Arc Flash Hazard or Electrocution Fire Hazard Explosion Hazard Hazard Body Electrostatic Fumes / Dust Entanglement Discharge Hazard Hazard Hazard Electrostatic Pinch Point / Burn Hazard Sensitive Area Entanglement Hazard Hazard Carbon...
  • Page 12 COMMON SAFETY DECALS Vision Heavy Object Skin Puncture Protection Hazard Hazard Required Hearing Hot Surface Splash / Spray Protection Hazard Hazard Required Vision, Hearing Loose Clothing Stumble and Head Entanglement Hazard Protection Hazard Required Breathing, Pinch Point / Vision, Hearing Moving Belt Trip Hazard and Head...
  • Page 13 COMMON SAFETY DECALS Do Not Ride Do Not Do Not on Moving Remove Obstruct Vehicle Guards or Block Do Not Spray Do Not Do Not Touch Power Lines Pressure Wash Additional SAFETY Decals...

  • Page 14: Operation And Maintenance

    OPERATION AND MAINTENANCE MANUAL ® FOR FINN T170 HYDROSEEDERS This manual provides instructions for the operation and maintenance of the FINN T170 ® HydroSeeder . For best results and to ensure longer life of the equipment, please follow these instructions carefully. For your safety, read the entire manual before operating this unit.

  • Page 15: General Mounting Guidelines

    ® Mounting the HydroSeeder to the truck must allow for tire clearance and frame twist. Place hard wood spacers along the length of truck rails or use FINN spring mounting kit (part number 011562) or equivalent.

  • Page 16: Attachments

    ATTACHMENTS 1. Extension hoses for reaching remote areas are available in 50 ft. (15 m), 100 ft. (30.5 m), and 200 ft. (61 m) lengths. All connections are camlock quick-operating fittings. The hose is connected to the end of the discharge boom in place of a nozzle. The nozzle is connected to the end of the hose and controlled by the person on the ground.

  • Page 17: Equipment Check

    EQUIPMENT CHECK Equipment check should be made with the engine OFF and all rotating parts stopped. Failure to comply could result in severe personal injury or death. 1. Make sure that tool kit contains all the prescribed items. See TOOL KIT list in parts section.

  • Page 18: Two-Valve Operation

    TWO-VALVE OPERATION ® This HydroSeeder is equipped with two independently operated ball valves to control DISCHARGE VALVE slurry flow. One is located in the recirculation line (SHOWN CLOSED) below the platform, and the other is located in the discharge line above the platform. The valve handles should be positioned as shown for the particular application required.

  • Page 19: Extension Hose Or Hose Reel Through Remote Port

    3. EXTENSION HOSE OR HOSE REEL THROUGH REMOTE PORT: Flow is through the open recirculation valve with no flow through the closed boom discharge valve. Flow through the hoses is started and stopped by engaging or disengaging the slurry pump clutch. The operator controls the spray volume and flow by adjusting the remote ball valve attached to the end of the hose and by adjusting the engine RPMs.

  • Page 20: Control Box

    CONTROL BOX ® The FINN T170 HydroSeeder control box is the operation point for the unit. The control box and corresponding control box icons are illustrated below. Control Box Assembly ON Symbol OFF Symbol Toggle switch flipped up to the ON Key switch is in the OFF position cutting position to activate components.

  • Page 21: Control Panel Guide

    CONTROL PANEL GUIDE NOTE: This information is to explain the function and use of the control panel when starting the unit. DO NOT start the unit at this point. Refer to STARTING PROCEDURE section for actual operation. SYSTEM POWER UP The control panel is powered from the engine battery connection from the engine harness connector.
  • Page 22 EMERGENCY STOP EMERGENCY STOP EQUIPMENT A critical safety component of this equipment is the Emergency Stop (E-Stop) switch. This device is located next to the control panel, and the button is colored red to be visible and to indicate a "stop" function based on color association. The button is made increasingly visible and distinct by the bright yellow plastic enclosure that the button sits on.
  • Page 23 SYSTEM OPERATION MENU NAVIGATION The control unit has three navigation buttons which are configured as softkeys. The system softkeys are used to navigate between displays, select menu items and change data. Pressing any of the three navigation buttons will display the softkey menu that is associated with each button.
  • Page 24 SYSTEM OPERATION (CONTINUED) MAIN MENU ACCESS To access the Main Menu, press any of the three navigation buttons. The unit will display a softkey popup window defining the available navigation possibilities. Select the Main Menu using the center softkey as shown. Exit Scroll Select...
  • Page 25 FAULT CODES(CONTINUED) After acknowledging a fault condition, the system will return to normal display operation. The controller will indicate that an active fault is present by displaying a “Check Engine” icon on the main data display. The system will also display an “Active Codes” alarm stripe at the bottom of the display.
  • Page 26 MAINTENANCE TIMER The control system provides an engine maintenance timer feature. The maintenance timer is a countdown timer and indicates the amount of engine runtime remaining until maintenance is due. The maintenance timer is configurable and resettable by the operator. If the system is powered but the engine is not running maintenance hours will not be accumulated.
  • Page 27 BACKLIGHT SETTING The LCD backlight is adjustable from 0 to 100%. To adjust the LCD backlight enter the Main Menu and navigate to the “Display Setup” menu using the “ ” softkey. When highlighted enter the Display Setup menu by selecting the “...
  • Page 28 DISPLAY MODE SETTING Two display formats are available: “Single” display and “Dual” display formats. To access the display format setting, enter the Main Menu. Navigate to the “Display Setup” menu entry using “ ” softkey. When highlighted, enter the Display Setup menu by selecting the “ ” softkey. Navigate through the “Display Setup”...
  • Page 29 DISPLAY LIST SINGLE DATA FORMAT DUAL DATA FORMAT...
  • Page 30 ABOUT MENU The About Menu indicates the software information used for programming the control unit. ENGINE SETTINGS The Engine Settings are factory-specified. This feature is password-protected to ensure the correct use of the engine in this unit.
  • Page 31 REGENERATION See Engine Owner’s Manual for information on the Diesel Particulate Filter (DPF). Particulate Matter (PM) in the engine exhaust accumulates in the Soot Filter (SF) within the DPF causing it to clog, reducing engine performance. Therefore, it is necessary to burn off the accumulated PM.
  • Page 32 RESET REGENERATION NORMAL OPERATION - DISPLAYS The engine control panel is set at the factory to allow Reset Regeneration to occur automatically. However, the operator has the option to inhibit Reset Regeneration via the control panel [Main Menu “ ” Regeneration “ ” Inhibit] if the work environment poses a risk to safe regeneration.
  • Page 33 RESET REGENERATION STANDBY DUE TO INHIBIT SWITCH During machine operation with Regeneration in the Inhibit state on the control panel, a notification and regeneration inhibited icon will display at the bottom of the screen. If the ECU determines that Reset Regeneration is required, a Auto Regeneration request will be displayed. If the operator allows the regeneration, it will begin and a notification and regeneration icon will display at the bottom of the screen.
  • Page 34 RESET REGENERATION STANDBY DUE TO LOW DOC TEMPERATURE For Reset Regeneration to begin, the DOC temperature has to be at a sufficient level. If the DOC has not reached this temperature and Reset Regeneration is required, then a notification to Increase RPM/Load and the Regeneration icon will be displayed.
  • Page 35 STATIONARY REGENERATION BY ENGINE MANAGEMENT If the ECU determines that performing the Stationary Regeneration is required, the operator will be alerted via the control panel that a Stationary Regeneration is required via a Diagnostic Trouble Code (DTC) even if Regeneration on the control panel is set to Inhibit. The operator should immediately conduct the Stationary Regeneration by performing the following operation.
  • Page 36 STATIONARY REGENERATION BY ENGINE MANAGEMENT (CONTINUED) 6. At this point, the ECU will take over control of the engine to perform the Stationary Regeneration and a notification of “Stationary Active” and the regeneration icon will be display along with a status bar (0 to 35 minutes) at the bottom of the screen. Note: When the Stationary Regeneration starts, the engine speed increases gradually to high idle speed, then the regeneration begins and may modulate engine speed throughout the process.
  • Page 37 STATIONARY REGENERATION BY ENGINE MANAGEMENT (CONTINUED) If the Stationary Regeneration is delayed by pressing the right soft key marked “NO” when the request is displayed, a 15% power reduction is immediately applied to the engine. A notification stating that “If no stationary performed within 2 hours, Power Reduction is 50%”...
  • Page 38 MANUAL STATIONARY REGENERATION - OPERATOR REQUEST The operator has the option of performing a Manual Stationary Regeneration should work conditions/schedule require. This is accomplished via the display [Main Menu “ ” Regeneration “ ” Regeneration Start]. Manual Stationary Regeneration can only be completed after the engine has accumulated 50 hours or more since its last regeneration.
  • Page 39 MANUAL STATIONARY REGENERATION - OPERATOR REQUEST (CONTINUED) 4. At this point, the ECU will take over control of the engine to perform the Stationary Regeneration and a notification of “Stationary Active” and the regeneration icon will be display along with a status bar (0 to 35 minutes) at the bottom of the screen. Note: When the Stationary Regeneration starts, the engine speed increases gradually to high idle speed, then the regeneration begins and may modulate engine speed throughout the process.
  • Page 40 RECOVERY REGENERATION If Recovery Regeneration is not performed within the allowed 10 hours, the engine will go into Limp Home Mode and a DTC will be displayed. There are only two ways out of Limp Home Mode, perform a Recovery Regeneration or perform a SF exchange at a Yanmar certified service center.
  • Page 41 RECOVERY REGENERATION (CONTINUED) 8. If the Recovery Regeneration is not successful, a notification will be displayed. Stop the engine and see a Yanmar certified service center for a Soot Filter exchange. There are 2 ways out of Limp Home: 1. Perform a Recovery Regeneration 2.

  • Page 42: Starting Procedure

    ® The following tables show loading versus coverage rates for the FINN T170 HydroSeeder Table A shows rates for one-step applications. The coverage area is determined by the fiber ®...
  • Page 43 TABLE A Using Seed, Fertilizer, and Mulch Unit Amount of Material in Tank in pounds (kilograms) Coverage Area Seed Fertilizer Mulch sq. ft. (sq. m) T170 172 (78) 200 (91) 750 (340) 21,780 (2,023) Table is based on 1,500 lbs. (680 kg) of mulch, 400 lbs. (181 kg) of fertilizer and 345 lbs. (156 kg) of seed at 8 lb (3.6 kg) / 1,000 sq.

  • Page 44: Tank Capacity Chart

    Top of Load Hatch 1,750 Gallons 6,624 Liters Bottom T170 Gallons in. (cm) From Top in. (cm) From (Liters) of Load Hatch Bottom 1,700 (6,435) 9.5 (24.1) 49.25 (125.1) 1,600 (6,057) 12 (30.5) 46.75 (118.7) 1,500 (5,678) 14.25 (36.2) 44.5 (113) 1,400 (5,300) 16.5 (42) 42.25 (107.3)

  • Page 45: Loading

    (turn off) the slurry pump clutch. G. Replace nozzle and gasket in discharge boom. 5. Continue filling tank with water. 6. Increase engine speed to full RPM. Governed speed of the engine on the FINN T170 ® HydroSeeder should be 2,500 RPM under load.
  • Page 46 LOADING (FOR WOOD FIBER MULCH, IF LIMING SEE LIMING WITH ® THE HYDROSEEDER SECTION) - CONTINUED 7. Start loading dry material, loading the lightest material first. Agitator control should be in full REVERSE for mixing. A. Seed – Cut open the seed bag open and dump contents into slurry tank. (When using inoculant, add it in the tank along with the seed.) When using quick swelling seeds, load them just prior to application.
  • Page 47 G. Replace coupler gasket in the remote valve coupler or in boom. 5. Continue filling tank with water. 6. Increase engine speed to full RPM. Governed speed of the engine on the FINN T170 ® HydroSeeder should be 2,500 RPM under load.
  • Page 48 LOADING AND MIXING BFM, FGM, SMM AND OTHER HIGHLY VISCOUS SLURRIES (CONTINUED) 7. Start loading dry material, loading the lightest materials first. Agitator control should be in full REVERSE for mixing. Seed - Cut open the seed bag and dump contents into slurry tank. (When using inoculant, add it in the tank along with the seed.) When using quick-swelling seeds, load them just prior to application.

  • Page 49: Prior To Application

    PRIOR TO APPLICATION 1. Operator(s) should familiarize themselves with the area to be seeded and develop a plan to ensure uniform application. 2. Develop a plan for communication between operator and driver of the carrying or towing vehicle to signal for start, stop, turn, etc., through the use of the signal horn. 3.

  • Page 50: Discharge Through The Boom

    APPLICATION OF SLURRY (CONTINUED) 3. Application of wood and paper fiber: Whenever possible, aim the stream towards the ground to create a surface with small pockmarks which will help get seed in contact with ground. Do not allow the stream to blast away the surface of the seed bed. 4.

  • Page 51: Extension Hose System Without Remote Valve

    APPLICATION OF SLURRY (CONTINUED) 4. When finished spraying, close the remote valve, disengage (turn off) the slurry pump clutch, and stop the engine. If using fiber mulch, retain as much water as possible in the hose by elevating the hose ends or by coupling the hose ends together. 5.

  • Page 52: Liming With The Hydroseeder

    This keeps the solids from settling in the lines, and creating a clog. This unit was designed for the application of agricultural-grade lime or FINN-HLL liquid lime only. PROCEDURE 1.

  • Page 53: Troubleshooting Your Hydroseeder

    ® LIMING WITH THE HYDROSEEDER (CONTINUED) 15. With the slurry pump clutch still engaged (turned on), re-open discharge valve to commence application. To decrease pump wear and increase discharge distance, it may, at this point be desirable to close the recirculation valve. However, the recirculation valve must be open BEFORE closing the discharge valve if the application of slurry is to be interrupted.
  • Page 54 ® TROUBLESHOOTING YOUR HYDROSEEDER (CONTINUED) Before loosening any clamps, determine if the pipe is hot. If so, let it cool before attempting to perform repair. Failure to comply WILL result in severe personal injury or death. B. If the recirculation system is not working: a) Disengage (turn off) the slurry pump clutch and shut down engine.
  • Page 55 Troubleshooting Chart Symptom Probable Cause Suggested Solutions LEAKS Tank Bearing Lack of lubrication - seal worn. Replace seal and follow lube schedule. Bolts not tightened. Tighten uniformly to 25 lb-ft (34 N•m). Pressure Pipe Clamps Rubber seal cracked, pinched, Replace, always grease seal torn or missing.
  • Page 56 Troubleshooting Chart Symptom Probable Cause Suggested Solutions VALVE Valve stuck Frozen Thaw out ice and lubricate valves; leave valves in the open position during storage. Constant plugging Foreign material in slurry. Drain and clean out tank; check during operation sump area for foreign materials. ®...

  • Page 57: Hydraulic System

    The hydraulic oil filter must be replaced on schedule with a 5 micron absolute filter (FINN part number 008703). The hydraulic system relief is factory-set at 2,650 psi (18,271 kPa).

  • Page 58: Cleaning And Maintenance

    CLEANING AND MAINTENANCE AFTER FIRST 4 TO 8 HOURS OF OPERATION Check and adjust clutch. See CLUTCH MAINTENANCE section. DAILY ® 1. Cleaning the HydroSeeder A. Fill slurry tank to center of agitator shaft with clean water. B. Move agitator lever to full speed (FORWARD and REVERSE) to flush off inside of tank top and walls.

  • Page 59: Weekly Or Every 40 Hours Of Operation

    CLEANING AND MAINTENANCE (CONTINUED) D. Lubricate the swivel on the discharge boom assembly and the swivel on the hose reel. E. If equipped with the Air Flush Option, refer to the Air Flush System Manual. F. Check the level in the hydraulic oil reservoir; maintain level with the sight gauge. WEEKLY OR EVERY 40 HOURS OF OPERATION 1.
  • Page 60 Lubrication and Adjustment Points...

  • Page 61: Lubrication And Fluids Chart

    CL Chassis Lubricant WEEKLY (40 Hours) MO Motor Oil – See Engine Manual EACH LOAD HO Hydraulic Oil, Finn Vulhydra or equivalent SEASONALLY (500 Hours) ISO grade oil (See Hydraulic System section SEE ENGINE MANUAL for ISO grade oil selection)

  • Page 62: Clump Maintenance Section

    CLUTCH/PUMP COMBINATION (CLUMP) MAINTENANCE NOTE: Refer to Figure below for all in-text callouts mentioned. Clump maintenance should be done only while engine is not running and battery cables are disconnected. Failure to comply could result in minor or moderate personal injury. Failure to comply could also result in product or property damage.

  • Page 63: Impeller Clearance

    PUMP MAINTENANCE SECTION (CONTINUED) B. IMPELLER CLEARANCE – To bring the pump back to proper tolerance, proceed as follows: 1. Loosen four bolts (1B), and push pump suction cover (1) into pump casing (5) until pump suction cover touches the pump impeller (3). Pump impeller should be in full contact with pump suction cover.

  • Page 64: Clutch Maintenance Section

    PUMP MAINTENANCE SECTION (CONTINUED) 3. Install the seal spring on the hub of pump impeller. After coating the threads on pump shaft with an anti-seize compound, install pump impeller and seat it securely. 4. Utilizing O-ring (2), reinstall suction cover using eight bolts (5B). At this time, check to see that pump runs freely.

  • Page 65: Lubrication

    CLUTCH MAINTENANCE SECTION (CONTINUED) HANDLE PRESSURE Variation in handle length directly affects the required handle pressure needed for clutch adjustment. See the table below to determine the correct handle pressure. Reference Pressure Clutch Size Lever Length at Lever 10 in. 7-5/8 in.

  • Page 66: Clutch Facing Plates (Item 30) Replacement

    CLUTCH MAINTENANCE SECTION (CONTINUED) D. CLUTCH FACING PLATES (ITEM 30) REPLACEMENT A common indication that the facing's friction surface is worn out is that the adjusting ring cannot be turned any tighter. To replace the facing plates, remove the slurry clutch pump from the engine as described above and proceed as follows: 1.
  • Page 67 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 68 16 ft. 8 in. (508 cm) 7 ft. 9 in. (236 cm) 8 ft. 10 in. (269 cm)

  • Page 69: Finn T170 Hydroseeder Technical Specifications

    ® FINN T170 HYDROSEEDER TECHNICAL SPECIFICATIONS POWER Cummins QSF 2.8 L Diesel, Tier 4F, 65 hp (48kW) with Vibration isolation. Controls include: over-center clutch, agitator direction and speed, discharge boom and recirculation control valves, engine throttle, safety horn and engine start/stop...
  • Page 70 NOTES...

  • Page 71: Parts Section

    ® T170 HydroSeeder Parts Section Model MB WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 72 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 73: Structure And Railing

    STRUCTURE AND RAILING Ref. Part Number Description No. Req’d 013149 Swing Gate 013122 Gate Spring F330-0108 Main Tank Top F170-0015 Left Side Toe Rail 008639 Left Side Guard Rail F330-0120 Front Tank Top Support 012703 Slide Gate 012737 Front Side Rail F280-0005 Front Side Toe Rail F330-0109...
  • Page 74 STRUCTURE AND RAILING Ref. Part Number Description No. Req’d 012750 Fill Stack Extension 008470 Fill Port Plug 005700 Nylon Lanyard 012515 1-1/4 in. Pipe Plug 012296 Closed "S"-Hook 012829 Fill Port 085148 2-1/2 in. U-Bolt FW71225 Snapper Pin 012693 Poly Fuel Tank A2518-001 Drain Valve A2514-001...
  • Page 75 STRUCTURE AND RAILING FUEL TANK POLY HATCH DETAIL DETAIL WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 76 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 77: Discharge Boom Assembly

    DISCHARGE BOOM ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  012763 Lower Boom Discharge Weldment  012283 2-1/2 in. Straight Swivel  012762 Upper Boom Discharge Weldment 013159 Boom Discharge Handle Weldment  012726-01 Boom Stand Pipe  010544 2-1/2 in.
  • Page 78 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 79: Engine

    ENGINE Ref. Part Number Description No. Req’d 075880 QSF 2.8 Engine ------ Engine ECM (Supplied with Engine) 008768 ECM Mounting Isolators 008736 Rear Engine Foot 008737 Front Left Engine Foot 008762 Hydraulic Pump 008758 Upper Radiator Support 023438 Radiator Isolator 008757 Upper Radiator Support Bracket CUM50000600...
  • Page 80 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 81 ENGINE Ref. Part Number Description No. Req’d 008754 Radiator Fan 008755 Radiator Fan Spacer  M10 x 110 Gr. 10.9 Hex Head Bolts 008763 Radiator 075205 Radiator Isolators 055505 Snubbing Washer 008809 Engine Oil Canister Element 008808 120 V Alternator 008830 QSF 2.8 Fan Belt 008854...
  • Page 82 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 83: Engine Sheet Metal

    ENGINE SHEET METAL Ref. Part Number Description No. Req’d 008664 Rear Sheetmetal Mount Leg (Long) 008784 Sheetmetal Support Bracket 008740 Rear Sheetmetal Cover 008742 Top Sheetmetal Cover 055669 Door Positioning Hinge F260-0006-03 Hinge Spacer F260-0006-02 Radiator Cap Cover 008745 Rear Sheetmetal Mount Leg (Short) F170-0026 Radiator Cover Mount Bracket F170-0020...
  • Page 84 17 18 15 16 Primary Filter Element Secondary Filter Element WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 85: Air Intake And Exhaust Systems

    AIR INTAKE AND EXHAUST SYSTEM Ref. Part Number Description No. Req’d 012991 Rain Cap Assembly 023471 Exhaust Elbow 055501 Muffler Clamp 008752 Exhaust Pipe Extension 008759 DOC Muffler 008796 Muffler Mounting Bracket 008829 Muffler Mounting Bracket Band 008798 DOC Mounting Plate 008797 DOC Hanger 008804...
  • Page 86 SECTION A-A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 87: Control Station And Control Box, No Remote

    CONTROL STATION AND CONTROL BOX, NO REMOTE Ref. No. Ref. Part Number Description No. Req’d F170-0029 Guard Rail Control Box Mounting Bracket 008800 Control Box Mounting Plate 012970 Emergency Stop (E-stop) with Enclosure 008801 Control Box Cover 008802 Control Box Cover Plexiglass 055669 Door Positioning Hinge ...
  • Page 88 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 89: Optional Control Box With Remote

    OPTIONAL CONTROL BOX WITH REMOTE Ref. No. Ref. Part Number Description No. Req’d  031507 Rocker Switch  020886 Horn Button  031506 Key Switch 031506-01 Keys 2 per  A7881-001 Engine Controller / Display  A7883-001 Control Box  A7884-001 Control Box Decal ...
  • Page 90 OPTIONAL GROUND LEVEL CONTROL BOX, NO REMOTE Ref. No. Ref. Part Number Description No. Req’d  008867 Ground Level Control Box Enclosure, Modified  031507 Rocker Switch  031506 Ignition Switch, 3 Position with Key  008863 Ground Level Control Panel Decal ...
  • Page 91 OPTIONAL GROUND LEVEL CONTROL BOX WITH REMOTE Ref. No. Ref. Part Number Description No. Req’d  A5330-001 Ground Level Control Box Enclosure, Modified  031506 Ignition Switch, 3 Position with Key  366164 Emergency Stop (E-Stop) Kit, 1 Yellow NC Block ...
  • Page 92 SECTION A-A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 93: Engine Relay Box

    ENGINE RELAY BOX Ref. No. Ref. Part Number Description No. Req’d  075888-01 Relay Box Enclosure  075892 Relay Box Back Panel  008838 Fuse Box  008839 Mega 250A Fuse  008840 Ametek Switch  075893 Starter Relay  080303 Cord Grip ...
  • Page 94 REFERENCE CLUMP ASSEMBLY WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 95: Clump, Piping And Discharge Assembly

    CLUMP, PIPING AND DISCHARGE ASSEMBLY Ref. Part Number Description No. Req’d 011736 5 in. Victaulic Pipe Clamp 011919 5 in. Victaulic Pipe Clamp Seal 1 per 008259 5 in. 90º Pipe Elbow 011882 2-1/2 in. Toe-Goe Pipe 012722 Suction Valve Flange Weldment 012058 5 in.
  • Page 96 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 97: Clutch / Pump (Clump) Assembly

    CLUTCH / PUMP (CLUMP) ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  005146 Pump Suction Cover  005150 O-ring  005145 Pump Impeller  006443 Mechanical Shaft Seal  005144 Pump Casing  006444 Grease Retainer  005446 Flange Pilot Bearing ...
  • Page 98 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 99 CLUTCH / PUMP (CLUMP) ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d 37  012783-02 Lock Washer 38  012783-01 Drive Shaft Nut 39  190123-24 Clutch Key 40  100024 Adjusting Lock  A6984-001 Automatic Pressure Lubricator NOT SHOWN ...
  • Page 100 DETAIL A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 101: Controls

    CONTROLS Ref. Part Number Description No. Req’d 008672 Agitator Control Handle 008673 Agitator Handle Pivot 022202 Black Handle Grip 085148 2-1/2 in. U-Bolt 005161 Rubber Strap with "S" Hooks 004996 Pipe Plug 012777 Recirculation Handle F330-0102 Agitator Control Box 012780-05 Recirculation Valve Rod Weldment 006737 Ball Joint...
  • Page 102 BEARING ASSEMBLY 2 in. AGITATOR NOTE: BEARING ASSEMBLY (012529) SHAFT THROUGH BACK SIDE APPLY (1) SOLID, CONTINUOUS BEAD OF SILICONE ADHESIVE AROUND OUTER EDGE ON THE INSIDE FACE OF THE CLAMPING RING BEFORE INSTALLATION. OUTSIDE OF TANK WALL NOTE: TO TIGHTEN, TURN NUT - NOT THE BOLT. TORQUE TO 25 lb-ft (34 N•m).

  • Page 103: Agitator And Bearing Assemblies

    AGITATOR AND BEARING ASSEMBLIES Ref. No. Ref. Part Number Description No. Req’d  012527 Agitator Clamping Ring 1 per  012528 Agitator Shaft Seal 2 per  012525 Agitator Bearing Clamping Ring 1 per  012452 Flangette 1 per  012450 Bearing 1 per...
  • Page 104 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 105: Hydraulic System

    HYDRAULIC SYSTEM Ref. No. Ref. Part Number Description No. Req’d  008545 1 in. FNPT - #20 MSAE Adapter  008845 1-1/4 in. MNPT - #20 MJIC 90° Elbow Adapter  008606 #16 MSAE - #8 MJIC Adapter  008660 1/2 in.
  • Page 106 HYDRAULIC SYSTEM Ref. No. Ref. Part Number Description No. Req’d 080329 Hydraulic Level Sight Gauge 160236 1/2 in. Pipe Plug 160520 1-1/4 in. Nipple x 4-1/2 in. Long  085157 #12 MSAE - #12 MJIC 45° Elbow Adapter 085276 Dump Valve 085276-01 Dump Valve Coil 085276-02...

  • Page 107: Hydraulic Agitator Drive

    HYDRAULIC AGITATOR DRIVE Ref. Part Number Description No. Req’d 012333 Hydraulic Motor 012354 Hydraulic Motor Mount F330-0029 Agitator Coupling Guard 012522-02 Rubber Bushing 012522-04 Torque Arm Insert 011780 Rigid Coupling 003055B Motor Bushing 055103 Agitator Bushing 190127-40 1/2 in. Square Key x 2-1/2 in. Long 012625 2 in.

  • Page 108: Discharge Hose Extensions

    DISCHARGE HOSE EXTENSIONS BOOM TAKE OFF SYSTEM Part Number Description No. Req’d 007930-02 Boom Discharge Extension Hose Assembly As Ordered 008315-05 1-1/2 in. x 50 ft. Extension Hose with Nipples 002191 2-1/2 in. Male Brass Adapter 160768 2-1/2 x 1-1/2 in. Reducer Bushing 010544 2-1/2 in.
  • Page 109 DISCHARGE HOSE EXTENSIONS HOSE REEL SYSTEM Part Number Description No. Req’d 061359 1-1/4 in. Hose Reel Discharge Hose As Ordered 004832-20 1-1/4 in. x 200 ft. Rubber Hose with Nipples 002158 1-1/2 in. Female Coupler 006515 1-1/2 in. Coupler Gasket 160756 1-1/2 x 1-1/4 in.
  • Page 110 DETAIL A DETAIL A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 111: Hose Reel Assembly

    HOSE REEL ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  080302 Flanged Riser  080302G Hose Reel Riser Gasket  008144 Hose Reel Gear  008200 Hose Reel Chain (69 in.)  008433 Pinlock with Brackets Assembly  008313 Idle Side Bearing ...
  • Page 112 DETAIL A DETAIL A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 113 HOSE REEL ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d 008112 Brake Spring (Part of Hose Reel) 008109 Brake Adjustment Screw (Part of Hose Reel) A4839-001 1-1/4 in. Hose Clamp (1-1/4 in. Hose Option) A4844-001 1-1/2 in. Hose Clamp (1-1/2 in. Hose Option) NOT SHOWN 004832-20 1-1/4 in.
  • Page 114 To Dump Valve To Brand Valve WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 115: Hose Reel Hydraulic System

    HOSE REEL HYDRAULIC SYSTEM Ref. No. Ref. Part Number Description No. Req’d  008693-01 1/2 in. Hydraulic Hose x 179 in.  008693-02 1/4 in. Hydraulic Hose x 23 in.  008693-03 1/2 in. Hydraulic Hose x 134 in.  008693-04 1/4 in.

  • Page 116: Recommended Spare Parts And Repair Kits

    RECOMMENDED SPARE PARTS AND REPAIR KITS RECOMMENDED SPARE PARTS Part Number Description No. Req’d A2401-001 Automatic Pressure Lubricator Grease, 14 oz. (414 mL) 011919 Suction Pipe Seal - 5 in. 008472 Suction Pipe Seal - 5 in. x 4 in. Reducer 002820 Discharge Pipe Seal - 2-1/2 in.

  • Page 117: Tool Kit

    Automatic Pressure Lubricator Grease, 14 oz. (414 mL) 020365 Multi-Purpose Grease Cartridge 007469 Lube Sticks For Discharge and Recirculation Valves (Box of 24) 012681A Touch-Up Paint (FINN Beige - Aerosol) 012305 Remove Aerosol Can Adhesive Label Engine Operator's Manual ® HydroSeeder Operator Instructions and Parts Manual...
  • Page 118 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...
  • Page 119 DECALS Ref. No. Ref. Part Number Description No. Req’d 023174 "FINN" Decal ® 011595 "HydroSeeder " Decal  --------- "WARNING! Fall Hazard" Decal  --------- "1,500 Gallon" Decal  --------- "1,000 Gallon" Decal  --------- "800 Gallon" Decal  --------- "500 Gallon"...
  • Page 120 46, 36, 31, 47 P/N 41451 START P/N 41436 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE T170 MB2023 Rev. H...

  • Page 121: Decals

    DECALS Ref. No. Ref. Part Number Description No. Req’d  --------- Vision / Hearing Damage Hazard Decal  --------- "RECIRCULATION VALVE - Close/Open" Decal  --------- "AGITATOR OPERATION" Decal  --------- "VALVE - Open/Closed" (Foot Pedal) Decal  --------- "DANGER! Electrocution Hazard..." Decal ...
