Service Manual
VSPP Steering unit

VSPP version overview

VSPP versions

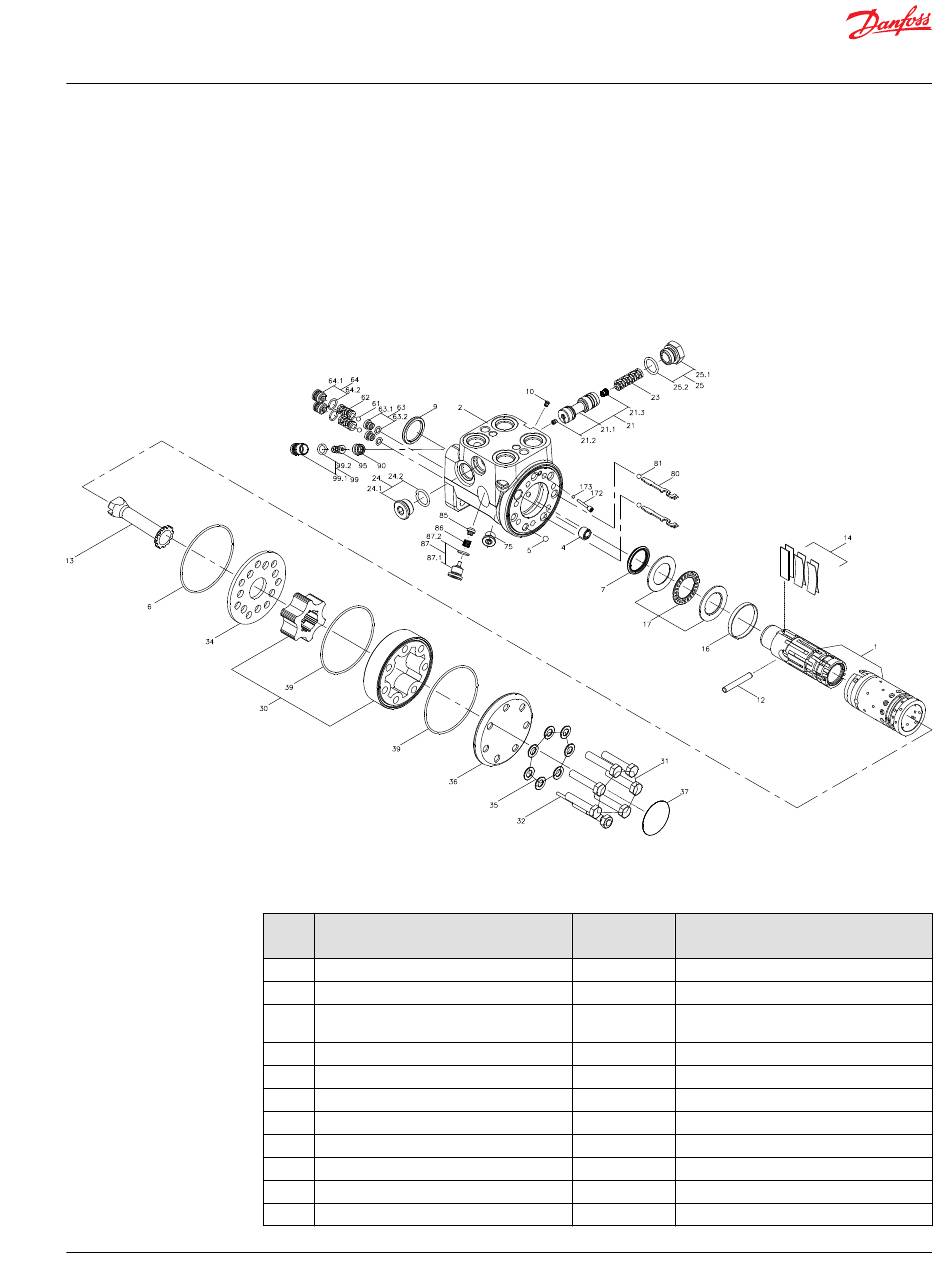

Exploded view, VSPP

VSPP exploded view

Parts list, VSPP

© Danfoss | November 2019
VSPP is only available as "Load Sensing dynamic, non-reaction" version.
The exploded view is universal. Some variants are without shock and suction valves.
Item Description
1 Spool/sleeve set
2 Housing
4 Threaded bushing (Screw below surface of
housing)
5 Ball Ø6.0 mm
6 O-ring Ø79.4 x Ø2.0 mm
7 Shaft seal
9 Dust seal ring
10 Orifice, LS
12 Cross pin
13 Cardan shaft
14 Set of springs
Tightening torque
Number per
unit
1 -
1 -
1 -
1 -
1 -
1 -
1 -
1 1 ± 0.1 N•m [8.9 ± 0.9 lbf•in]
1 -
1 -
1 -
AX319758618681en-000101 | 5
