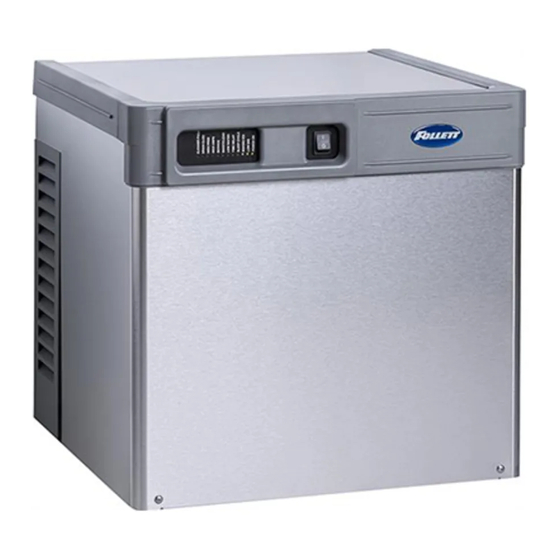

Follett Horizon Elite Chewblet 1010 Series Installation Instructions Manual

For ice storage bins
Hide thumbs Also See for Horizon Elite Chewblet 1010 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
HCD/HMD/HCF/HMF1010RBS, HCD/HMD/HCF/HMF1410RBS
HCD/HMD1010NBS, HCD/HMD1410NBS
(See model number configurator on page 2 for details.)
After Serial Number L82638
Horizon Elite
Ice Machine Models with RIDE
™
Installation Instructions for Ice Storage Bins
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Technology
™
remote condensing
01113257R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon Elite Chewblet 1010 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Follett Horizon Elite Chewblet 1010 Series

Summary of Contents for Follett Horizon Elite Chewblet 1010 Series

  • Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ™ Installation Instructions for Ice Storage Bins HCD/HMD/HCF/HMF1010RBS, HCD/HMD/HCF/HMF1410RBS HCD/HMD1010NBS, HCD/HMD1410NBS (See model number configurator on page 2 for details.) After Serial Number L82638 remote condensing 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
  • Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
  • Page 3 Read and complete the following 8 installation steps Unpack Site preparation Bin preparation Docking assembly Ice transport tube External connection Internal connection Front cover BIN • RIDE Technology remote condensing...
  • Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ BIN • RIDE Technology...

  • Page 5: Site Preparation

    • 10–70 psi (69–483 kpa) • 45–90 F (7–32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drain ➌...

  • Page 6: Before Proceeding

    Bin preparation Prepare the bin. Bin top preparation Bin top preparation 3" ∅ (76,2mm) • Remove protective tape from • Locate center of bin top gaskets • Cut 3" (77,2 mm) diameter hole in bin top BEFORE PROCEEDING Bin top preparation —...
  • Page 7 Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting.
  • Page 8 Transport tube Install the ice transport tube. Ice transport tube installation ➍ ➏ ➐ ➋ Hot Water 160 F (71 C) ➑ ➎ ➒ ➊ ➓ 1/4" ➌ Ice transport tube tips • Insulate entire length of ice transport tube ➊...

  • Page 9: External Connections

    External connections Connect utilities to docking assembly. Refrigerant lines Water and drain ➊ ➊ ➋ ➌ Minimum 8" ➏ radius 2 ft. x 1" OD silicone tubing • Braze supplied quick-connect lines onto stub-ins ➊ 3/4" barb x 3/4" FPT ➍...

  • Page 10: Internal Connections

    Internal connections Connect docking assembly to ice machine. Ice transport tube installation Water line ➋ ➊ ➋ ➊ • Slide ice machine into docking assembly • Insert potable water line into valve ➊ ensuring that drain tube is fully seated on barbed drain fitting ➊...
  • Page 11 Power cord TDS switch HIGH CLEAN • Position plate into opening and secure • Set the TDS switch on the electrical box: with supplied screw HIGH: for extended service life LOW: for low-scale water BIN • RIDE Technology remote condensing...

  • Page 12: Front Cover

    Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ ➊ • Slide ice machine cover over machine • Insert and tighten two screws through • Complete installation of condensing unit cover and into docking assembly ➋...
  • Page 13 Long tube run recommendations max. 2 ft (.6m) 1/4" • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps ➋...
  • Page 14 BIN • RIDE Technology remote condensing...
  • Page 15 BIN • RIDE Technology remote condensing...
  • Page 16 Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 01113257R02 www.follettice.com...
