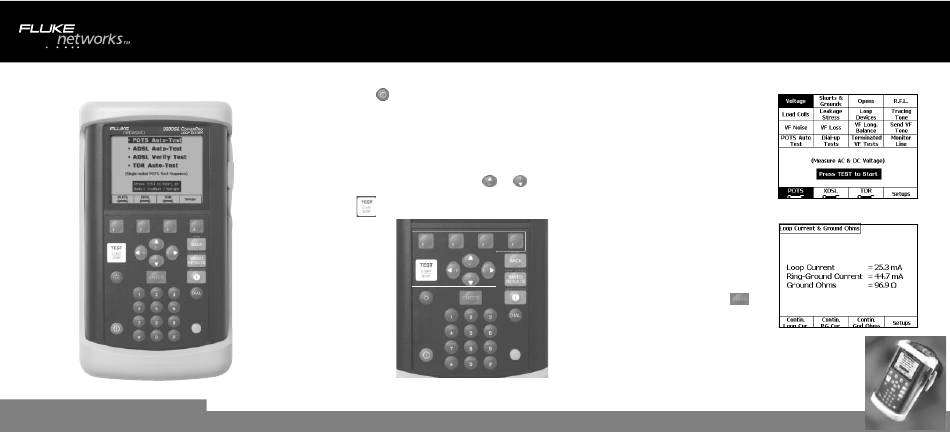

Quick Start Guide
CopperPro 990 Loop Tester
Powering up your CopperPro.
The green key in the lower right hand corner of the key pad functions as both an
Off and On button. Press and hold briefly to turn the set on. A screen showing infor-
mation about the 990 hardware and software will be displayed briefly. The main menu
will appear. To turn the set off, press the key again.
Running the Auto Tests.
CopperPro's main screen displays up to four AutoTests, depending on the model and
options you have. To highlight a test, use the and
up for the test, highlight it, and select the Setups menu option. To run the test, press
the key.
CopperPro's primary navigation keys
Running individual tests like voltage
or resistance.
Individual tests are available in the
three Toolboxes displayed at the
bottom of the display. Press the key
beneath the menu choice to enter a
toolbox. Then use the arrow keys to
select the test you want to run. To
alter the setups for the test, first
highlight the test, then select the
keys. To adjust the set-
Setups menu option.
Measuring loop
current.
Connect the black (tip), red (ring)
and green (ground) leads to an active
pair.
Select the POTS Toolbox and highlight
Dial-up Tests and press
Loop Cur. & Gnd Ω. CopperPro will go
off-hook, measure loop current and
ground resistance between the central
office and the point of testing.
N E T W O R K S U P E R V I S I O N
. Select
