Stark 53501 Owner's Manual And Safety Instructions

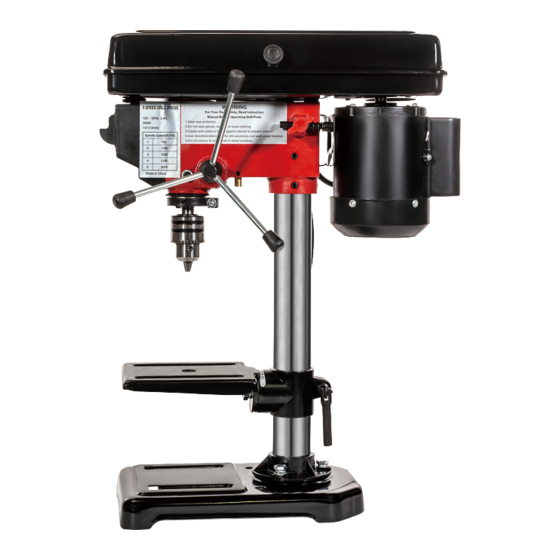

5 speed drill press with laser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5 SPEED DRILL PRESS WITH LASER
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
ITEM: 53501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53501 and is the answer not in the manual?

Questions and answers

Related Manuals for Stark 53501

Summary of Contents for Stark 53501

  • Page 1 5 SPEED DRILL PRESS WITH LASER ITEM: 53501 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3 IMPORTANT SAFETY INFORMATION USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating.
  • Page 4 IMPORTANT SAFETY INFORMATION Use Only Accessories Designed For This Drill Press To Reduce The Risk of Serious Injury From Thrown Broken Parts Or Work Pieces When cutting large diameter holes: - Clamp the workpiece firmly to the table. Otherwise the cutting may grab and spin it at high speed. - Use only one piece, cup-type, hole cutters.
  • Page 5 IMPORTANT SAFETY INFORMATION To prevent the workpiece from being torn from your hands, spinning of the tool, shattering the tool or being thrown, always properly support your work so it won’t shift or bind on the tool: - ALWAYS position backup material (use beneath the workpiece) to contact the left side of the column. - Whenever possible, position the workpiece to contact the left side of the column –...

  • Page 6: Electrical Safety Information

    ELECTRICAL SAFETY INFORMATION NOTE: The adapter illustrated is for use only if you already have a properly grounded 2-prong outlet. NOTE: In Canada the use of a temporary adapter is not permitted by the Canadian Electrical Code WIRE SIZES NOTE: Make sure the proper extension cord is used and is in good condition.

  • Page 7: Parts Diagram

    PARTS DIAGRAM...

  • Page 8: Parts List

    PARTS LIST...

  • Page 9: Tools Needed For Assembly

    ASSEMBLY TOOLS NEEDED FOR ASSEMBLY Adjustable Wrench, hammer, block of wood, screwdriver BASE TO COLUMN 1. Place Column (1) on the Base (2) and align holes in the Column with the holes in the base. 2. Attach using a Bolt, Spring Washer, and Washer (2) in each hole through the Column and into the Base. TABLE TO COLUMN 1.

  • Page 10: Battery Assembly

    ASSEMBLY INSTALL THE CHUCK 1. Inspect and clean the taper hole in the chuck and the spindle. Remove all grease, coatings and particles from the chuck and spindle surfaces with a clean cloth. 2. Open the chuck jaws by turning the chuck barrel clockwise by hand.

  • Page 11: Assembly And Adjustments

    ASSEMBLY and ADJUSTMENTS INSTALL THE BELT 1. Open the pulley and belt cover (1). 2. Loosen the belt tension lock knob (2). 3. Slide the motor (3) as close to the drill press head as possible. 4. Place a belt (4) on the motor pulley (5) and the spindle pulley (6) in the proper position for the desired speed.

  • Page 12: Operation And Maintenance

    OPERATION and MAINTENANCE COIL SPRING ADJUSTMENT 1. Raise the spindle to the top position. 2. Move both depth scale nuts (1) to the lowest position and tighten to prevent the quill from dropping down. 3. Place the screwdriver in the notch (2) of the spring housing. 4. Firmly hold the screwdriver in place to prevent the spring and housing from moving.

  • Page 13: Troubleshooting

    TROUBLESHOOTING...

  • Page 14: Warranty

    WARRANTY PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
