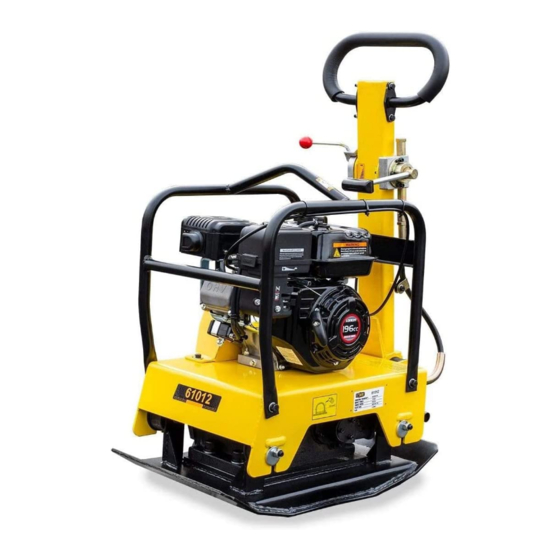

  • Page 1 Reversible Plate Compactor 61012 Owner’s Manual Questions? Problems? Please call our customer support: (909) 628 4900 Mon-Fri 9am to 3pm PST WARNING To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating，changing accessories，or performing maintenance...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION Introduction………………………………………………………2 Thank you for your selection of the power equipment. Applications………………………………………………………2 We have taken care in the design, manufacture and testing of Structure …………………………………………………………2 this product. Should service or spare parts be required， Functions and controls …………………………………… ……3 Prompl and efficient service is available from our branches.

  • Page 3: Functions And Controls

    Power Transfer Before operating this equipment，an individual Air-cooled Single cylinder Engine is amounted as power should read this manual．Whenever possible,he source and Centrifugal Clutch is fixed on engine output should be shown how to operate the unit by an shaft．Petrol Engine(2 cycle，4 cycle)and Diesel Gasoline experienced operator．Inexperience is hazardous Engine can be mounted as option．Centrifugal Clutch in operating any machine or attachment．Trial and...

  • Page 4: Hazards And Risks

    HAZARDS AND RISKS ENSURE that the fuel tank cap is securely fitted after refueling． NEVER allow any person to operate the machine without ! CHEMICAL HAZARDS adequate instruction． DO NOT operate or refuel a petrol or diesel motor in a confined ENSURE all operators read ，...
  • Page 5 Start the motor using the recoil starter．(If the motor is fitted with an on/off switch this must first be turned to ON before starting.) For more information on starting and correct operating procedures of the motor,refer to the motor operation manual sup- plied with the unit．...
  • Page 6 2-4．Stop engine without fail before replenishing fuel tank. Never replenish gasoline while the engine is running or remains hot otherwise spilled or evaporated fuel is liable to catch fire from engine sparks or muffler heat． Wipe off spilled fuel,if any，before starting engine． Be careful not to Spill fuel．...

  • Page 7: Operation

    ! CAUTION Do not pull the rope all the way and do not take your hand off the pulled knob but slowly return it original position． 3-8．After starting up the engine，be sure to perform a warm up the engine，be sure to perform a warm up run for 2 to 3 minutes．This should be performed without fail,particularly during winter season．...
  • Page 8 6．Shutdown To stop the engine in an emergency，turn the stop switch to the OFF position． Under normal conditions, use the following procedure： 6-1．Set the speed control lever at the low speed position and allow the engine to run at low speed for 2 or 3 minutes before stopping．...

  • Page 9: Care And Preventive Maintenance

    B.Remove spark plug，clean and adjust the spark plug gap to 0.6-0.7mm (0.02-0.03 in.). Fig-15 C.drain the motor oil of the engine and replace with new specified oil． Fig-16 ! NOTE：When the engine is new，the first oil change must be made after 20 hours of operation and replenish the oil tank before operating．...
  • Page 10 ! CAUTION ! CAUTION Inspection and other services should always be carried out on Fuel piping and connections should be replaced every 2 years. hard and level ground with the engine shutdown． TABLE2. ENGINE CHECK Inspection and Maintenance Service Tables． 1．...

  • Page 11: Specifications

    SPECIFICATIONS Model 61012 Engine Air-cooled, 4-cycle, single cylinder Engine type Petrol, Loncin 200F Power kw(hp) 4.7(6.5) Weight kg(lbs) 180(287) Frequency vpm 4600 Centrifugal Force kn Compaction Depth cm(in) 50(19) Travel Speed cm/s(in/s) 20(8) Efficiency m2/hr (ft2/hr) 450(4844) Plate Size cm(in)

  • Page 12: Replacement Parts List

    REPLACEMENT PARTS LIST Major components and vibrator assembly parts list as followings.
  • Page 13 ·Major components list ITEM N0． PART N0． DESCRIPTl0N QUANTITY 300001 Hexagonal bolt M8x25 300002 Washer，lock M8 300003 Washer，plat M8 300004 Clutch assembly 300005 V-belt 300006 Engine 300007 Nut M10 300008 Washer，lock M10 300009 Washer，plat M10 300010 Guard hook 300011 Throttle lever 300012 Grip 300013...
  • Page 14 ·Major components list...
  • Page 15 ITEM NO． PART NO． DESCRIPTION QUANTITY 300001 Belt cover(blow) 300002 Screw M8x25 300003 Washer,lock M8 300004 Washer,plat 8.5x32x2.5 300005 Pulley,driven 300006 Bearing cover/pulley 300007 Packing 300008 oil seal 28x50x10 300009 Case cover 300010 Stop dowel 8x35 300011 Packing 300012 Bearing 42206 300013 Stop ring 42 300014...
  • Page 16 300050 Spring 300051 Bearing 16008 300052 Plug，oi1 M12x1．25x10...
