Video access control terminal work as wiegand reader

Advertisement

Title:
DS-K1T501 work as wiegand reader
Product:
DS-K1T501

Device Info:

K1T501SF firmware version: V1.1.0_build180202
K2604 firmware version: V2.0.4_build180913

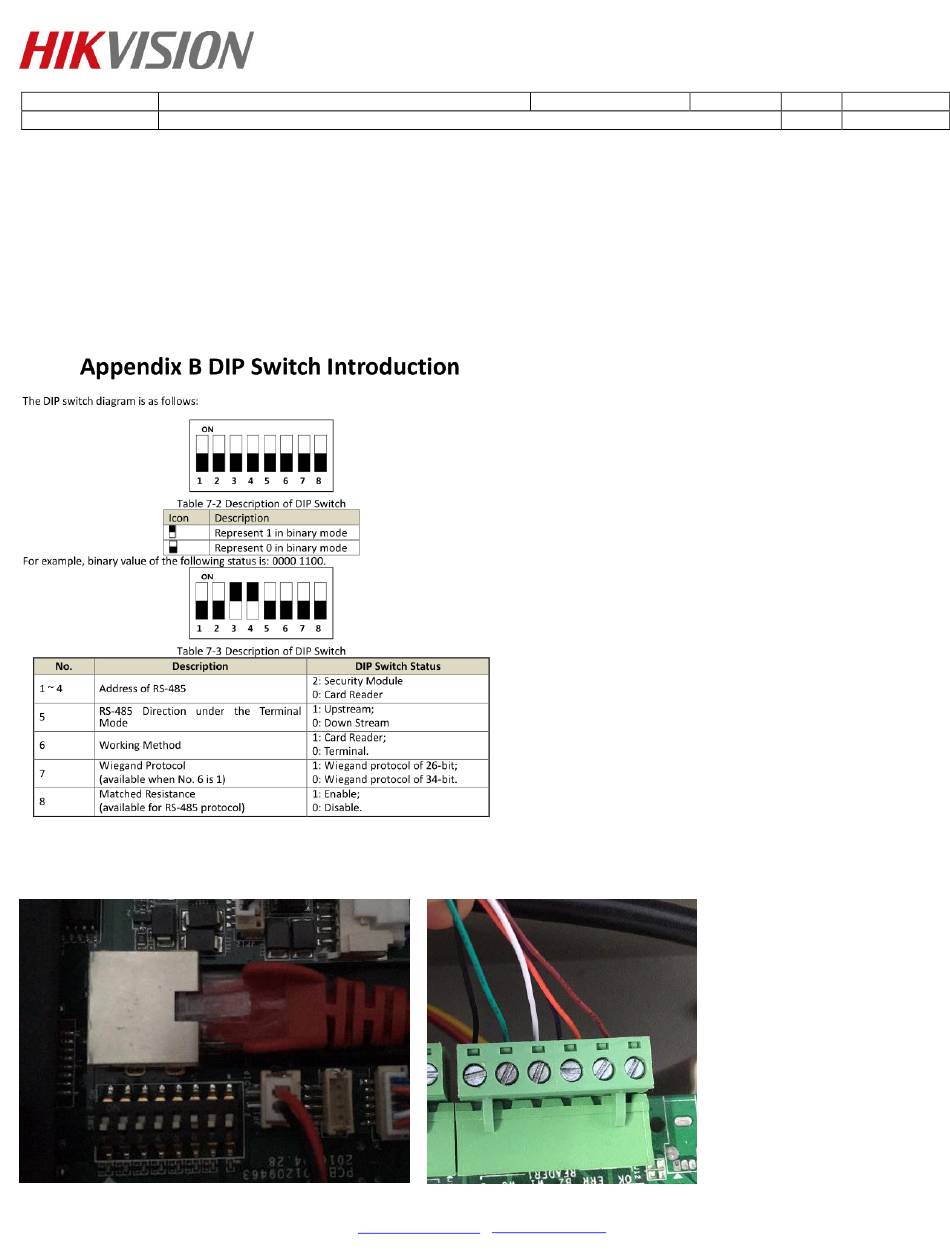

Step1: Set dip switch for K1T501SF(instruction available on User manual)
For example, if K1T501SF use as wiegand reader1(control K2604 lock1 entrance), follow front picture
Set dip switch 6 (work as card reader) as ON status. Connect device to controller via wiegand(W0,W1,GND)
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788
DS-K1T501 work as wiegand reader
© Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved.
E-Mail:
support@hikvision.com
Version:
www.hikvision.com
v1.0
Date:
10/31/2018
Page:
1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T501 and is the answer not in the manual?

Questions and answers

Summary of Contents for HIKVISION DS-K1T501

  • Page 1 Set dip switch 6 (work as card reader) as ON status. Connect device to controller via wiegand(W0,W1,GND) © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 2 3 beeps when verify failed. 2. When work in reader mode, device will not upload event to ivms4200 software. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 3 DS-K1T501 Page: 3 of 3 First Choice for Security Professionals HIKVISION Technical Support © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: • www.hikvision.com...
