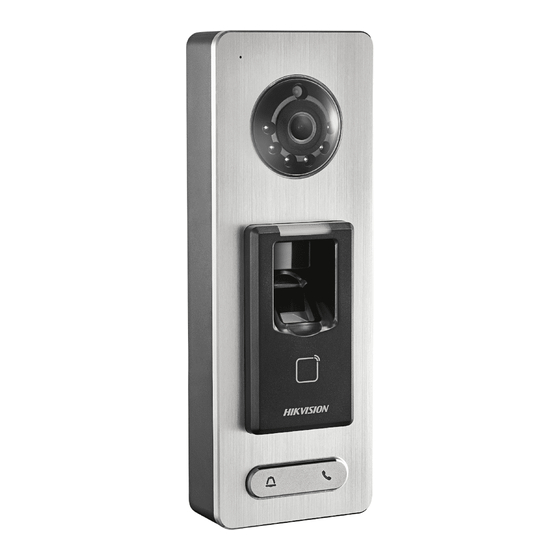

HIKVISION DS-K1T501SF Quick Start Manual

Video Access Control Terminal
Quick Start Guide
UD06874B-C
©2018 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software
embodied in the Product is governed by the user license agreement
covering that Product.
About this Manual
This Manual is subject to domestic and international copyright
protection. Hangzhou Hikvision Digital Technology Co., Ltd.
("Hikvision") reserves all rights to this manual. This manual cannot be
reproduced, changed, translated, or distributed, partially or wholly, by
any means, without the prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision
and are registered trademarks or the subject of applications for the
same by Hikvision and/or its affiliates. Other trademarks mentioned in
this manual are the properties of their respective owners. No right of
license is given to use such trademarks without express permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,
FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF
THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN
CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT
IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE
LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS
PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
1

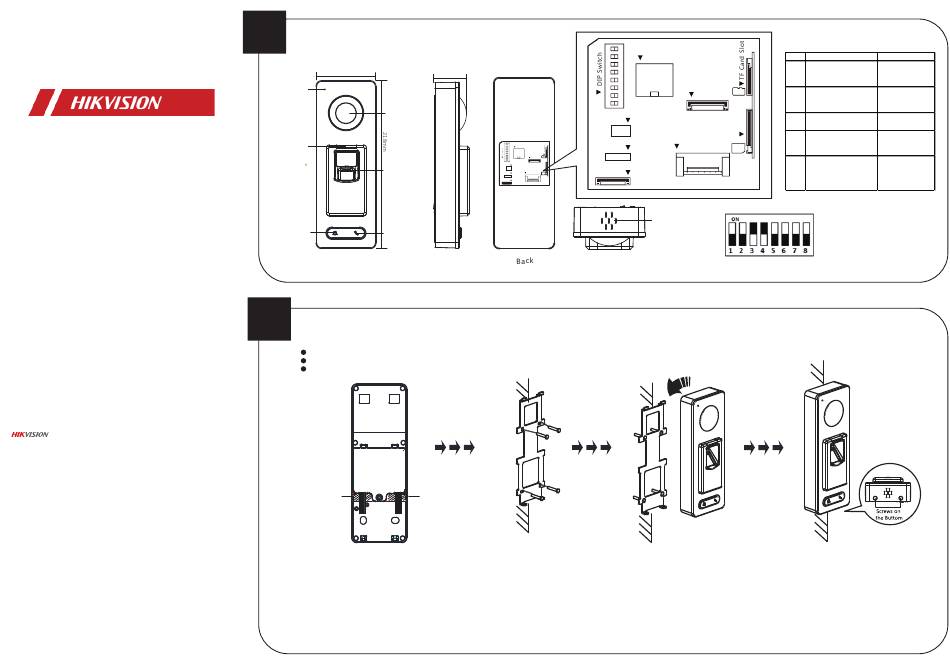

Appearance

78mm
Mic
Camera
LED
Indicator
Fingerprint
Scanner
and
Card Swiping
Area
Voice Talk
Doorbell
Button
Button
Front
2

Installation

Before You Start:

Make sure that the device in the package is in good condition and all the assembly parts are included.
Make sure that the wall is strong enough to withstand three times the weight of the terminal.
Set the DIP address before installation.
Cable Hole
Cable Hole
Plastic Sheet
Plastic Sheet
1. Connect the cables with the connector on the rear
panel of the device.
2. Route the cables through the cable hole of the
mounting plate. The cable holes are on the right
side, left side and lower side of the rear cover.
If the right/left side cable hole is selected, remove
the plastic sheet of the cable hole.
45.5mm
12V Power
Serial Port
Network
Wiegand
12 V Power
Micro SIM Card Slot Alarm
Door Lock and RS-485
Serial Port
Alarm
Left Bottom
3.Secure the mounting plate on
the wall with 4 supplied screws.
4.Connect the corresponding
cables.

DIP Switch

Network
No. Description
1 to 4 RS-485 Address
Wiegand
RS-485 Direction under
5
Terminal Mode
6 Work Method
Micro SIM Card Slot
Door Lock Wiegand Protocol
7
and RS-485 (Available when Bit 6 is 1)
Matched Resistance
8 (Available for RS-485
Protocol)
The DIP switch from left to right is
from low bit to the high bit.
Loud Speaker
If the switch is towards ON, it means
the binary value is 1, while OFF
means 0.
For Example, if the DIP switch is as
the picture shown on the left, the
binary value is 0000 1100, which
means the decimal value is 12.
5.Push the terminal in the 6.Tighten the screws on the
mounting plate from bottom up. bottom of the terminal to fix the
terminal on the mounting plate
and complete the installation.
DIP Switch Status
2: Secure Door
Control Unit
0: Card Reader
1: Upstream
0: Downstream
1: Card Reader
0: Terminal
1: Wiegand 26
0: Wiegand 34
1: Enable
0: Disable
