The Kingspan
Assembly option 1 - Tiger Clips # 364
ALL duct sections MUST be assembled with Tiger Clips or Adhesive

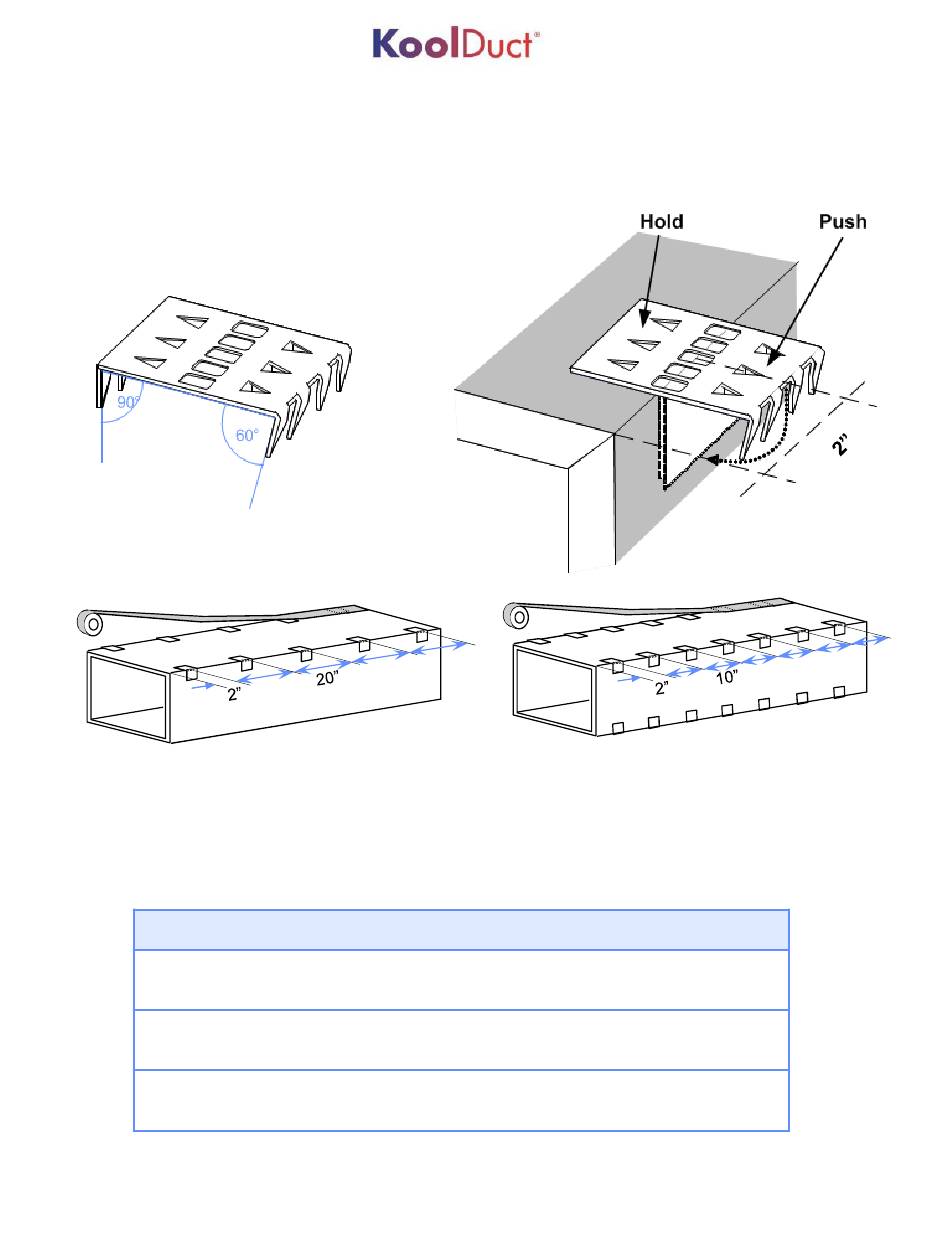

Example 1: Duct 18" x 12", at 2 in.w.g.
T. Closures only on the open mitred joints
Max spacing: 20"
Pressure
0 – 2 in.w.g.
(0 - 500 Pa)
>2 – 4 in.w.g
(501 - 1000 Pa)
Tiger Clips on folded mitre joints ONLY required if the alum. facing has cut or tears
MAXIMUM TIGER CLIPS SPACING
Straight Duct
Size
Any size
Any size
System
Example 2: Duct 18" x 12", at 4 in.w.g.
T. Closures on ALL the mitred joints
Max spacing: 10"
Max Spacing Application
20 inches Longitudinal
Seams Only
(500 mm)
10 inches Longitudinal
Seams Only
(250 mm)
