Basic KoolDuct Fabrication Procedure
1. TRACING
2. CUTTING
3. ASSEMBLY:
• with Tiger Clips (for pressure classes up to 1000 Pascal) or
• with Adhesive (for pressure classes up to 750 Pascal)
4. TAPING
5. REINFORCING
6. COUPLING/JOINING
7. SEALING: with KoolDuct Silicone sealant.
8. FABRICATION INSPECTION

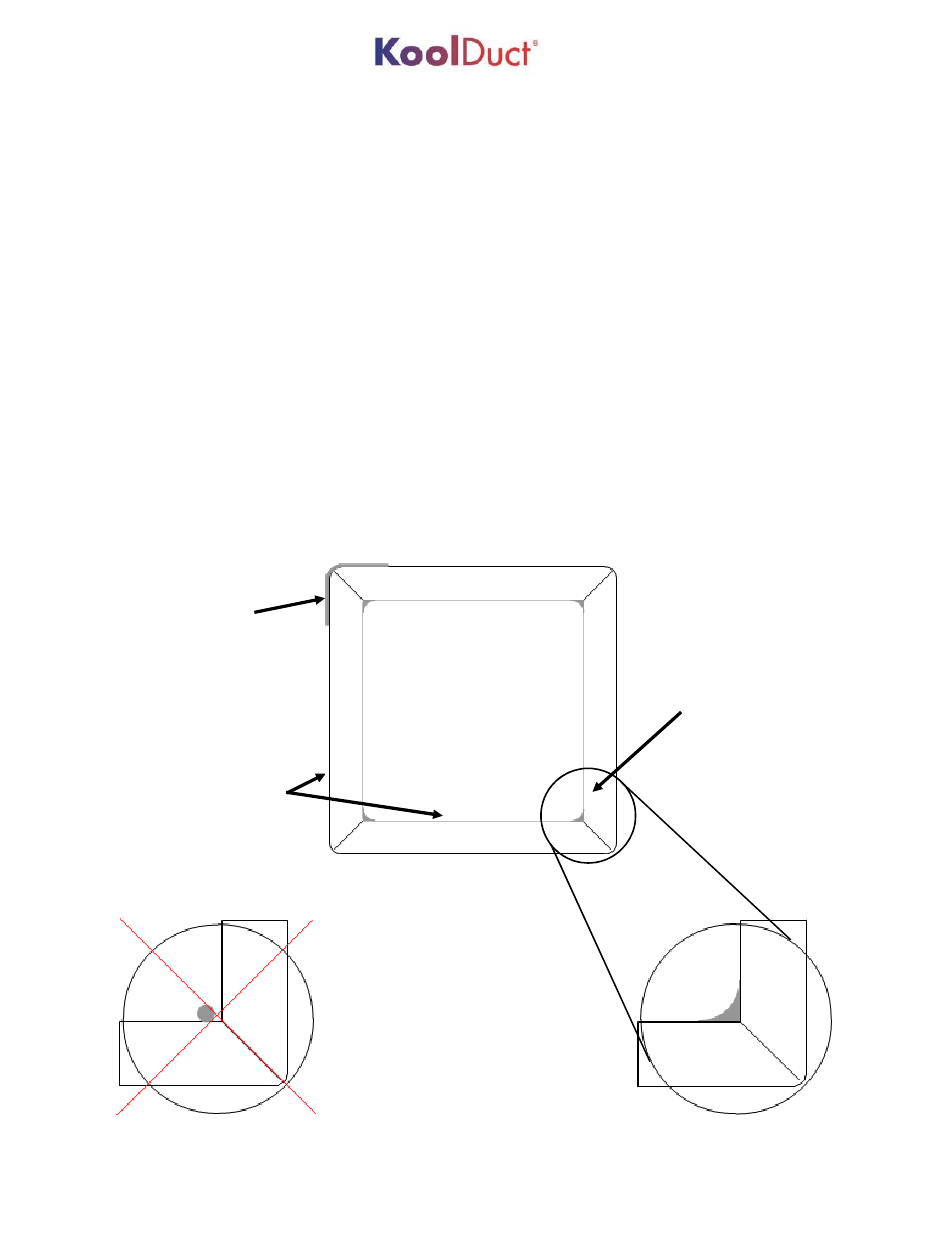

KoolDuct Section – End View
UL 181 A-P
Listed Aluminum
Tape at corners
where KoolDuct
foil has been
cut.
Factory applied
aluminum facings
on air stream and
exterior surfaces.
NO
System
continuous bead of
Kingspan approved
silicone placed in
ALL FOUR interior
joints extending for
full length of duct.
YES
Generous and
