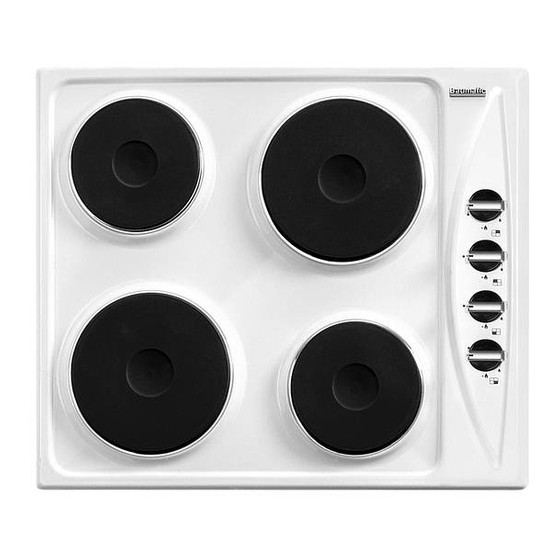

Baumatic B65SS Instruction Manual

4 solid plate electric hob
Hide thumbs Also See for B65SS:
Table of Contents

Advertisement

Quick Links

Download this manual
B54SS/B65SS/B65W
4 Solid plate electric
hob
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B65SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic B65SS

Summary of Contents for Baumatic B65SS

  • Page 1 B54SS/B65SS/B65W 4 Solid plate electric...
  • Page 2 User Manual for your Baumatic B54SS/B65SS/B65W 60cm 4 Solid plate electric hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Unpacking the appliance Installing the appliance 15 – 16 Electrical connection Connecting the mains supply cable 17 – 18 Replacing the mains supply cable 18 – 19 My appliance isn’t working correctly 19 – 20 Baumatic Ltd. Conditions of Guarantee Contact details...

  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface.
  • Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
  • Page 7 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.

  • Page 8: Specifications

    o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Height: 500 mm Height: 480 mm Width: 595 mm Width: 560 mm Depth: 40 mm Product specifications: o 2 x 2.00 kW thermostatic plates (diameter 180 mm) o 2 x 1.50 kW thermostatic plates (diameter 145 mm)

  • Page 9: Hob Surface Layout

    For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. Therefore it is a good idea to record this information before you install your appliance.

  • Page 10: Using The Hob

    Using the hob Before first use IMPORTANT: You should clean the hob surface and solid plates (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.

  • Page 11: Hob Guidelines

    Hob guidelines o The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. o The hob surface is fitted with cooking areas of different diametre and power.

  • Page 12: Cleaning And Maintenance

    DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning and maintenance operations must only be carried out when the oven is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process.

  • Page 13: Cleaning Table

    Using a specialist hob cleaner It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Maintaining the solid plates o If something is spilt onto the plate itself, then it can be removed using a soft brush, plastic or nylon scourer and warm water.

  • Page 14: Positioning

    Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing screws 4 Clamps 1 Sealing strip...

  • Page 15: Installing The Appliance

    Installing the appliance o Cut a hole in the worktop that corresponds with the drawings shown above. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
  • Page 16 o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. Sealing strip Clamp Screw o Place the clamp (B) over the holes that match the size of the screws.

  • Page 17: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.

  • Page 18: Replacing The Mains Supply Cable

    Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch.

  • Page 19: My Appliance Isn't Working Correctly

    IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Service Department on telephone number (0118) 933 6911. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
  • Page 20 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee document on page 21 of...

  • Page 21: Baumatic Ltd. Conditions Of Guarantee

    Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.

  • Page 22: Contact Details

    Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...
