Coffee Brewer: CBS-1221
User's Guide and Operator Instructions
CBS-1221 Plus Air Pot Brewer
FETCO Commercial Beverage Equipment
CBS-1221 Air Pot Brewer, shown with 2.2 liter Air Pot (sold separately)
Product Description
FETCO CBS-1221 brewer
Large metal brew basket
FETCO CBS-1221 brewer
Large plastic brew basket
FETCO CBS-1221 brewer
Standard metal brew basket
FETCO CBS-1221 brewer
Standard plastic brew basket
Ready to brew out of the box-factory calibrated for 2.2 liters
Simple, intuitive digital controls and programming
User configurable batch size and brew parameters
Supplied with 120V cord and plug.
User configurable to 240V/3.0kW/12.9A for direct connect
Front accessible with modular components & service friendly
Accepts 2.2, 2.5 liter, 3 liter and 3.8 liter air pots & 1.9L server
Self-cleaning spray head patented for mineralization resistance
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries)
FAX: (847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
fetco.com
techsupport@fetco.com (all service queries)
P194
Features
REV. 000
January 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBS-1221 Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fetco CBS-1221 Plus

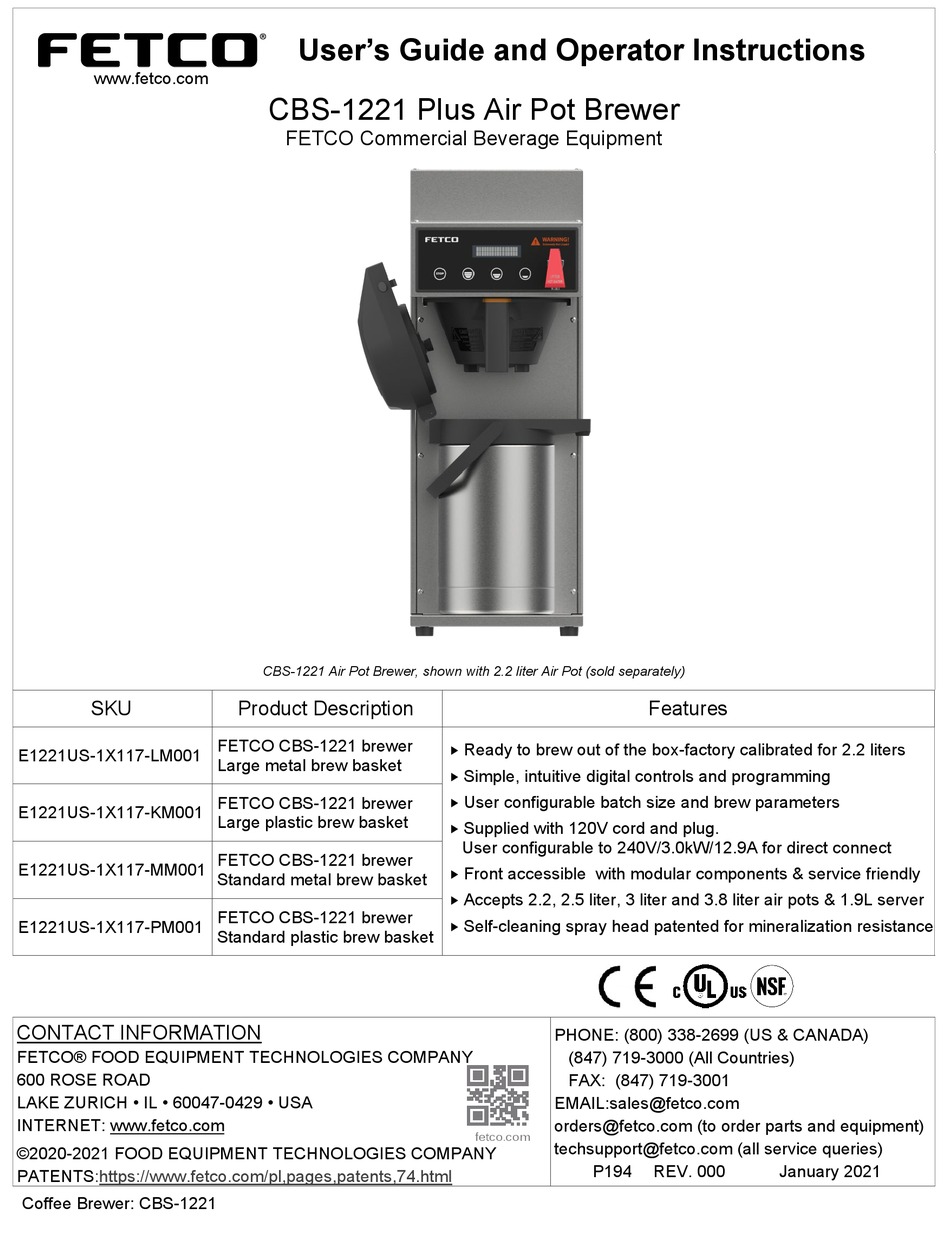

  • Page 1 User’s Guide and Operator Instructions www.fetco.com CBS-1221 Plus Air Pot Brewer FETCO Commercial Beverage Equipment CBS-1221 Air Pot Brewer, shown with 2.2 liter Air Pot (sold separately) Product Description Features FETCO CBS-1221 brewer Ready to brew out of the box-factory calibrated for 2.2 liters ...
